HP ALLBASE/4GL Developer Reference Manual Vol. 2

Process Header Screen

This screen allows you to name a process and enter a description for
documentation purposes.

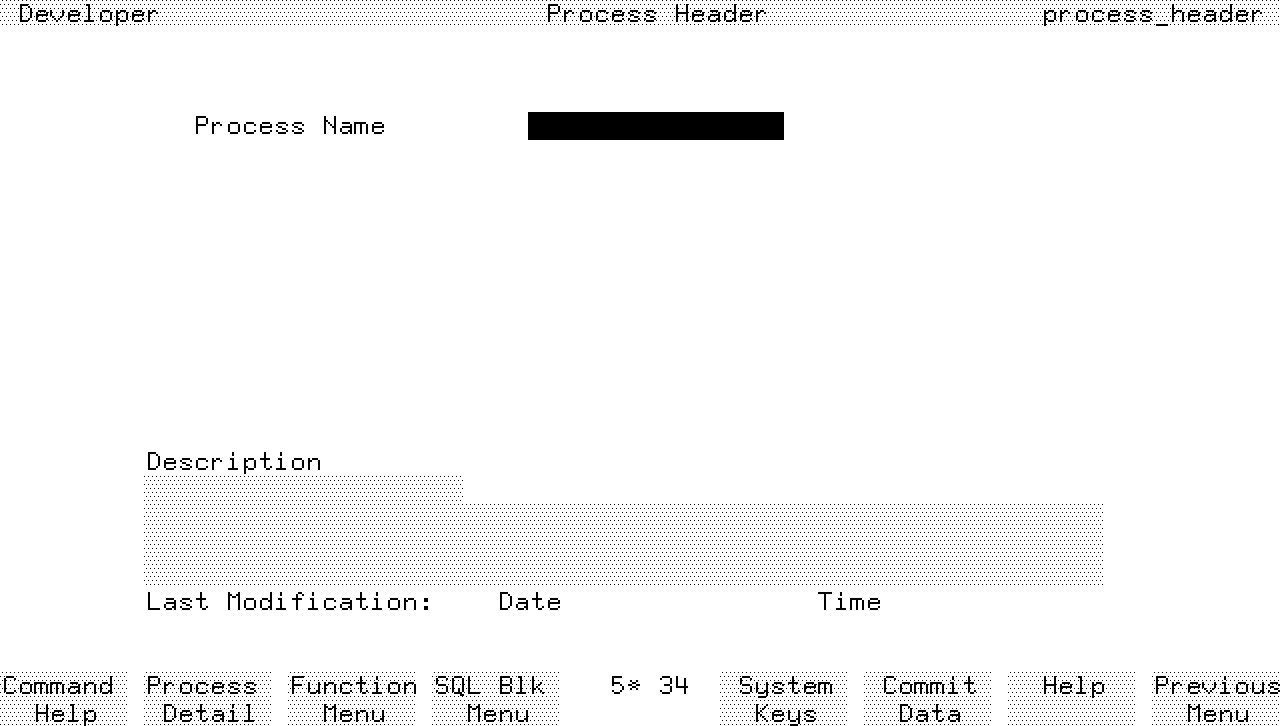

Screen Image




Field Descriptions

Process Name.  Enter the name of the process (up to 16 characters).

Description.  Documentation fields.  Enter a description of the process
for documentation purposes.  HP ALLBASE/4GL automatically updates the
date and time fields to show the date and time of the last modification.

Function Keys

f1       Command Help  Displays a series of help screens containing a
        summary of the HP ALLBASE/4GL logic commands.

f2       Process Detail  Cancels the current screen and displays the
        process details screen.

f3       Function Menu  Cancels the current screen and displays the
        functions menu.

f4       SQL Blk Menu  Cancels the current screen and displays the SQL
        logic block menu.
