Function Header Screen

This screen allows you to name a function and enter a description for
documentation purposes.

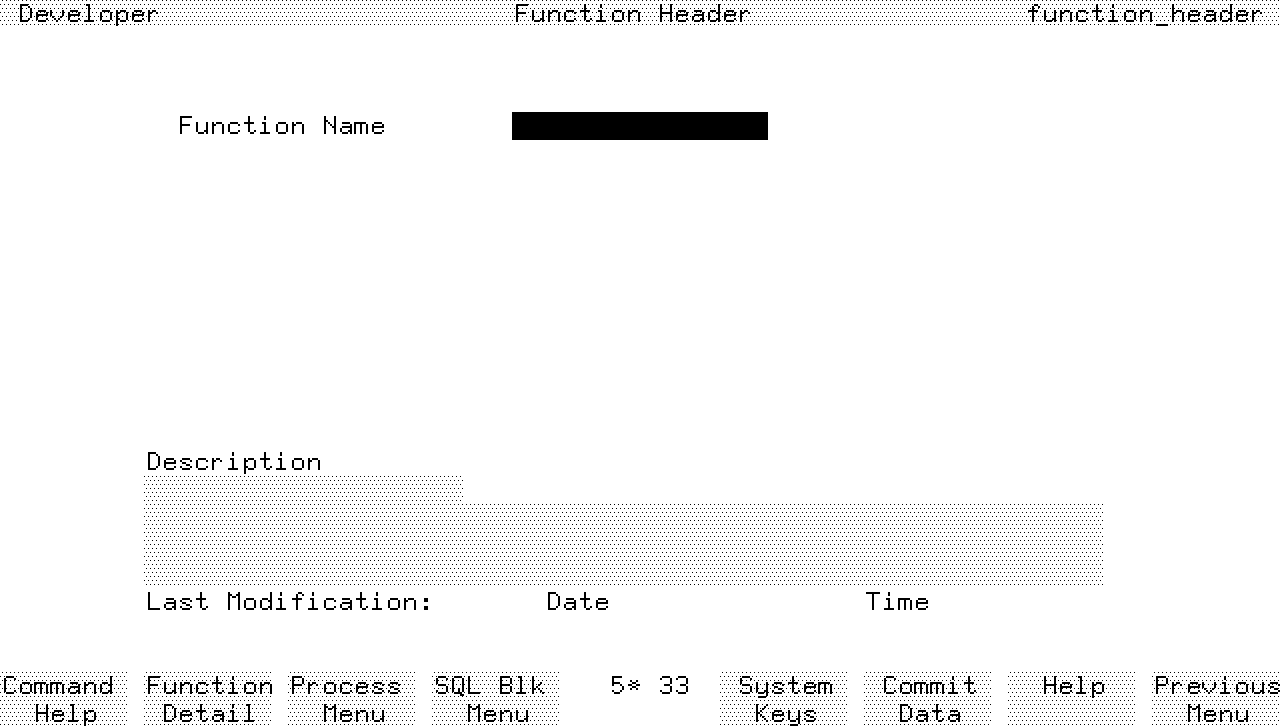

Screen Image




Field Descriptions

Function Name.  Enter the name of the function (up to 16 characters).

Description.  Documentation fields.  Enter a description of the function
for documentation purposes.  HP ALLBASE/4GL automatically updates the
date and time fields to show the date and time of the last modification.

Function Keys

f1       Command Help  Displays a series of help screens containing a
        summary of the HP ALLBASE/4GL logic commands.

f2       Function Detail  Cancels the current screen and displays the
        function detail screen.

f3       Process Menu  Cancels the current screen and displays the
        processes menu.

f4       SQL Blk Menu  Cancels the current screen and displays the SQL
        logic block menu.
