HP ALLBASE/4GL Developer Self-Paced Training Guide

Defining Decision Table Actions

Menu Path

To access the Decision Table Actions Screen:

   1.  From the main menu, select the Logic option.

   2.  Select the Decision Tables options.

   3.  Choose Actions.

Screen Description

This screen allows you to specify up to eight actions to be performed as
a result of the resolution of the decision table questions.

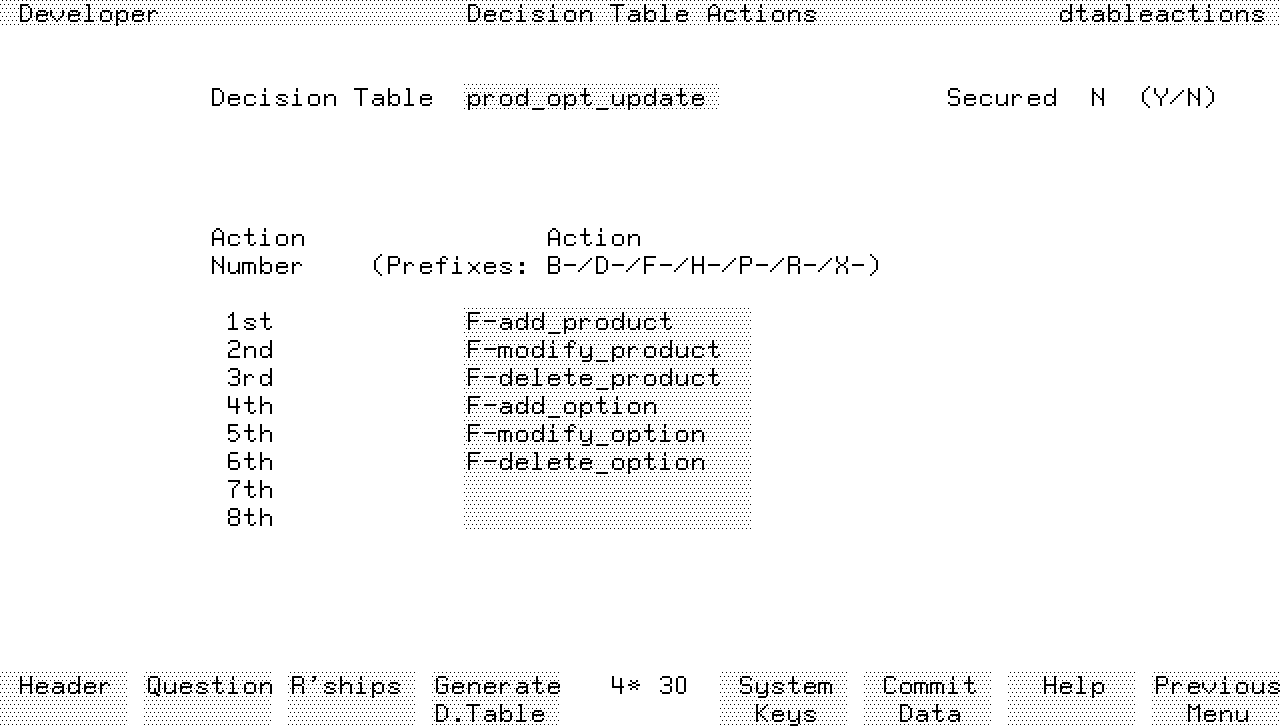

          Decision Table Actions Screen

To enter the field values:

   1.  Make the entries listed in the table below.

        Field                 Entry                         Explanation

---------------------------------------------------------------------------------------

Decision Table Name   Press Return          This field defaults to the name used in the
                                            last decision table screen.  In this case,
                                            it defaults to prod_opt_update from the
                                            decision table questions screen.

Actions                                     The next eight fields contain the type and
                                            name of the action to be performed for the
                                            particular action number.

1st                   F-add_product         This indicates that action number 1 is the
                                            add_product function.  The F- prefix
                                            indicates that the action is a function.

2nd                   F-modify_product

3rd                   F-delete_product

4th                   F-add_option

5th                   F-modify_option

   2.  Press the  Commit Data  function key when you have finished these
       entries.
