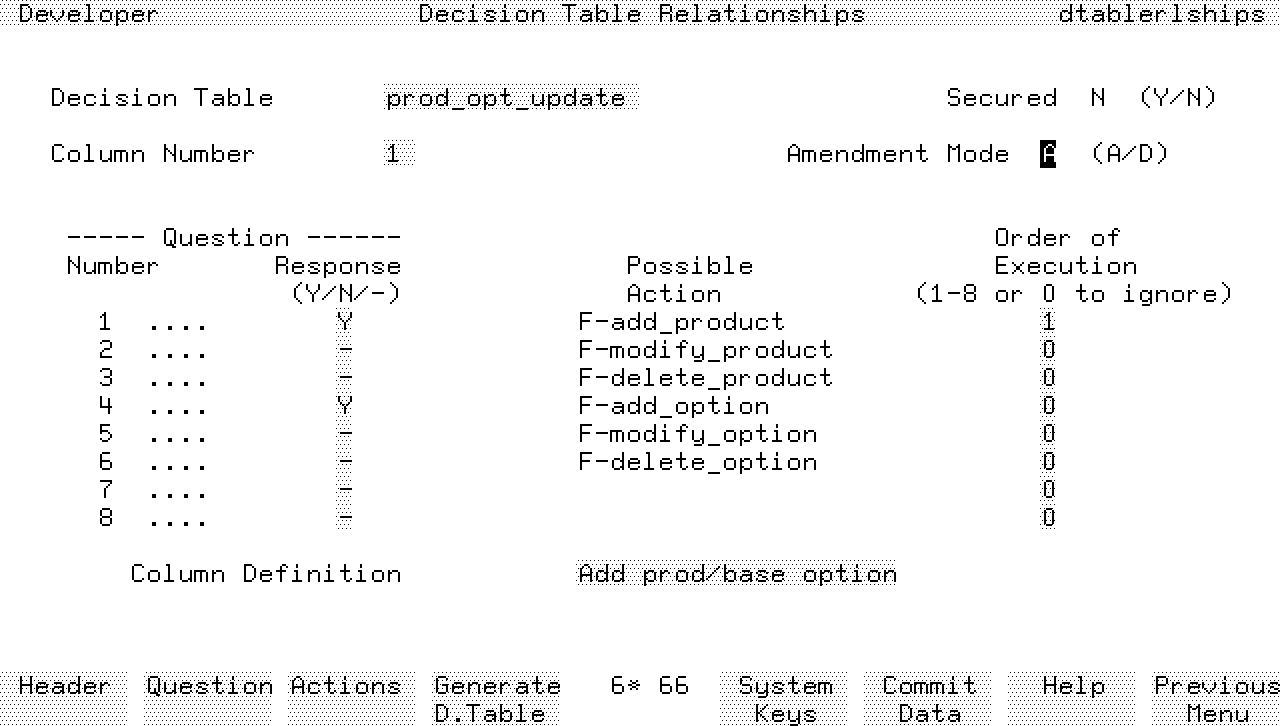

Defining Decision Table Relationships Menu Path To access the Decision Table Relationships screen: 1. From the main menu, select the Logic option. 2. Select the Decision Tables option. 3. Choose Relationships. Screen Description This screen allows you to connect the various decision table components together. It allows you to define the combinations of questions that result in certain actions being executed. It contains a series of Yes, No, or Don't Care responses to the questions and an ordered list of the actions to be performed if those results occur.Decision Table Relationships Screen To enter the field values: 1. Make the entries on the screen as shown in the table below: Field Entry Explanation --------------------------------------------------------------------------------------- Decision Table Name Press Return This field defaults to prod_opt_update, the name used in the last decision table screen. Table 10-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- Column Number Accept the default. This is the number of the column or set of relationships that you are about to define. You can define up to 31 columns. Amendment Mode Accept the default. The entry for this field allows you to choose what you want to do with this particular column, A = add or amend, and D = delete. Questions Make the entries The first column of fields (Number column) listed below. refers to the questions defined on the decision tables questions screen. They are Number - Response numbered in the same order as they were defined. The second column of fields 1...........Y (Response column) refers to the answers to the questions. The responses default to -. 2...........- This means that the outcome of the question has no bearing on the column. 3...........- If you enter Y the question must be 4...........Y resolved as true for the column to be valid. If you enter N the question must be 5...........- resolved as false for the column to be valid. All eight criteria must be met for 6...........- the column to be valid. 7...........- This column is resolved as true when both V-mode is equal to C-add and 8...........- V-current_record is equal to C-product. This is effectively stating that a product record must be added. Field Entry Explanation --------------------------------------------------------------------------------------- Actions Complete the column as listed. This column specifies the actions that are to be performed, and the order in which they are performed. A set of display Action - Order of Exec. fields show the names of the actions you have already defined. F-add_product.......1 The column to the right (Order of F-modify_product....0 Execution) initially defaults to all 0s. The default (0) means don't do this action. F-delete_product....0 The numbers specified next to the action indicate which actions are executed if the F-add_option........0 column resolves as true, and also indicate the order in which the actions are F-modify_option..... 0 performed if more than action one is executed. F-delete_option..... 0 The numbers you specify must be contiguous ..................... 0 and a number cannot occur more than once. For example, 10204000 is not valid as the 3 ......................0 is missing. It should read 10203000. Similarly, the entry 00220104 is not valid as the 2 appears twice. It should be either 00230104 or 00320104. This relationship executes the add_product function if the column is resolved as true. Column Add prod/base option This is a comment field that allows you to Definition enter a description of what the column does. It has no operational effect. 2. When you have entered all of the data, press the Commit Data function key. To complete the remaining columns for the decision table: There are five more columns to be created for this decision table. 1. Complete the columns as shown. a. Column 2 Question Response Action Order 1 Y F-add_product 0 2 - F-modify_product 0 3 - F-delete_product 0 4 - F-add_option 1 5 Y F-modify_option 0 6 - F-delete_option 0 7 - 0 8 - 0 Column Definition: Add the Option b. Column 3 Question Response Action Order 1 - F-add_product 0 2 Y F-modify_product 1 3 - F-delete_product 0 4 Y F-add_option 0 5 - F-modify_option 0 6 - F-delete_option 0 7 - 0 8 - 0 Column Definition: Modify the Product c. Column 4 Question Response Action Order 1 - F-add_product 0 2 Y F-modify_product 0 3 - F-delete_product 0 4 - F-add_option 0 5 Y F-modify_option 1 6 - F-delete_option 0 7 - 0 8 - 0 Column Definition: Modify the Option d. Column 5 Question Response Action Order 1 - F-add_product 0 2 - F-modify_product 0 3 Y F-delete_product 1 4 Y F-add_option 0 5 - F-modify_option 0 6 - F-delete_option 0 7 - 0 8 - 0 Column Definition: Delete the Product e. Column 6 Question Response Action Order 1 - F-add_product 0 2 - F-modify_product 0 3 Y F-delete_product 0 4 - F-add_option 0 5 Y F-modify_option 0 6 - F-delete_option 1 7 - 0 8 - 0 Column Definition Delete the Option This completes the definition of the decision table. 2. Generate the decision table by pressing the Generate D.Table function key on the decision table relationships screen. You have now created most of the necessary dictionary items, data screens, functions and processes to drive the application. Testing the Modified Application There are a number of further items that you need to create before the application is complete. The remaining items are the file update functions (the logic blocks that actually add, modify, and delete records in the appropriate files), the scrolling functions, some messages, and a report. However, you can now test part of the application if you wish. You can select any of the modes on the main menu and display the product screen. Since you haven't created the file updating functions yet, you won't be able to perform any valid operations on the files.
![[]](../../pic3k/M012318/FFN883c50.gif)
