HP ALLBASE/4GL Developer Self-Paced Training Guide

Decision Table Questions

Menu Path

To acess the Decision Table Questions Screen

   1.  From the main menu, select the Logic option.

   2.  Select the Decision Tables option.

   3.  Choose Questions.

Screen Description

This screen allows you to enter up to eight separate IF statements.
These are the questions to be resolved when the decision table is
executed.

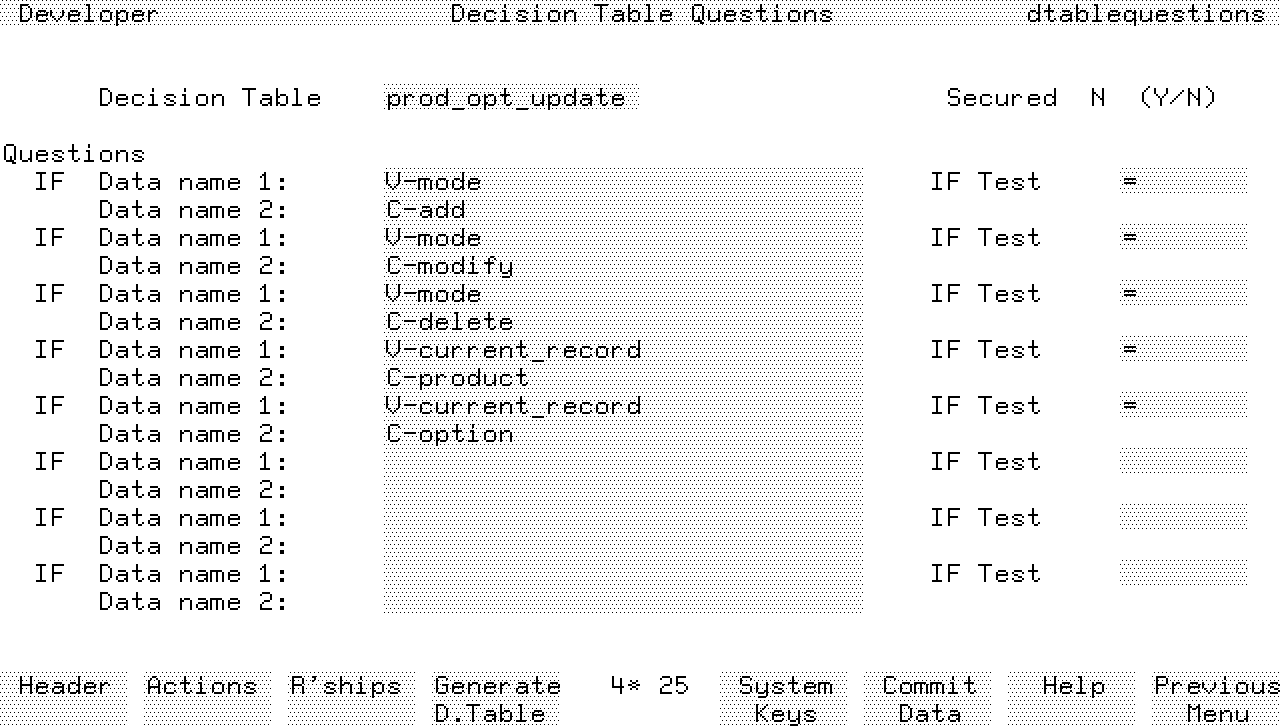

          Decision Table Questions Screen

To enter the field values:

        Field                 Entry                         Explanation

---------------------------------------------------------------------------------------

Decision Table Name   Press Return          This field defaults to the name used in the
                                            last decision table screen.  In this case,
                                            it defaults to prod_opt_update from the
                                            decision table header screen.

Questions                                   The remainder of this screen contains eight
                                            sets of three fields.  The fields are IF
                                            Data name 1, IF Test, and Data name 2.
                                            Each set of three fields specifies a
                                            question to be resolved.

Data name 1           V-mode                This is the name of the first data item
                                            that is to be tested.  The rules for the
                                            construction of an IF statement in a
                                            decision table are the same as those for
                                            the construction of an IF statement in a
                                            logic block.

IF Test               =                     This is the relationship that must exist
                                            between the two named fields.  (A decision
                                            table question can also test the status of
                                            a single item.  For example, the test can
                                            be *BLANK.)

Data name 2           C-add                 This is the name of the data item that the
                                            first data item is tested against.  In this
                                            case it is the alphanumeric constant add.

The first question is now complete.

To complete the screen:

Enter the remaining four questions as shown below:

   1.  Question 2

       Data Name 1         V-mode
       IF Test             =
       Data Name 2         C-modify

   2.  Question 3

       Data Name 1         V-mode
       IF Test             =
       Data Name 2         C-delete

   3.  Question 4

       Data Name 1         V-current_record
       IF Test             =
       Data Name 2         C-product

   4.  Question 5

       Data Name 1         V-current_record
       IF Test             =
       Data Name 2         C-option

   5.  Press the  Commit Data  function key when you have completed these
       entries.
