HP ALLBASE/4GL Developer Self-Paced Training Guide

Defining the Decision Table Header

You must define a decision table header before you can access any other
parts of the decision table.

Menu Path

To access the decision table header screen:

   1.  From the main menu, select the Logic option.

   2.  Select the Decision Tables option.

   3.  Choose Header.

Screen Description

This screen allows you to enter brief details about the decision table.

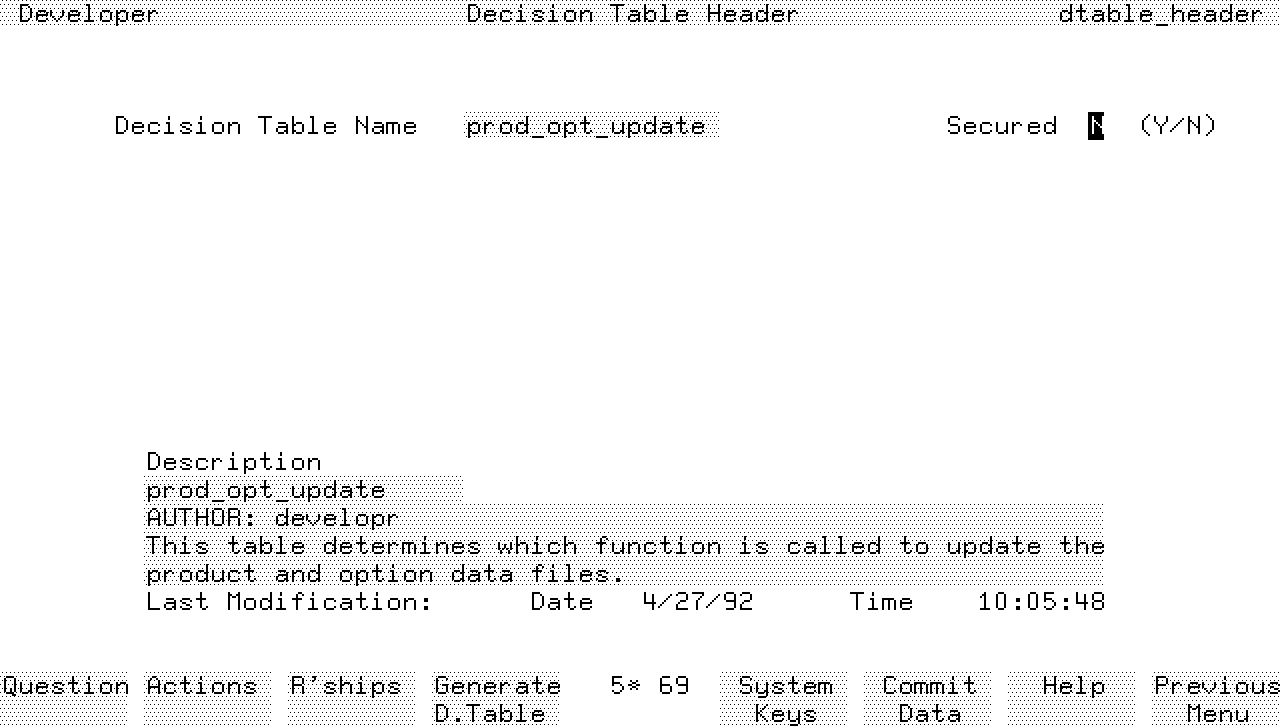

          Decision Table Header Screen

To enter the field values:

   1.  Make the screen entries indicated in the table below.

        Field                 Entry                         Explanation

---------------------------------------------------------------------------------------

Decision Table Name   prod_opt_update       This is the name of the decision table.

Secured               Accept the default.   This indicates whether the decision table
                                            is secured against modification by an
                                            unauthorized developer.

Description           Enter a suitable
                      description.

   2.  Press the  Commit Data  function key to create the header for the
       decision table.
