Node Management Services automatically format logging records sent to the
console. Logging records sent to a disk file are stored in coded form. These
records are decoded and formatted by the NMS Trace/Log File Analyzer (NMDUMP),
an NMS system utility program. Figure 21-1
"Formatted Log Record" shows a typical log record formatted by NMDUMP.
To learn how to use NMDUMP see the Log and Trace Files
section in Using the Node Management Services (NMS) Utilities manual.

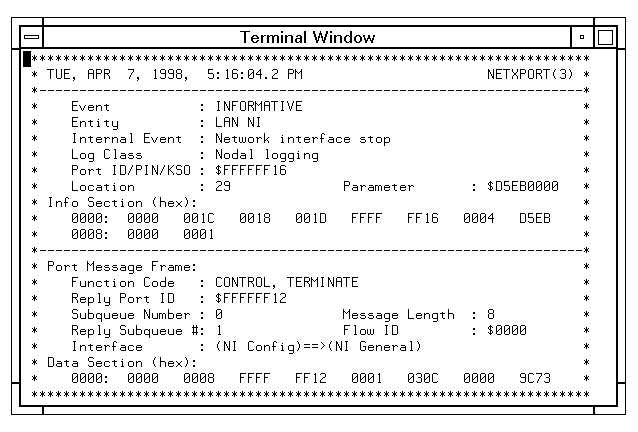

Figure 21-1 Formatted Log Record
Log files and two examples of the information returned in a formatted log file
are explained in "Using Log Files" later in this section.
|
