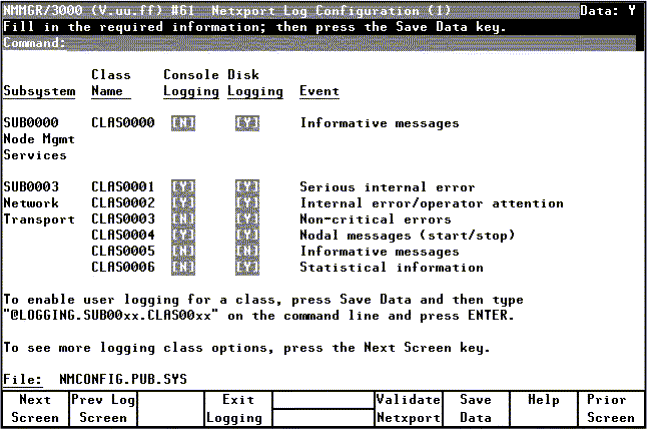

The Netxport Log Configuration (1) screen (#61) in
Figure 13-2 "Netxport Log Configuration (1)
Screen" is displayed when you press the [Modify Logging] function
key at the Network Transport Configuration screen.
Figure 13-2 Netxport Log Configuration (1) Screen
Use the fields and the function keys of the screen to configure logging for the
subsystems represented on the screen. If the subsystem for which you want to
enable logging does not appear on the first screen, press the
[Next Screen] function key to go to the next Netxport Log Configuration
screen. There are a total of six logging configuration screens.
Enable or disable logging classes (or accept HP-recommended defaults). Press
the [Save Data] key on each screen to create or modify the data record.
Verify that the data record has been created by checking that the Data flag is
Y.
Fields
Console Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to the system console. A value must be entered for each subsystem and
class listed. A Y (yes) enables logging to the console,
N (no) disables logging to the console.
Disk Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to a disk file. A value must be entered for each subsystem and class
listed. A Y (yes) enables logging to a file, N (no)
disables logging to a file. The file name for the log file is
NMLGnnnn.PUB.SYS, where nnnn is a number
from 0000 to 9999. All logging classes in
all subsystems are logged to this file. At each system startup, or when a
file is full, the node management services subsystem (NMS) creates a new
NMLGnnnn.PUB.SYS file, naming each successive logging
file by incrementing nnnn. When
NMLG9999.PUB.SYS is full, NMS names the next logging file
NMLG0000.PUB.SYS.

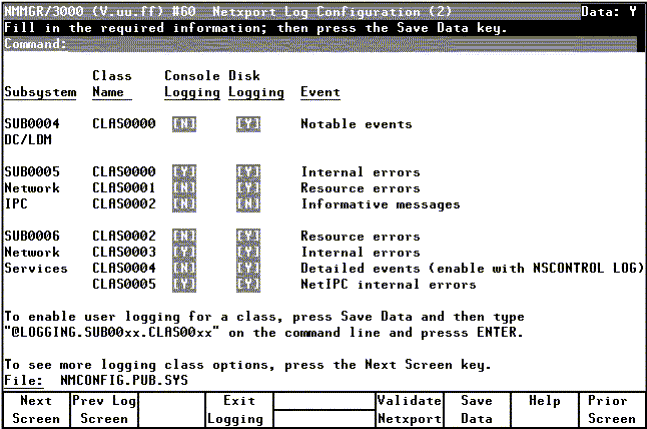

The Netxport Log Configuration (2) screen (#60) in
Figure 13-3 "Netxport Log Configuration (2)
Screen" is displayed when you press the [Next Screen] function key
from the Netxport Log Configuration (1) screen (#61) in
Figure 13-2 "Netxport Log Configuration (1)
Screen".
Figure 13-3 Netxport Log Configuration (2) Screen
Use the fields and the function keys of the screen to configure logging for the
subsystems represented on the screen. If the subsystem for which you want to
enable logging does not appear on this screen, press the [Next Screen]
function key to go to the next Netxport Log Configuration screen. There are a
total of six logging configuration screens.
Enable or disable logging classes (or accept HP-recommended defaults). Press
the [Save Data] key on each screen to create or modify the data record.
Verify that the data record has been created by checking that the Data flag is
Y.
Fields
Console Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to the system console. A value must be entered for each subsystem and
class listed. A Y (yes) enables logging to the console,
N (no) disables logging to the console.
Disk Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to a disk file. A value must be entered for each subsystem and class
listed. A Y (yes) enables logging to a file, N (no)
disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS, where nnnn is a number
from 0000 to 9999. All logging classes in
all subsystems are logged to this file. At each system startup, or when a
file is full, NMS creates a new NMLGnnnn.PUB.SYS file,
naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS is full, NMS names the next logging
file NMLG0000.PUB.SYS.

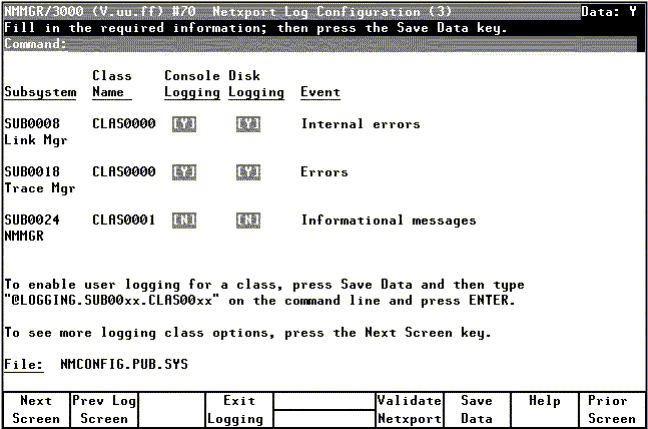

The Netxport Log Configuration (3) screen (#70) in
Figure 13-4 "Netxport Log Configuration (3)
Screen" is displayed when you press the [Next Screen] function key
from the Netxport Log Configuration (2) screen (#60) in
Figure 13-3 "Netxport Log Configuration (2)
Screen".
Figure 13-4 Netxport Log Configuration (3) Screen
Use the fields and the function keys of the screen to configure logging for the
subsystems represented on the screen. If the subsystem for which you want to
enable logging does not appear on this screen, press the [Next Screen]
function key to go to the next Netxport Log Configuration screen. There are a
total of six logging configuration screens.
Enable or disable logging classes (or accept HP-recommended defaults). Press
the [Save Data] key on each screen to create or modify the data record.
Verify that the data record has been created by checking that the Data flag is
Y.
Fields
Console Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to the system console. A value must be entered for each subsystem and
class listed. A Y (yes) enables logging to the console,
N (no) disables logging to the console.
Disk Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to a disk file. A value must be entered for each subsystem and class
listed. A Y (yes) enables logging to a file, N (no)
disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS, where nnnn is a number
from 0000 to 9999. All logging classes in
all subsystems are logged to this file. At each system startup, or when a
file is full, NMS creates a new NMLGnnnn.PUB.SYS file,
naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS is full, NMS names the next logging
file NMLG0000.PUB.SYS.

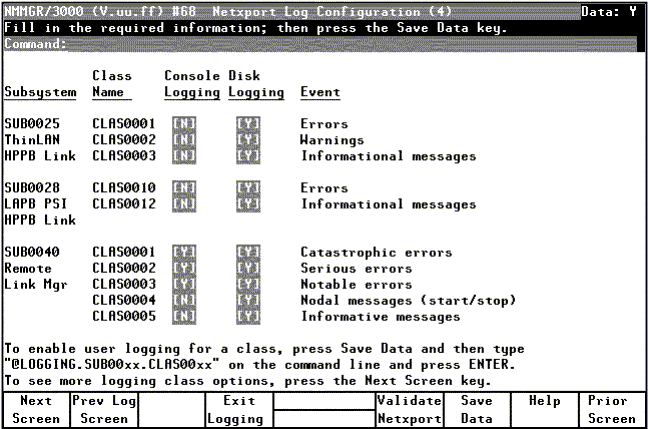

The Netxport Log Configuration (4) screen (#68) in
Figure 13-5 "Netxport Log Configuration (4)
Screen" is displayed when you press the [Next Screen] function key
from the Netxport Log Configuration (3) screen (#70) in
Figure 13-4 "Netxport Log Configuration (3)
Screen".
Figure 13-5 Netxport Log Configuration (4) Screen
Use the fields and the function keys of the screen to configure logging for the
subsystems represented on the screen. If the subsystem for which you want to
enable logging does not appear on this screen, press the [Next Screen]
function key to go to the next Netxport Log Configuration screen. There are a
total of six logging configuration screens.
Enable or disable logging classes (or accept HP-recommended defaults). Press
the [Save Data] key on each screen to create or modify the data record.
Verify that the data record has been created by checking that the Data flag is
Y.
Press the [Exit Logging] function key when you have finished modifying
the logging configuration.
Fields
Console Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to the system console. A value must be entered for each subsystem and
class listed. A Y (yes) enables logging to the console,
N (no) disables logging to the console.
Disk Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to a disk file. A value must be entered for each subsystem and class
listed. A Y (yes) enables logging to a file, N (no)
disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS, where nnnn is a number
from 0000 to 9999. All logging classes in
all subsystems are logged to this file. At each system startup, or when a
file is full, NMS creates a new NMLGnnnn.PUB.SYS file,
naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS is full, NMS names the next logging
file NMLG0000.PUB.SYS.

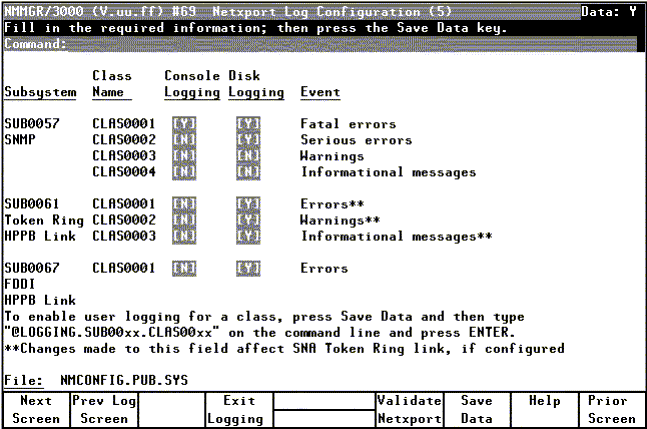

The Netxport Log Configuration (5) screen (#69) in
Figure 13-6 "Netxport Log Configuration (5)
Screen" is displayed when you press the [Next Screen] function key
from the Netxport Log Configuration (4) screen (#68) in
Figure 13-5 "Netxport Log Configuration (4)
Screen".
Figure 13-6 Netxport Log Configuration (5) Screen
Use the fields and the function keys of the screen to configure logging for the
subsystems represented on the screen. If the subsystem for which you want to
enable logging does not appear on this screen, press the [Next Screen]
function key to go to the next Netxport Log Configuration screen. There are a
total of six logging configuration screens.
Enable or disable logging classes (or accept HP-recommended defaults). Press
the [Save Data] key on each screen to create or modify the data record.
Verify that the data record has been created by checking that the Data flag is
Y.
Press the [Exit Logging] function key when you have
finished modifying the logging configuration.
Fields
Console Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to the system console. A value must be entered for each subsystem and
class listed. A Y (yes) enables logging to the console,
N (no) disables logging to the console.
Disk Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to a disk file. A value must be entered for each subsystem and class
listed. A Y (yes) enables logging to a file, N (no)
disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS, where nnnn is a number from
0000 to 9999. All logging classes in all
subsystems are logged to this file. At each system startup, or when a
file is full, NMS creates a new NMLGnnnn.PUB.SYS file,
naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS is full, NMS names the next logging
file NMLG0000.PUB.SYS.

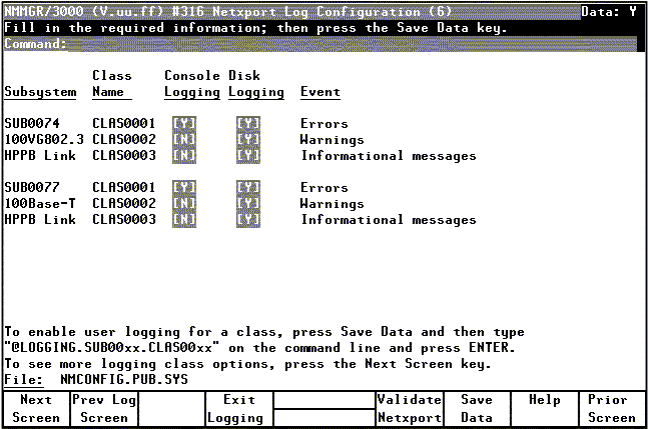

The Netxport Log Configuration (6) screen (#316) in
Figure 13-7 "Netxport Log Configuration (6)
Screen" is displayed when you press the [Next Screen] function key
from the Netxport Log Configuration (5) screen (#69) in
Figure 13-6 "Netxport Log Configuration (5)
Screen".
Figure 13-7 Netxport Log Configuration (6) Screen
Use the fields and the function keys of the screen to configure logging for the
subsystems represented on the screen. If the subsystem for which you want to
enable logging does not appear on this screen, press the [Next Screen]
function key to go to the next Netxport Log Configuration screen. There are a
total of seven logging configuration screens.
Fields
Enable or disable logging classes (or accept HP-recommended defaults). Press
the [Save Data] key on each screen to create or modify the data record.
Verify that the data record has been created by checking that the Data flag is
Y.
Console Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to the system console. A value must be entered for each subsystem and
class listed. A Y (yes) enables logging to the console,
N (no) disables logging to the console.
Disk Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to a disk file. A value must be entered for each subsystem and class
listed. A Y (yes) enables logging to a file, N (no)
disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS, where nnnn is a number
from 0000 to 9999. All logging classes in
all subsystems are logged to this file. At each system startup, or when a
file is full, NMS creates a new NMLGnnnn.PUB.SYS file,
naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS is full, NMS names the next logging
file NMLG0000.PUB.SYS.
The Netxport Log Configuration (7) screen (#353) in
Figure 13-8 "Netxport Log Configuration (7)
Screen" is displayed when you press the [Next Screen] function key
from the Netxport Log Configuration (6) screen (#316) in
Figure 13-7 "Netxport Log Configuration (6)
Screen".

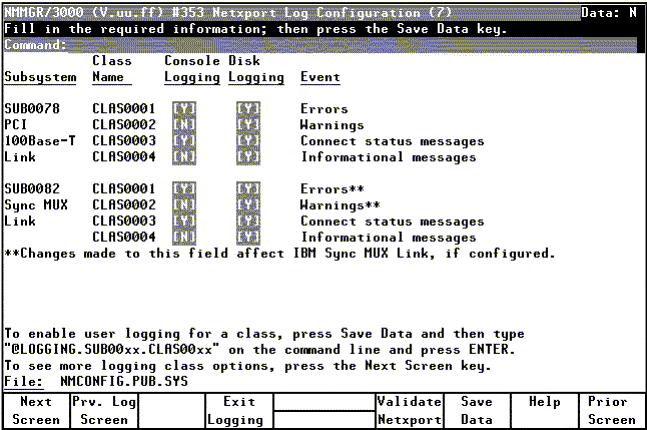

Figure 13-8 Netxport Log Configuration (7) Screen
Use the fields and function keys of the screen to configure logging for the
subsystems represented on the screen. The subsystems 78 (PCI 100Base-T) and 82
(Sync MUX link) can be configured from this screen.
Fields
Enable or disable logging classes (or accept HP-recommended defaults). Press
the [Save Data] key on each screen to create or modify the data record.
Verify that the data record has been created by checking that the Data flag is
Y.
Console Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to the system console. A value must be entered for each subsystem and
class listed. A Y (yes) enables logging to the console,
N (no) disables logging to the console.
Disk Logging
The value entered in this field specifies whether or not logging
events for the subsystem and class listed beside the field will be logged
to a disk file. A value must be entered for each subsystem and class
listed. A Y (yes) enables logging to a file, N (no)
disables logging to a file.
