The Network Directory Data screen (#10) in
Figure 11-5 "Network Directory Data" is
displayed when you press the [Add] or the [Modify] function key
at the Select Node Name screen (#9) in Figure
11-4 "Network Directory Select Node Name".

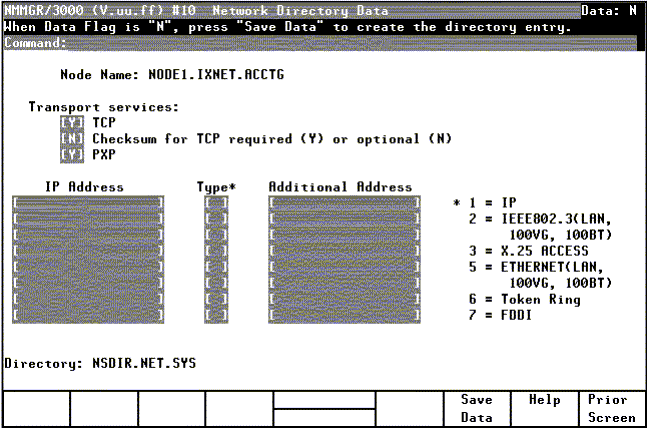

Figure 11-5 Network Directory Data
The function of this screen is to configure path report data
for the node name listed at the top of the screen. One path report
is configured for each NI on a node. Because the maximum number
of NIs per node is 48 (including loopback), each node can contain
as many as 47 path reports.
Verify that the yes and no indicators in the TCP,
Checksum for TCP required, and PXP fields are set
correctly.
In the IP address field, type in the IP address of the
node listed in the Node name field.
In the type field, enter the number that indicates the
type of the path:
1 = IP
2 = LAN/IEEE 802.3 (LAN, 100VG, 100BT)
3 = X.25 ACCESS
5 = ETHERNET (LAN 100VG, 100BT)
6 = Token Ring, 100VG/IEEE 802.5
7 = FDDI
If appropriate for the type of path you are configuring, enter an
address in the Additional Address field. (Type 1
requires no additional address. Types 2, 5, and
6 require a station address. Type 3 requires an
X.25 address key. See additional explanation under "Fields."
Press the [Save Data] key.
Repeat steps 2, 3, and 4 for each path report for the specified
node.
If you need to make additional entries in the network directory, press the
[Prior Screen] key to return to the Network Directory Select Node Name
screen. If you have finished making network directory entries, home the cursor
and type EXIT in the command field, then press [ENTER].
Fields
Transport services
These three fields describe the transport services that should be
configured in each path.
TCP
TCP must be Y (yes) for all nodes. The default is
Y.
Checksum for TCP
The checksum setting indicates whether checksumming is optional
(N) or required (Y) for TCP. If this field is set
to N, then the use of checksums is not requested when
communicating with this node. If this field is set to Y
then checksums are used when communicating with this node.
Checksumming is required for communication to non-HP systems. The
default is N.
PXP
PXP must be Y (yes) for all nodes. The default is
Y.
Note that the selection of transport services here must match the settings in
the remote node's configuration file. If the checksum enabled field in the path
NETXPORT.GPROT.TCP of this node is set to Y, then TCP
checksum field in the network directory should also be set to Y.
IP address
One IP address should be entered for each network interface
configured on the remote node that is directly reachable from this
node. Each address must match an IP address configured in the remote
node's configuration file. The path of the screen in the configuration
file that contains IP addresses is
NETXPORT.NI.NIname.PROTOCOL.IP.
Type
A number indicating the type of path to configure:
1
Select this path type when the NI type is ROUTER
(Point-to-Point); or when the NI type is LAN and the
destination node supports probe or ARP; or when the NI type is
TOKEN or FDDI and the destination node supports
ARP.
2
Select this path type when the NI type is LAN,
100VG-AnyLAN or 100Base-T, the destination node
does not support probe, and 802.3 framing is used.
3
Select this path type when the NI type is X25.
5
Select this path type when the NI type is LAN,
100VG-AnyLAN or 100Base-T, the destination node
does not support ARP or probe, and Ethernet framing is to be
used.
6
Select this path type when the NI type is TOKEN and the
destination node does not support ARP.
7
Select this path type when the NI type is FDDI and the
destination node does not support ARP.
Table 11-1 Path Type Configuration
N1 Type
Framing
Protocols
Type
Point-to-Point (Router)
N/A
N/A
1
LAN
802.3 and Ethernet
Either Probe or ARP
1
802.3 and Ethernet
Neither Probe nor ARP
5
802.3 only
Not Probe
2
Ethernet only
Not ARP
5
X.25
N/A
N/A
3
Token Ring
N/A
ARP
1
N/A
Not ARP
6
FDDI
N/A
ARP
1
N/A
Not ARP
7
Additional address
A lower-level address, which depends on the type.
Type 1 does not contain lower-level addressing information. You
can leave the field blank, or enter the keyword NONE.
Types 2, 5, 6, and 7 require the
destination node's station address, which is a string of six hexadecimal
bytes, separated by dashes (XX-XX-XX-XX-XX-XX). The station
address must correspond to the address configured on the remote node.
Type 3 requires an X.25 address key, which is an ASCII string of
up to 15 characters. The X.25 address key must correspond to an X.25
address key entered in the
NETXPORT.NI.NIname.PROTOCOL.X25.SVPATH or the
NETXPORT.NI.NIname.PROTOCOL.X25.PVCPATH screen for the
destination node.
