The Network Directory Main screen (#8) in
Figure 11-3 "Network Directory Main" is
displayed when you press the [Open Directry] function key at the Open
Configuration/Directory File screen (#1) in
Figure 11-2 "Open Configuration/Directory
File". This screen is also displayed if a network directory has already
been opened and you type NETDIR in the command window of any screen and
press the [Enter] key.

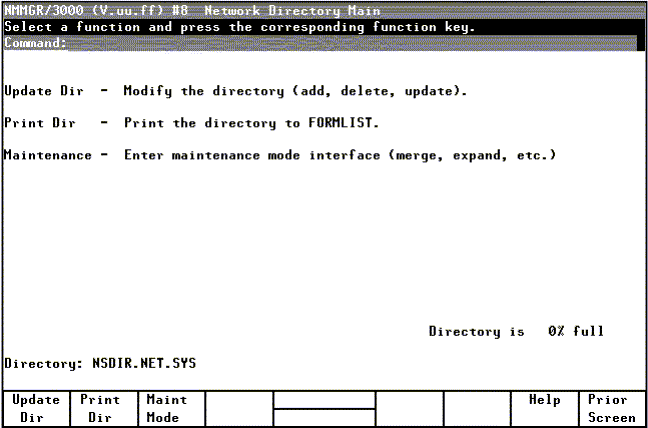

Figure 11-3 Network Directory Main
Press the [Update Dir] function key to modify the contents
of the directory by adding, deleting and updating node names and path
reports.
Function Keys
This screen is the main select screen from which all directory
functions are accessed. The currently opened directory is displayed
at the bottom of all network directory screens. The percentage of
the network directory that is full is shown in the lower right corner
of the screen.
Update Dir
Press this function key to go to the Network Directory Select Node
Name screen to add, delete, or modify network directory node name entries
and path reports.
Print Dir
Press this function key to print out a copy of the directory to formal
designator FORMLIST, device class LP. You can use a file
equation for FORMLIST to redirect the output to another device
class or disk file. To set a file equation without leaving NMMGR, enter
the appropriate MPE command in the command window and press the
[Enter] key.
Maint Mode
Press this function key to enter the command interface to perform
directory merging or to expand the size of your directory. See Using
the Node Management Services (NMS) Utilities for details on
maintenance mode.
Within the maintenance mode interface, command input is read from the
formal designator NMMGRCMD, which defaults to $STDINX. Type
EXIT and press the [Return] key to leave maintenance
mode.
