For each network in your internetwork, you are asked to draw
a map of the network and to complete two tables. One table lists
node-specific information, and one table lists network routing information.
You also are asked to complete worksheets for each gateway
half pair in your internetwork. The worksheets for a gateway half
pair consist of a map of the gateway half nodes and their connecting
link and a table containing information about the gateway half network
interfaces.

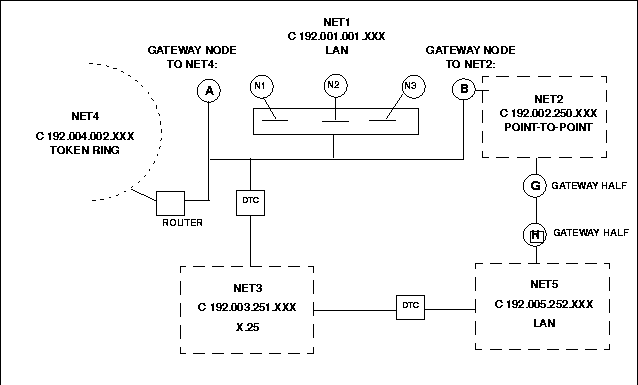

In the sample internetwork shown in Figure 3-1
"Internetwork Map", six sets of network worksheets need to be completed:
one set for each of the six networks and one set for the gateway half pair.
Take the following steps when filling out a set of network worksheets:
Draw your map, showing all nodes and node names. For
Point-to-Point networks, also show all Point-to-Point links and link
names.
Complete the two tables: for each network, for a gateway-half
pair, include the link name.
LAN Network Worksheets
One set of LAN network worksheets should be used for each
LAN in your internetwork. The LAN network worksheets consist of
a map of the LAN and two tables. One table contains information
about each node on the LAN and one table contains network-specific
internet routing information.
In this example, we have shown the network map and worksheet for NET1, one of
the LAN networks shown in Figure 3-1
"Internetwork Map".
Use the discussion of the sample LAN network worksheets as a guide
for filling out your own LAN network worksheets.
LAN Network Map
Figure 3-2 "LAN Network Map" is a drawing
of the network map for NET1. The network map is a detailed drawing of the same
network shown in the internetwork map (Figure
3-1 "Internetwork Map"). The network name, the IP network address, and the
network type are listed at the top of the network map.
In the example, the internetwork map shows that node B is
a gateway node. It is noted on the NET1 network map and shows the
network that the gateway node can reach. Node B is also a proxy
server. The remaining NET1 nodes and their names are added to the
network map.
Figure 3-2 LAN Network Map
LAN Network Table
Refer to the LAN network map to fill in the LAN network table
(Table 3-2 "LAN Network Table"). The first
column lists the names of all the nodes on NET1. Each node is assigned an IP
address that is unique within the network. Only the node portion of the IP
address is listed since the IP network address is noted at the top of the
table. In the third column of Table 3-2
"LAN Network Table", node B is shown as a proxy server. The fourth column
lists node B as a gateway node. In the Implementation Priority column, the
nodes are ranked in the recommended order of configuration.
Table 3-2 LAN Network Table
NETWORK NAME: |
NET1 |
IP NETWORK ADDRESS: |
C 192.001.001 XXX |
NODE NAME |
IP NODE ADDRESS |
PROXY SERVER (Y/N) |
GATEWAY NODE (Y/N) |
IMPLEMENTATION PRIORITY |
A | 001 | | | 2 |
L1 | 002 | | | 3 |
L2 | 003 | | | 4 |
L3 | 004 | | | 5 |
B | 005 | YES | YES | 1 |
LAN Internet Routing Table
The purpose of the LAN internet routing table
(Table 3-3 "LAN Internet Routing Table") is
to list all possible networks that can be reached from each gateway node on a
LAN, such as NET1 in the example.
As shown on the internetwork map, NET1 includes a neighbor
gateway node B. In the IP Node Address column of the LAN internet
routing table, the node portion of the gateway node's IP
address is listed. The LAN internet routing table shows that NET1
nodes using node B as a gateway can reach NET2 in one hop, NET5
in two hops, and NET3 in three hops. Node B is also designated as
a default gateway.
Table 3-3 LAN Internet Routing Table
NETWORK NAME: |
NET1 |
IP NETWORK ADDRESS: |
C 192.001.001 XXX |
GATEWAY |
IP NODE ADDRESS |
DESTINATION |
HOPS TO DESTINATION |
DEFAULT GATEWAY (Y/N) |
B | 005 | NET2 C 192.002.250 XXX | 1 | YES |
| | NET5 C 192.005.252 XXX | 2 | |
| | NET3 C 192.003.251 XXX | 3 | |
Token Ring Network Worksheets
You may use the worksheets found in the LAN section for Token Ring. It is
important to note that Token Ring does not use a proxy server.
FDDI Network Worksheets
You may use the worksheets found in the LAN section for FDDI as well. It is
important to note that FDDI does not use a proxy server.
100VG-AnyLAN Network Worksheets
You may use the worksheets found in the LAN section for 100VG-AnyLAN.
100Base-T Network Worksheets
You may use the worksheets found in the LAN section for 100Base-T.
Point-to-Point Network Worksheets
One set of Point-to-Point network worksheets should be used for each
Point-to-Point network in your internetwork. These network worksheets consist
of a map of the Point-to-Point network and two tables. One table contains
information about each node on the network and one table contains
network-specific internet routing information.
Point-to-Point Network Map
NET2 is the Point-to-Point network in the sample internetwork.

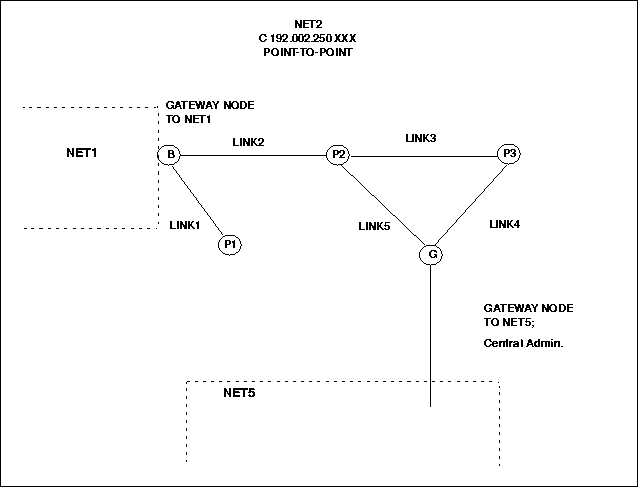

Figure 3-3 "Point-to-Point Network Map" is
a drawing of the network map for NET2. The network map is a detailed drawing of
the same network shown in the internetwork map
(Figure 3-1 "Internetwork Map"). The
network name, the IP network address, and the network type are listed at the
top of the network map. This information is derived from the internetwork map.
The internetwork map shows that nodes B and G are gateway nodes and also shows
the networks that the gateway nodes can reach. The remaining NET2 nodes and
their names are added to the network map. Node G is a central administrative
node.
Figure 3-3 Point-to-Point Network Map
Point-to-Point Network Table
Refer to the Point-to-Point network map to fill in the Point-to-Point network
table (Table 3-4 "Point-to-Point Network
Table"). We have completed the first column by listing the names of all the
nodes on NET2. Each node is assigned an IP address that is unique within the
network. Only the node portions of the IP addresses are listed because we have
listed the IP network address at the top of the table. In the third column of
Table 3-4 "Point-to-Point Network Table",
note that node G is a central administrative node. In the fourth column, nodes
B and G are indicated as gateway nodes. For the Implementation Priority column,
the nodes are ranked in the recommended order of configuration.
Table 3-4 Point-to-Point Network Table
NETWORK NAME: |
NET2 |
IP NETWORK ADDRESS: |
C 192.002.250 XXX |
NODE NAME |
IP NODE ADDRESS |
PROXY SERVER (Y/N) |
GATEWAY NODE (Y/N) |
IMPLEMENTATION PRIORITY |
B | 001 | | YES | 2 |
P1 | 002 | | | 3 |
P2 | 003 | | | 4 |
P3 | 004 | | | 5 |
G | 005 | YES | YES | 1 |
Point-to-Point Internet Routing Table
The purpose of the Point-to-Point internet routing table
(Table 3-5 "Point-to-Point Internet Routing
Table") is to list all possible networks that can be reached from each
gateway node on a Point-to-Point network, which is NET2 in the example. (Note
that there may be more than one route to a network.)
As shown on the internetwork map, NET2 includes two gateway nodes, B and G. In
the IP Node Address column of the Point-to-Point internet routing table, the
node portion of each gateway node's IP address is listed. The Point-to-Point
internet routing table indicates that NET2 nodes using node B as a gateway can
reach NET1 in one hop, NET4 in two hops, and so on.
For Node G, the same type of information is listed.
Table 3-5 Point-to-Point Internet Routing Table
NETWORK NAME: |
NET2 |
IP NETWORK ADDRESS: |
C 192.002.250 XXX |
GATEWAY |
IP NODE ADDRESS |
DESTINATION |
HOPS TO DESTINATION |
B | 001 | NET1 C 192.001.001 XXX | 1 |
| | NET4 C 192.004.002 XXX | 2 |
| | NET3 C 192.003.251 XXX | 2 |
| | NET5 C 192.005.252 XXX | 3 |
| | NET6 C 192.006.003 XXX | 2 |
G | 005 | NET5 C 192.005.252 XXX | 1 |
| | NET3 C 192.003.251 XXX | 2 |
| | NET1 C 192.001.001 XXX | 3 |
| | NET4 C 192.004.002 XXX | 4 |
| | NET3 C 192.003.003 XXX | 4 |
X.25 Network Worksheets
One set of X.25 network worksheets should be used for each
X.25 network in your internetwork. The X.25 worksheets consist of
a map of the X.25 network and two tables. One table contains information
about each node on the X.25 network. The other table contains network-specific
internet routing information.
X.25 Network Map

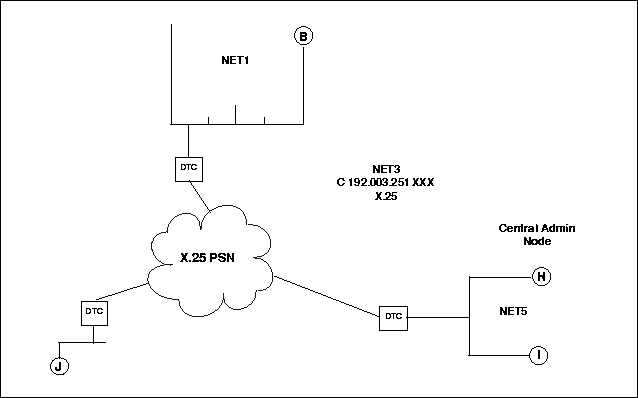

Figure 3-4 "X.25 Network Map" is a drawing
of the network map for NET3. The network map is a detailed drawing of the same
network shown in the internetwork map (Figure
3-1 "Internetwork Map"). The network name, the IP address, and the network
type are shown on the network map. This information is derived from the
internetwork map.
In the example, node B of NET1 and nodes H and I of NET5 are
also part of the X.25 network. The remaining NET3 nodes and their
names are added to the network map. The network map also shows node
H as a central administrative node.
Figure 3-4 X.25 Network Map
X.25 Network Table
Refer to the X.25 network map to fill in the X.25 network table as shown in
Table 3-6 "X.25 Network Table". We complete
the first column by listing the names of all the nodes on NET3. Each node is
assigned an IP address that is unique within the network. Only
the node portions of the IP addresses are listed since the IP network
address is listed at the top of the table. In the third column of
the table, node H is indicated as a central administrative node.
The X.25 (subnet) address for each node is listed in the fifth column
of the network table. The X.25 address is a decimal number (up to
15 digits) identifying a node's location on the X.25 subnet for
connections using switched virtual circuits (SVCs). Usually this address
is inserted in CALL packets to set up connections using SVCs. If
the network you will access is a public packet switching network (PSN),
these addresses (where appropriate) are recorded on the network
subscription form.
Table 3-6 X.25 Network Table
NETWORK NAME: |
NET3 |
IP NETWORK ADDRESS: |
C 192.003.251 XXX |
NODE NAME |
IP NODE ADDRESS |
CENTRAL ADMIN NODE (Y/N) |
X.25 ADDRESS |
H | 001 | Y | 1234 |
I | 002 | | 5678 |
J | 003 | | 6879 |
B | 004 | | 9876 |
X.25 Internet Routing Table
The purpose of the X.25 internet routing table
(Table 3-7 "X.25 Internet Routing Table")
is to list the other networks in the internetwork that can be reached from the
X.25 network, which is NET3 in the example. (Note that there may be more than
one route to a network.)
As shown in the internetwork map (Figure 3-4
"X.25 Network Map"), NET3 includes two gateway nodes, B and H. In the X.25
internet routing table note that NET3 nodes using Node H can reach NET5 in one
hop, NET2 in two hops, and so on. In the IP Node Address column, the node
portion of the node's IP address is listed.
Table 3-7 X.25 Internet Routing Table
NETWORK NAME: |
NET3 |
IP NETWORK ADDRESS |
C 192.003.251 XXX |
GATEWAY |
IP NODE ADDRESS |
DESTINATION |
HOPS TO DESTINATION |
B | 004 | NET1 C 192.001.001 XXX | 1 |
| | NET4 C 192.004.002 XXX | 2 |
| | NET2 C 192.002.250 XXX | 2 |
| | NET5 C 192.005.252 XXX | 3 |
H | 001 | NET5 C 192.005.252 XXX | 1 |
| | NET2 C 192.002.250 XXX | 2 |
| | NET1 C 192.001.001 XXX | 3 |
| | NET4 C 192.004.002 XXX | 4 |

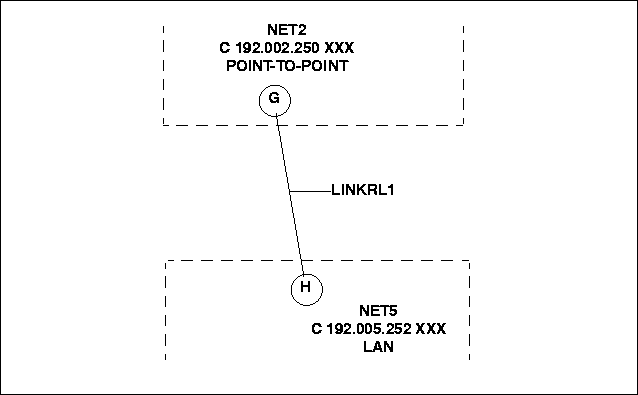

Gateway Half Pair Worksheets
One set of gateway half pair worksheets should be used for each gateway half
pair in your internetwork. The gateway half pair worksheets consist of a map of
the two gateway half nodes and their connecting link, and one table that
contains information about the gateway half network interfaces. In the sample
internetwork shown in Figure 3-1
"Internetwork Map", nodes G and H form a gateway half pair. Use the
discussion of the sample gateway half pair worksheets as a guide for filling
out your own gateway half pair worksheets.
Gateway Half Map
The sample internetwork contains one gateway half pair, as shown in the
internetwork map, which is made up of nodes G and H and their connecting link.
Figure 3-5 "Gateway-Half Map" is a drawing
of the gateway half pair showing the two nodes and the networks to which they
belong. In addition, the map shows the link name, LINKRL1.
Figure 3-5 Gateway-Half Map
Gateway Half Network Interface Table
Table 3-8 "Gateway Half Network Interface
Table" is based on the map discussed in the previous section. Both gateway
half nodes, the full IP addresses of the partner nodes, the connected networks,
and the name of the link are listed. Usually, the link name will be the same
from the perspective of each gateway half. The address of the partner gateway
half is shown to demonstrate that the partner's address is entered during
configuration of a gateway half network interface.
Table 3-8 Gateway Half Network Interface Table
NETWORK NAMES: |
NET2, NET3 |
GATEWAY HALF NODE |
FULL IP ADDRESS OF PARTNER |
CONNECTED NETWORK |
LINK NAME |
G/NET2 | C 192.005.250 005 | NET5 | LINKRL1 |
H/NET5 | C 192.002.252 001 | NET2 | LINKRL1 |
|
