The Protocol Configuration screen (#113) in
Figure 10-4 "Protocol Configuration Screen"
is displayed when you press the [Go To PROTOCOL] function key at the
Gateway Half Network Interface Configuration screen
(Figure 10-3 "Gateway Half Network Interface
Configuration Screen"). It is also displayed when you type the path name:
@NETXPORT.NI.NIname.PROTOCOL
in the command window of any screen and press the [Enter] key, where
NIname is the configured gateway half NI.

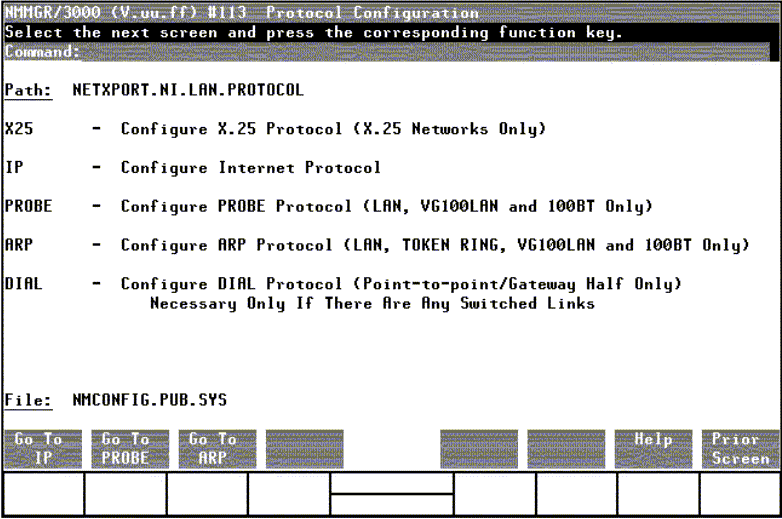

Figure 10-4 Protocol Configuration Screen
For the gateway half NI, you must configure the IP protocol.
The dial protocol must be configured only if you have any switched lines.
Choose the protocol to configure and press the corresponding function key.
