The Protocol Configuration screen (#113) in
Figure 9-4 "Protocol Configuration Screen"
is displayed when you press the [Go To Protocol] function key at the
FDDI Network Interface Configuration screen
(Figure 9-3 "FDDI Network Interface
Configuration Screen"). This screen is also displayed when you type the
path name:
@NETXPORT.NI.NIname.PROTOCOL
in the Command window of any screen and press the [Enter] key, where
NIname is a configured FDDI NI.

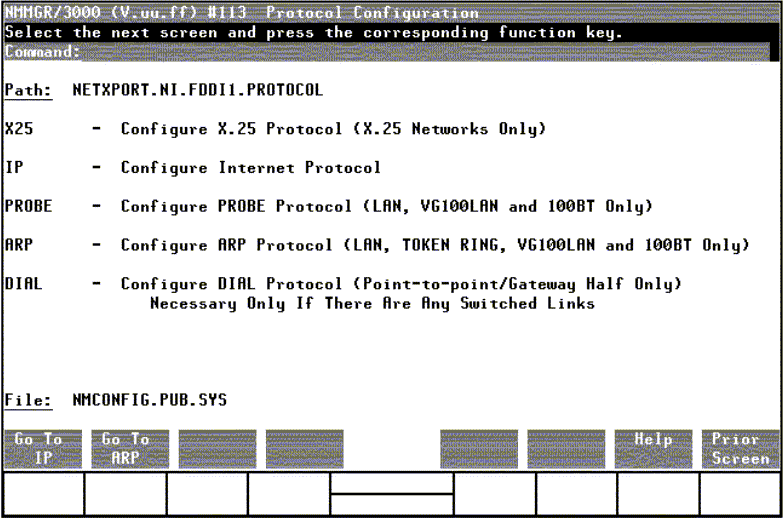

Figure 9-4 Protocol Configuration Screen
For the FDDI NI, you configure the IP and ARP protocols. Choose the protocol to
configure and press the corresponding function key.
