The Protocol Configuration screen (#113) in
Figure 8-4 "Protocol Configuration Screen"
is displayed when you press the [Go To Protocol] function key at the
Token Ring Network Interface Configuration screen
(Figure 8-3 "Token Ring Network Interface
Configuration Screen"). This screen is also displayed when you type the
path name:
@NETXPORT.NI.NIname.PROTOCOL
in the Command window of any screen and press the [Enter] key, where
NIname is a configured Token Ring NI.

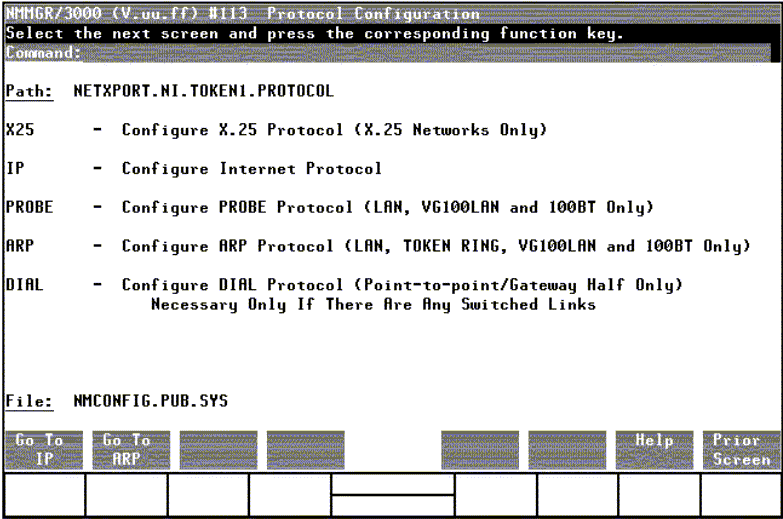

Figure 8-4 Protocol Configuration Screen
For the Token Ring NI, you configure the IP and ARP protocols. Choose the
protocol to configure and press the corresponding function key.
