If you press the [Guided Config] function key from the NS Configuration
screen, the Network Transport Configuration screen (#42) shown in
Figure 2-5 "Network Transport Configuration
Screen" appears. This is the first guided configuration screen. For
information specific to the guided configuration screens (including the screen
shown here), refer to the HP e3000/iX Network Planning and Configuration
Guide.

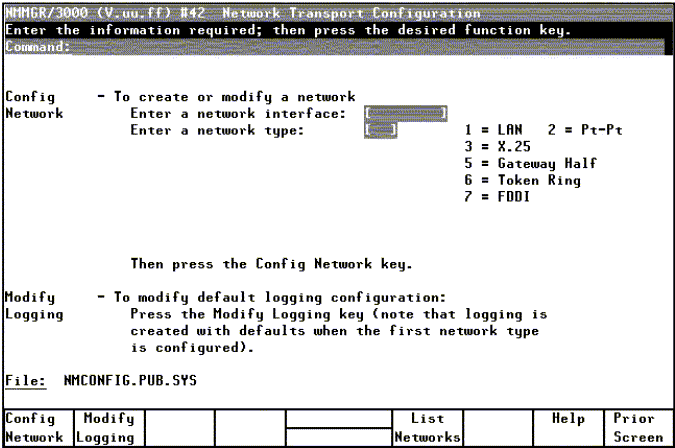

Figure 2-5 Network Transport Configuration Screen
Guided configuration is an NMMGR procedure that automates configuration. It
assumes and supplies default values wherever possible to furnish most of the
configuration file's data.
When you run guided configuration, you visit only a minimal number of
configuration screens. A number of these screens are different from those you
would see during unguided configuration.
 |
NOTE: HP strongly recommends that you use guided configuration to
configure each node initially. You can also take advantage of its convenience
later for most network maintenance and updating. Use manual configuration
only if guided configuration does not provide access to the
configuration data you need to change.
|
|
