Overview of the Interchange Panels

The Multiplexer is designed to connect to an interchange panel, which "breaks out" the signal into the ports. These panels are "passive" distribution panels, accepting the input from the MUX and distributing it to the network.

This section describes the various models of interchange panels that are compatible with the 8-port PCI ACC product. Each interchange panel is designed for a specific serial communications standard.

The following interchange panels that are compatible with the 8-port PCI ACC Multiplexer. Individual illustrations for each of the interchange panels appear later in this section.
Z7321A

RS-232 Interchange Panel, refer to Figure 1-5 "Z7321A RS-232 Interchange Panel".

Z7322A

V.35 Interchange Panel, refer to Figure 1-7 "Z7322A V.35 Interchange Panel".

RS-232 Interchange Panel

The RS-232 Interchange Panel is shown in Figure 1-5 "Z7321A RS-232 Interchange Panel".

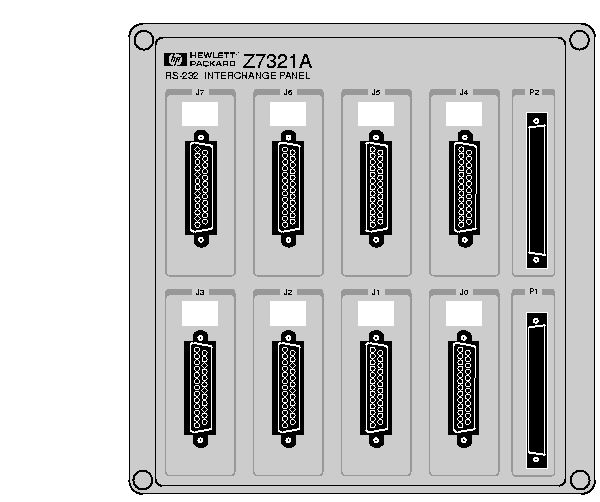

Figure 1-5 Z7321A RS-232 Interchange Panel

[Z7321A RS-232 Interchange Panel]

The signals supported on the RS-232 panels are in Figure 1-6 "Supported RS-232 Signals (Panel Connectors)".

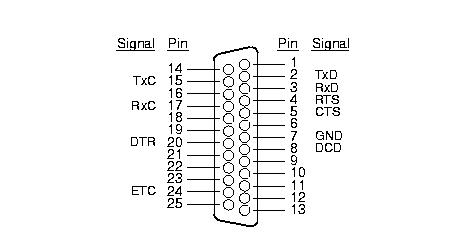

Figure 1-6 Supported RS-232 Signals (Panel Connectors)

[Supported RS-232 Signals (Panel Connectors)]

V.35 Interchange Panel

The V.35 Interchange Panel is shown in Figure 1-7 "Z7322A V.35 Interchange Panel".

Figure 1-7 Z7322A V.35 Interchange Panel

[Z7322A V.35 Interchange Panel]

The signals supported on the V.35 panels are shown in Figure 1-8 "Supported V.35 Signals".

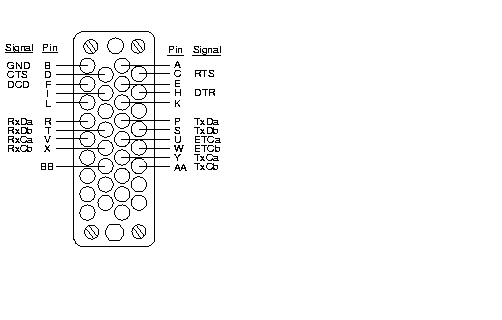

Figure 1-8 Supported V.35 Signals

[Supported V.35 Signals]



Accessories
