The Token Ring Network Interface Links screen (#90) in Figure 8-7 “Token Ring Network Interface Links
Screen” is displayed when you
press the [Go To LINK] function key at the Token
Ring Network Interface Configuration screen (Figure 8-3 “Token Ring Network Interface Configuration
Screen”). It is also displayed when you type the
path name:
@NETXPORT.NI.NIname.LINK
in the command window of any screen and press the [Enter]
key, where NIname is a configured token ring
NI.

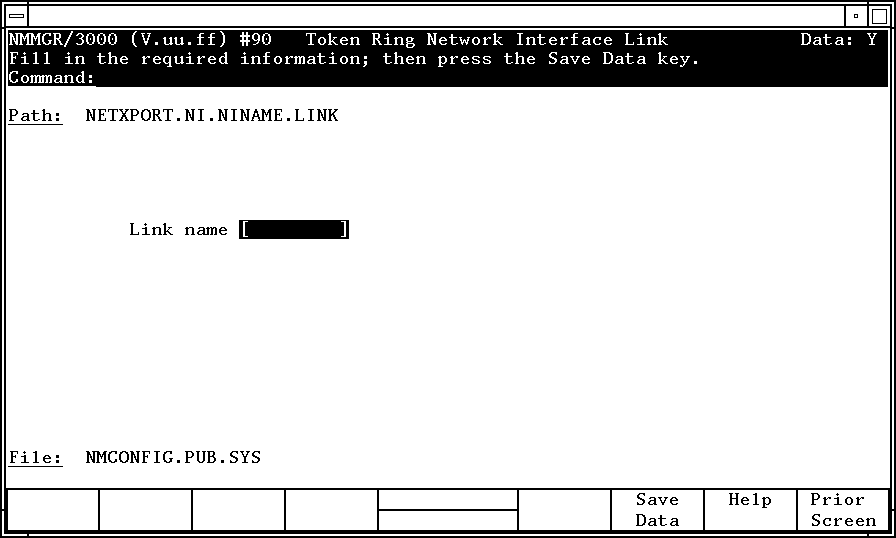

Figure 8-7 Token Ring Network Interface Links
Screen
Use the fields and the function keys of this select screen
to bind the token ring NI to the link. Enter the link name in the
Link name field and press the [Save Data]
key. (If you wish to rename the link, simply enter the new name
and press the [Save Data] key.)
Fields
- Link name
Make sure this is the same link name configured
at the Token Ring Link Configuration screen (#87) (path name LINK).
Press the [Save Data] function key to save the
link name in the configuration file. Verify that the link name has
been configured by checking that the Data flag is set to Y.
This screen associates the link data with the token ring network
interface data. The link name is used by the network transport when
establishing connections. The link name can contain as many as eight
alphanumeric characters, and the first character must be alphabetic.
To change an existing link name, enter the new name in the
Link name field and press the [Save Data]
function key.
