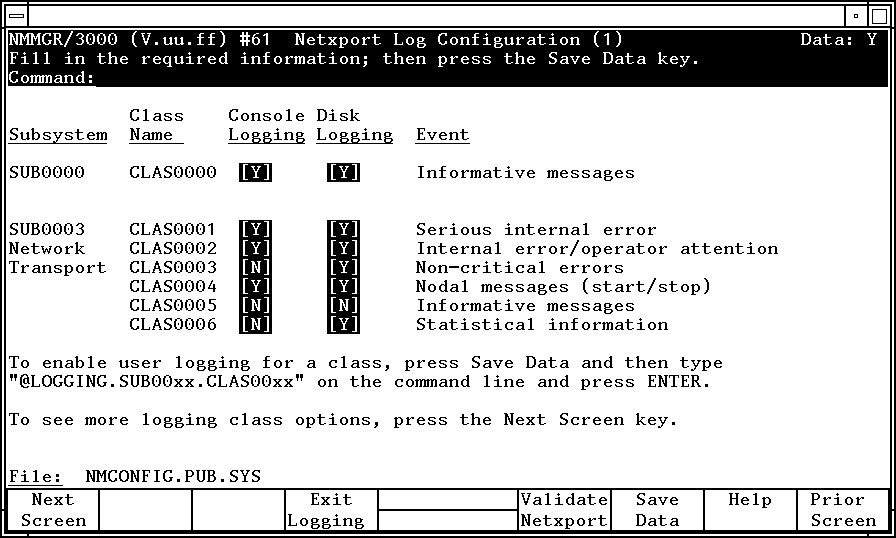

The Netxport Log Configuration (1) screen (#61) in Figure 13-2 “Netxport Log Configuration (1) Screen” is displayed when you
press the [Modify Logging] function key at the
Network Transport Configuration screen.
Figure 13-2 Netxport Log Configuration (1) Screen
![[Netxport Log Configuration (1) Screen]](img/gfx54.gif)
Use the fields and the function keys of the screen to configure
logging for the subsystems represented on the screen. If the subsystem
for which you want to enable logging does not appear on the first
screen, press the [Next Screen] function key to
go to the next Netxport Log Configuration screen. There are a total
of six logging configuration screens.
Enable or disable logging classes (or accept HP-recommended
defaults). Press the [Save Data] key on each screen
to create or modify the data record. Verify that the data record
has been created by checking that the Data flag is Y.
Fields
- Console Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to the system console. A value must be
entered for each subsystem and class listed. A Y
(yes) enables logging to the console, N
(no) disables logging to the console.
- Disk Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to a disk file. A value must be entered
for each subsystem and class listed. A Y
(yes) enables logging to a file, N
(no) disables logging to a file. The file name for the log file
is NMLGnnnn.PUB.SYS,
where nnnn is a number from 0000 to
9999. All logging classes in all subsystems
are logged to this file. At each system startup, or when a file
is full, the node management services subsystem (NMS) creates a
new NMLGnnnn.PUB.SYS
file, naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS
is full, NMS names the next logging file NMLG0000.PUB.SYS.

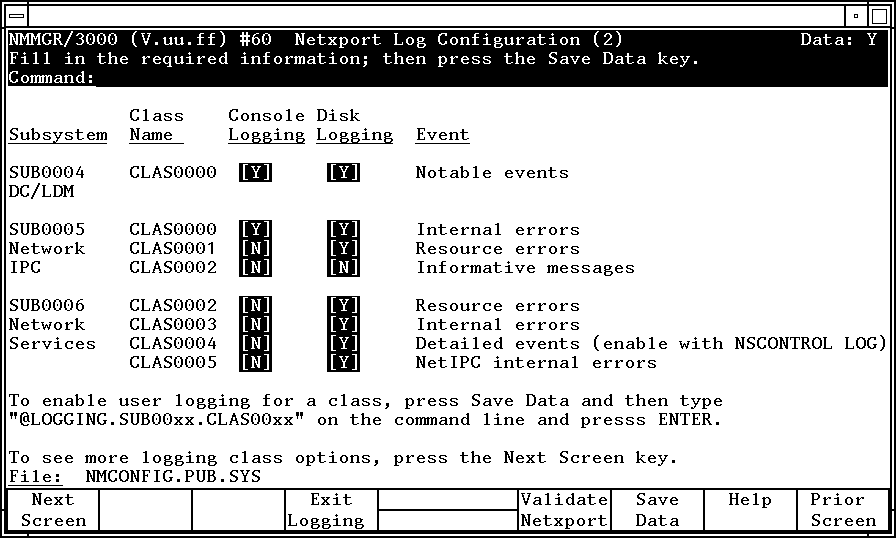

The Netxport Log Configuration (2) screen (#60) in Figure 13-3 “Netxport Log Configuration (2) Screen” is displayed when you
press the [Next Screen] function key from the Netxport
Log Configuration (1) screen (#61) in Figure 13-2 “Netxport Log Configuration (1) Screen”.
Figure 13-3 Netxport Log Configuration (2) Screen
![[Netxport Log Configuration (2) Screen]](img/gfx55.gif)
Use the fields and the function keys of the screen to configure
logging for the subsystems represented on the screen. If the subsystem
for which you want to enable logging does not appear on this screen,
press the [Next Screen] function key to go to the
next Netxport Log Configuration screen. There are a total of six
logging configuration screens.
Enable or disable logging classes (or accept HP-recommended
defaults). Press the [Save Data] key on each screen
to create or modify the data record. Verify that the data record
has been created by checking that the Data flag is Y.
Fields
- Console Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to the system console. A value must be
entered for each subsystem and class listed. A Y
(yes) enables logging to the console, N
(no) disables logging to the console.
- Disk Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to a disk file. A value must be entered
for each subsystem and class listed. A Y
(yes) enables logging to a file, N
(no) disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS,
where nnnn is a number from 0000
to 9999. All logging classes in all subsystems
are logged to this file. At each system startup, or when a file
is full, NMS creates a new NMLGnnnn.PUB.SYS
file, naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS
is full, NMS names the next logging file NMLG0000.PUB.SYS.

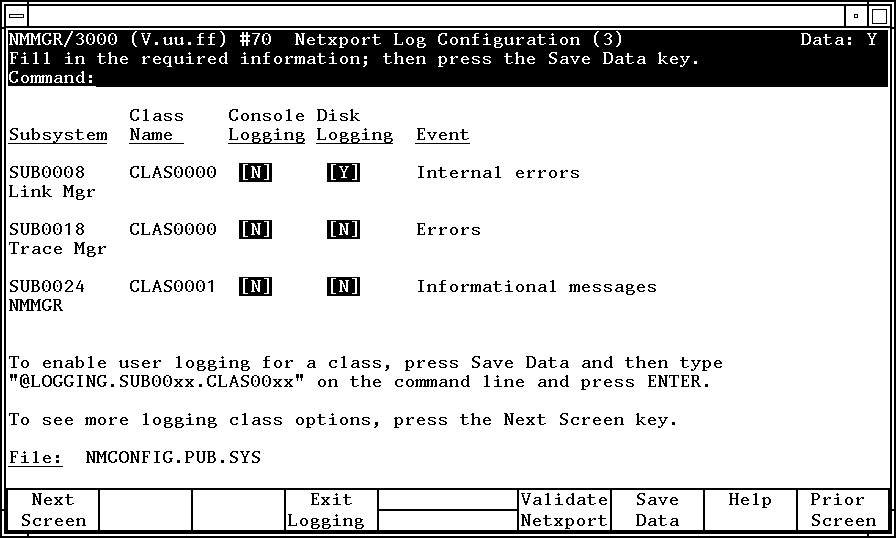

The Netxport Log Configuration (3) screen (#70) in Figure 13-4 “Netxport Log Configuration (3) Screen” is displayed when you
press the [Next Screen] function key from the Netxport
Log Configuration (2) screen (#60) in Figure 13-3 “Netxport Log Configuration (2) Screen”.
Figure 13-4 Netxport Log Configuration (3) Screen
![[Netxport Log Configuration (3) Screen]](img/gfx56.gif)
Use the fields and the function keys of the screen to configure
logging for the subsystems represented on the screen. If the subsystem
for which you want to enable logging does not appear on this screen,
press the [Next Screen] function key to go to the
next Netxport Log Configuration screen. There are a total of six
logging configuration screens.
Enable or disable logging classes (or accept HP-recommended
defaults). Press the [Save Data] key on each screen
to create or modify the data record. Verify that the data record
has been created by checking that the Data flag is Y.
Fields
- Console Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to the system console. A value must be
entered for each subsystem and class listed. A Y
(yes) enables logging to the console, N
(no) disables logging to the console.
- Disk Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to a disk file. A value must be entered
for each subsystem and class listed. A Y
(yes) enables logging to a file, N
(no) disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS,
where nnnn is a number from 0000
to 9999. All logging classes in all subsystems
are logged to this file. At each system startup, or when a file
is full, NMS creates a new NMLGnnnn.PUB.SYS
file, naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS
is full, NMS names the next logging file NMLG0000.PUB.SYS.

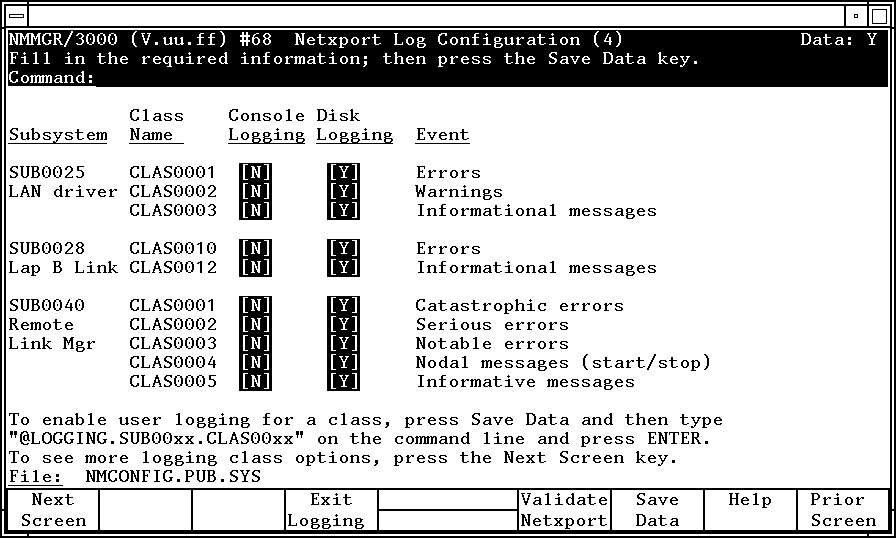

The Netxport Log Configuration (4) screen (#68) in Figure 13-5 “Netxport Log Configuration (4) Screen” is displayed when you
press the [Next Screen] function key from the Netxport
Log Configuration (3) screen (#70) in Figure 13-4 “Netxport Log Configuration (3) Screen”.
Figure 13-5 Netxport Log Configuration (4) Screen
![[Netxport Log Configuration (4) Screen]](img/gfx57.gif)
Use the fields and the function keys of the screen to configure
logging for the subsystems represented on the screen. If the subsystem
for which you want to enable logging does not appear on this screen,
press the [Next Screen] function key to go to the
next Netxport Log Configuration screen. There are a total of six
logging configuration screens.
Enable or disable logging classes (or accept HP-recommended
defaults). Press the [Save Data] key on each screen
to create or modify the data record. Verify that the data record
has been created by checking that the Data flag is Y.
Press the [Exit Logging] function key when
you have finished modifying the logging configuration.
Fields
- Console Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to the system console. A value must be
entered for each subsystem and class listed. A Y
(yes) enables logging to the console, N
(no) disables logging to the console.
- Disk Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to a disk file. A value must be entered
for each subsystem and class listed. A Y
(yes) enables logging to a file, N
(no) disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS,
where nnnn is a number from 0000
to 9999. All logging classes in all subsystems
are logged to this file. At each system startup, or when a file
is full, NMS creates a new NMLGnnnn.PUB.SYS
file, naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS
is full, NMS names the next logging file NMLG0000.PUB.SYS.

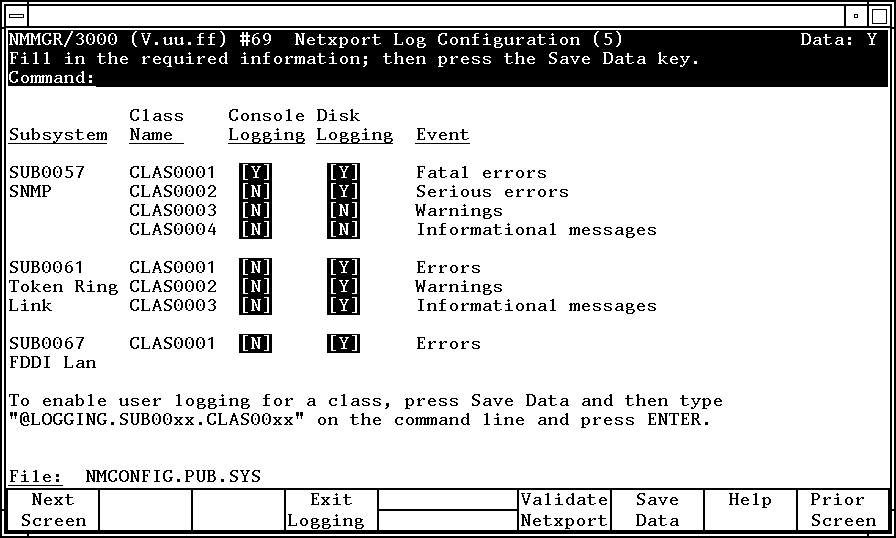

The Netxport Log Configuration (5) screen (#69) in Figure 13-6 “Netxport Log Configuration (5) Screen” is displayed when you
press the [Next Screen] function key from the Netxport
Log Configuration (4) screen (#68) in Figure 13-5 “Netxport Log Configuration (4) Screen”.
Figure 13-6 Netxport Log Configuration (5) Screen
![[Netxport Log Configuration (5) Screen]](img/gfx58.gif)
Use the fields and the function keys of the screen to configure
logging for the subsystems represented on the screen. If the subsystem
for which you want to enable logging does not appear on this screen,
press the [Next Screen] function key to go to the
next Netxport Log Configuration screen. There are a total of six
logging configuration screens.
Enable or disable logging classes (or accept HP-recommended
defaults). Press the [Save Data] key on each screen
to create or modify the data record. Verify that the data record
has been created by checking that the Data flag is Y.
Press the [Exit Logging] function key when
you have finished modifying the logging configuration.
Fields
- Console Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to the system console. A value must be
entered for each subsystem and class listed. A Y
(yes) enables logging to the console, N
(no) disables logging to the console.
- Disk Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to a disk file. A value must be entered
for each subsystem and class listed. A Y
(yes) enables logging to a file, N
(no) disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS,
where nnnn is a number from 0000
to 9999. All logging classes in all subsystems
are logged to this file. At each system startup, or when a file
is full, NMS creates a new NMLGnnnn.PUB.SYS
file, naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS
is full, NMS names the next logging file NMLG0000.PUB.SYS.

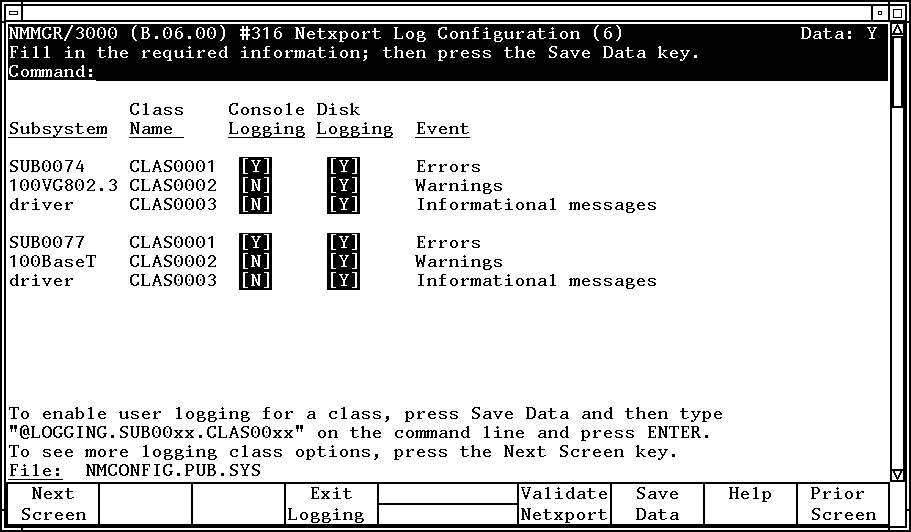

The Netxport Log Configuration (6) screen (#316) in Figure 13-7 “Netxport Log Configuration (6) Screen” is displayed when you
press the [Next Screen] function key from the Netxport
Log Configuration (5) screen (#69) in Figure 13-6 “Netxport Log Configuration (5) Screen”.
Figure 13-7 Netxport Log Configuration (6) Screen
![[Netxport Log Configuration (6) Screen]](img/gfx59.gif)
Use the fields and the function keys of the screen to configure
logging for the subsystems represented on the screen. If the subsystem
for which you want to enable logging does not appear on this screen,
press the [Next Screen] function key to go to the
next Netxport Log Configuration screen. There are a total of six
logging configuration screens.
Fields
Enable or disable logging classes (or accept HP-recommended
defaults). Press the [Save Data] key on each screen
to create or modify the data record. Verify that the data record
has been created by checking that the Data flag is Y.
- Console Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to the system console. A value must be
entered for each subsystem and class listed. A Y
(yes) enables logging to the console, N
(no) disables logging to the console.
- Disk Logging
The value entered in this field specifies whether
or not logging events for the subsystem and class listed beside
the field will be logged to a disk file. A value must be entered
for each subsystem and class listed. A Y
(yes) enables logging to a file, N
(no) disables logging to a file. The file name that NMS uses is
NMLGnnnn.PUB.SYS,
where nnnn is a number from 0000
to 9999. All logging classes in all subsystems
are logged to this file. At each system startup, or when a file
is full, NMS creates a new NMLGnnnn.PUB.SYS
file, naming each successive logging file by incrementing nnnn.
When NMLG9999.PUB.SYS
is full, NMS names the next logging file NMLG0000.PUB.SYS.
