The Network Directory Main screen (#8) in Figure 11-3 “Network Directory Main” is displayed when you press the [Open Directry]
function key at the Open Configuration/Directory File screen (#1)
in Figure 11-2 “Open Configuration/Directory File”. This screen is also
displayed if a network directory has already been opened and you
type NETDIR in the command window of any screen
and press the [Enter] key.

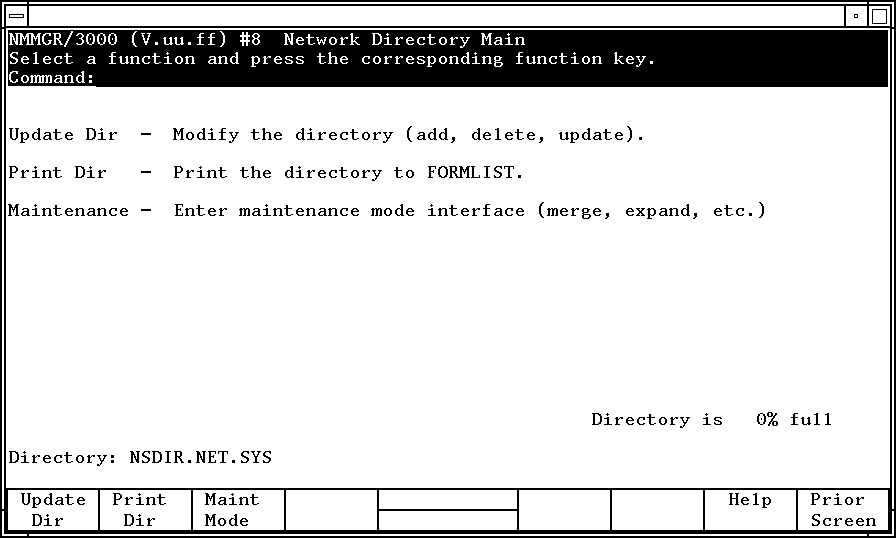

Figure 11-3 Network Directory Main
Function Keys
This screen is the main select screen from which all directory
functions are accessed. The currently opened directory is displayed
at the bottom of all network directory screens. The percentage of
the network directory that is full is shown in the lower right corner
of the screen.
- Update Dir
Press this function key to go to the Network Directory
Select Node Name screen to add, delete, or modify network directory
node name entries and path reports.
- Print Dir
Press this function key to print out a copy of the
directory to formal designator FORMLIST, device
class LP. You can use a file equation for FORMLIST
to redirect the output to another device class or disk file. To
set a file equation without leaving NMMGR, enter the appropriate
MPE command in the command window and press the [Enter]
key.
- Maint Mode
Press this function key to enter the command interface
to perform directory merging or to expand the size of your directory.
See Using the Node Management Services (NMS) Utilities
for details on maintenance mode.
Within the maintenance mode interface, command input is read
from the formal designator NMMGRCMD, which defaults
to $STDINX. Type EXIT and
press the [Enter] key to leave maintenance mode.
