The following is a description of the information that needs
to be gathered for the worksheets that follow in this chapter. This
information is used for configuring nodes.
- Neighbor Gateway IP Internet Address
This is the IP address of the gateway specified
on the Neighbor Gateways screen. The IP address is in the
same format as the LAN Configuration screen. An example of an address
is: C 192.007.007 001
- IP network address
The IP addresses of all the remote networks that
can be reached through the gateway whose IP address is configured
in the previous field. If the gateway node is to serve as a default
gateway, enter an at sign (@) in
one of these fields.
- IP mask
The IP mask allows you to specify a subnet mask
for each reachable network. This is in the same format as an IP
address. This mask is optional.
- Hops
This is the number of hops (full gateways) that
a packet travels to reach a remote network from a local network.
Two partner gateway halves count as one hop.
Neighbor Gateway Reachable Networks Configuration
Worksheet |
 |
Fill out the following worksheet (Figure 4-10 “Reachable Network Configuration”) for each neighbor gateway reachable network
you are configuring.

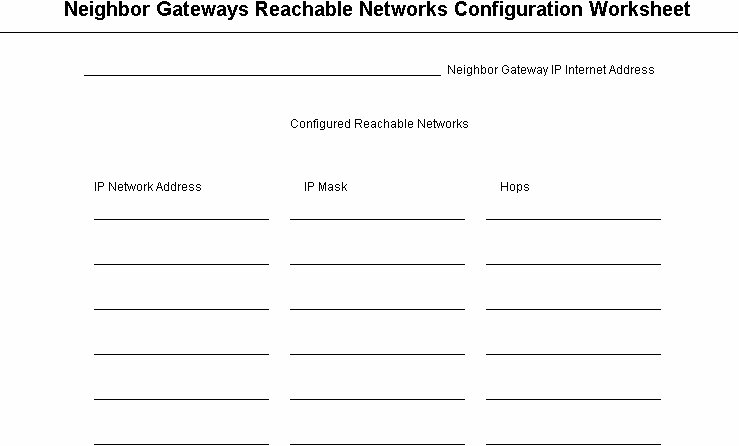

Figure 4-10 Reachable Network Configuration
![[Reachable Network Configuration]](img/gfx18.gif)
