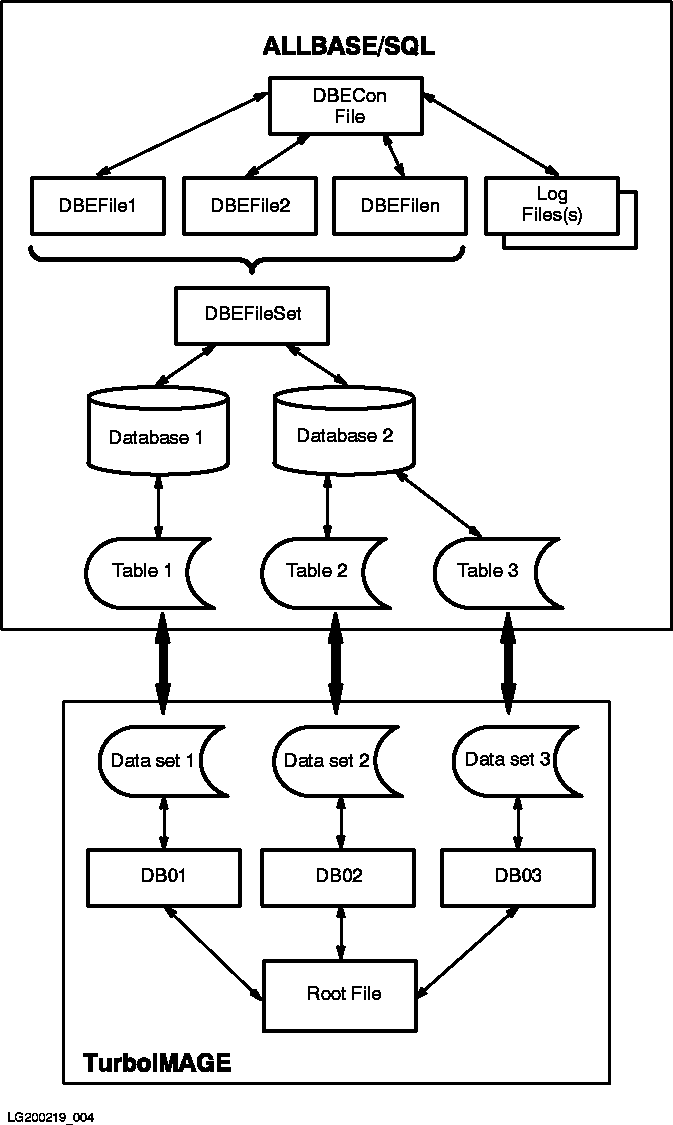

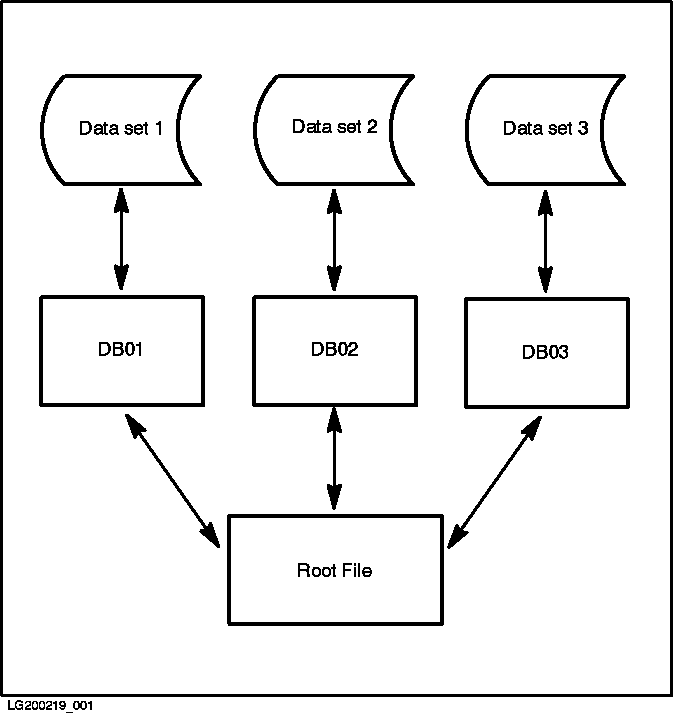

Figure 3-1 “TurboIMAGE/XL Architecture” shows the basic architecture of the TurboIMAGE/XL system. The TurboIMAGE/XL database manager accesses data in each data set as needed, based on information given in the root file. Figure 3-2 “IMAGE/SQL Architecture” shows the IMAGE/SQL architecture. |
