The steps in creating a Pascal application program that accesses
an ALLBASE/SQL relational database environment
(DBEnvironment) are summarized in Figure 1-1 “Creating an ALLBASE/SQL Pascal Application Program”.

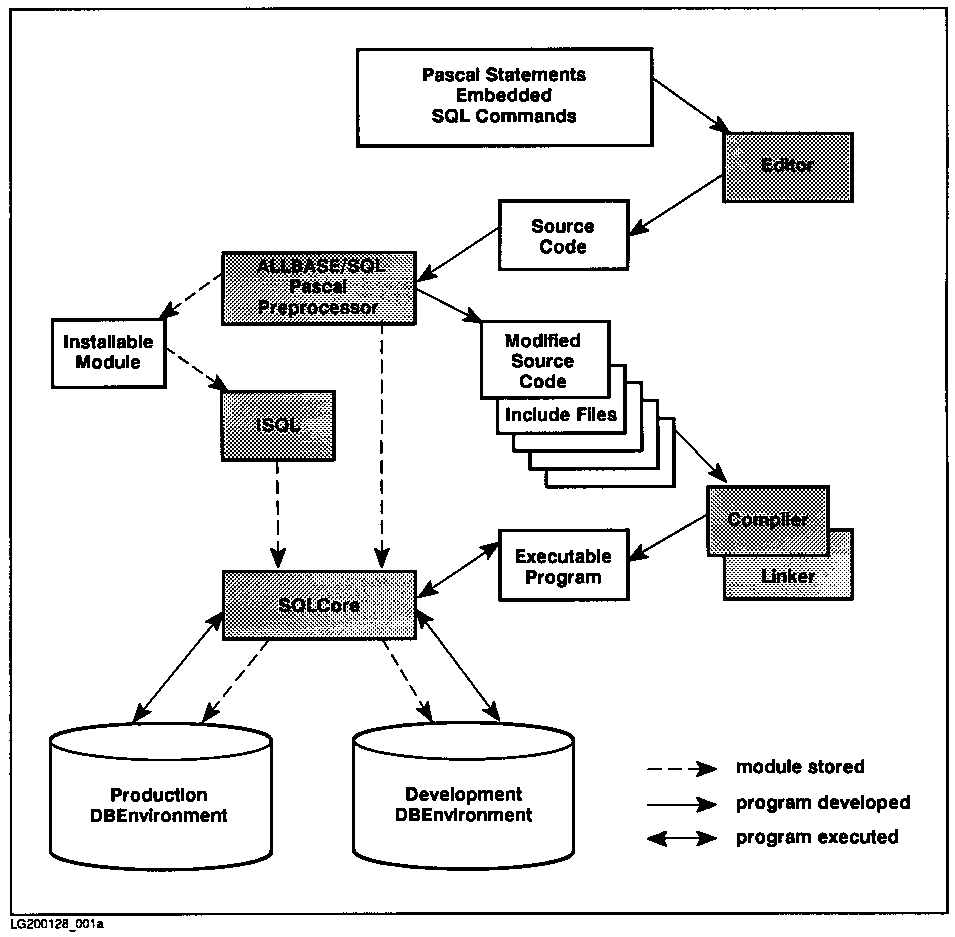

Figure 1-1 Creating an ALLBASE/SQL Pascal Application Program
![[Creating an ALLBASE/SQL Pascal Application Program]](img/128_001a.gif)
Using your favorite editor, you create Pascal source code.
The source code is a compilable Pascal program or subprogram
that contains SQL commands. The SQL commands contained within
the Pascal program are said to be embedded. Refer to the
ALLBASE/SQL Reference Manual for SQL terminology and usage rules.
Before compiling the source code, you preprocess it with the
ALLBASE/SQL Pascal preprocessor. Preprocessing performs the
following tasks:
Checks the syntax of the SQL commands.
Stores a module in the system catalog of the DBEnvironment
to be accessed at run time. A module consists of ALLBASE/SQL
instructions for executing SQL commands in your program.
Creates an installable module file. This file contains a copy
of the module stored in the DBEnvironment at preprocessing time.
You can use this file to install the module into another
DBEnvironment in order to run the application program in that
DBEnvironment.
Generates Pascal constructs for executing the SQL commands and
comments out the SQL commands. Non-SQL constructs are ignored.
This modified version of your source code is placed into a file
created by the preprocessor, referred to as a modified source
code file.
Creates four include files, which contain variable
declarations, constant declarations, type declarations, and
external procedure declarations that the preprocessor-generated
Pascal constructs use.
You use the Pascal compiler and system linker to create
the executable program from the modified source code file
and the four include files. The executable program
automatically makes the appropriate database accesses at run
time in the DBEnvironment where the related module is stored.
