Using HP 3000 MPE/iX: Fundamental Skills Tutorial: HP 3000 MPE/iX Computer Systems > Chapter 5 The Account StructureLesson 1 The MPE/iX Account Structure |
|
Lesson 1 presents the MPE/iX account structure.

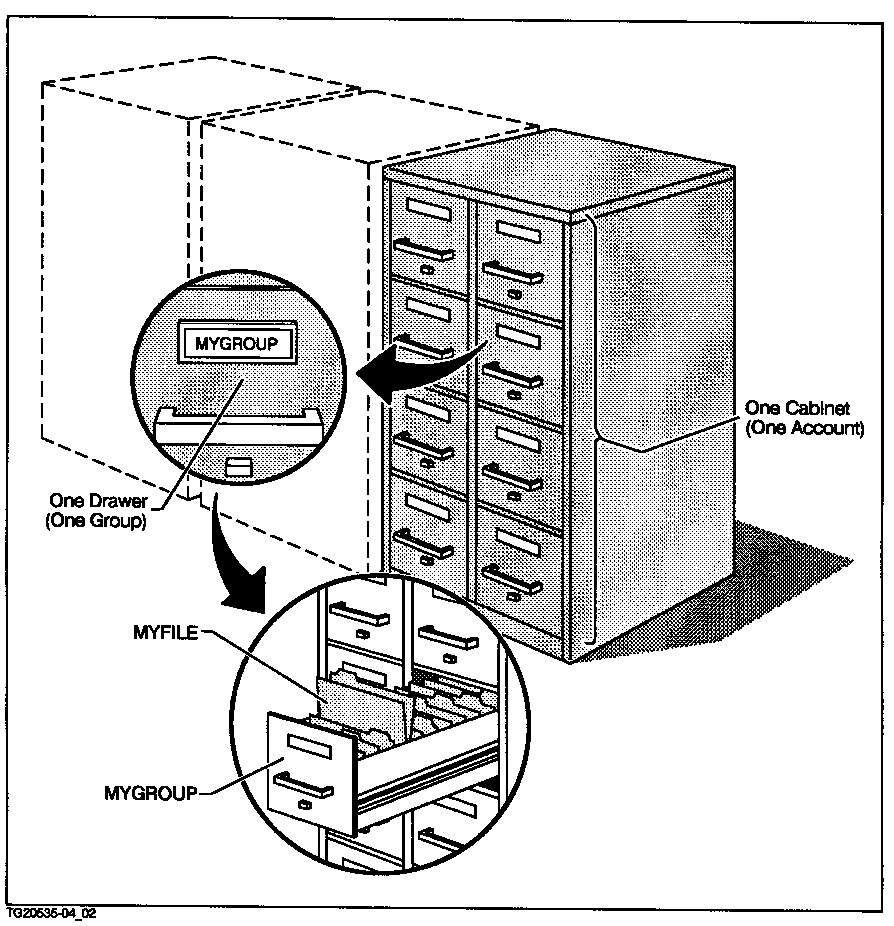

The MPE/iX account structure performs several functions. Anyone can log on and successfully use the HP 3000 without knowing about these functions, but you will be more effective in your work if you understand the account structure. The account structure on the 900 Series HP 3000 is set up by your system management team and serves three main system functions: organization, security, and billing. In order for the HP 3000 system to process all of the information from its user base, some structure is necessary to organize the information. This keeps your files from being mixed together with those of other users, for instance. The account structure can protect each user's files from unwarranted use by unqualified or unauthorized users. The system challenges the person logging on to enter one or more passwords, to be sure that the person really has authority to work on the system. Your organization probably checks every so often to see how much time people have spent using the computer. Very likely the time used is the basis for determining who needs more computing facility, who needs less, and how to bill each department or unit for the internal cost of owning and running the computer. This billing process begins with your logon. The account structure deals with four elements: accounts, users (who belong to accounts), groups, and files. You might think of the computer system as a filing room in which there are many filing cabinets. The basic unit in the MPE/iX account structure is the account. There are usually many accounts on the MPE/iX. As a user, you are assigned to a specific account. When you log on, you enter HELLO and your user name and the name of the account to which your user is assigned. An account may have more than one user assigned to it. If you think of the computer as a filing room, then each separate cabinet in the filing room is comparable to a separate account within the computer system. Users are people like yourself who use the computer. In a sense, users do not have a place in the account structure (cabinet). Instead, they are the people (more accurately, the user names) who have the key to an account (cabinet). A user name is the key to a particular account (cabinet). Accounts are divided into smaller units called groups. Groups are comparable to the drawers in each filing cabinet. Groups are separated from each other, just the way accounts are separated. Groups contain files. Files — all sorts of files — are the materials that users work with. They are kept in the groups. You have created, saved, and edited files, so you should feel somewhat familiar with them. The following figure represents one way of looking at accounts, files, and groups. The following figure represents another way of looking at accounts, files, and groups. There are four logon elements:
Like file names, these names must start with a letter and contain no more than eight characters in all.
The simplest logon identity consists of a user name and an account name. You must specify at least a user name and an account name to log on.
If there are user and/or account passwords, you are prompted for them by the system security. Look at your logon identifier. Which is the account name? Which is the user name? Before you can work on a file, you must log on to the account and group in which the file is found. To log on to a particular group, add a comma and the group name at the end of your logon identifier:
Log on to MYGROUP, using your user and account name. Example:
Execute SHOWME to check your user identity:
Now, log on to the OTHERGRP group. Remember that you do not have to log off in order to start a new session. Use the HELLO command with your appropriate logon identity. Example:
Check your user identity again with the SHOWME command. Session names are used as an additional identifier, not for the computer, but for the benefit of those who are working with the computer. Session names can represent anything that helps identify your logon session, (persons, places, or things). To add a session name to the logon, put the session name and a comma ahead of everything else in the logon identity:
For example, you might choose to log on using a location, such as a building number, as a session name and the group name MYGROUP. (Sessions are limited to eight letters.) Example:
Execute a SHOWJOB at the prompt. In the above example, BUILD20 is the session identifier.
These are the minimum requirements for logging on:

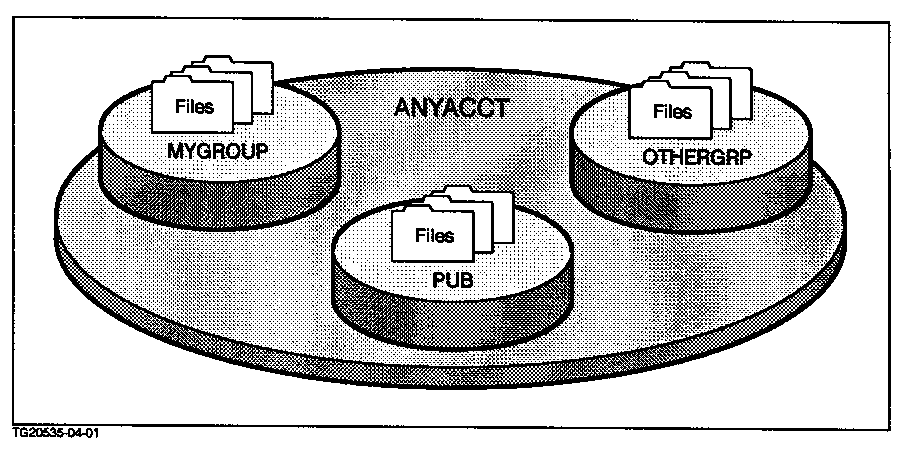

Every account on the MPE/iX system has a special group called PUB that contains files that are accessible to any user assigned to that account.
Every MPE/iX system has a main system account called SYS that exists primarily for the use of the system manager. Like other accounts, the SYS account has a special group called PUB. Files stored in the PUB group of the SYS account are available without restriction to any system user, unless those files have lockwords or special file security. One program in the PUB group of the SYS account that you have already used is the editor (EDIT/3000). Recall that you do not have to specify a group name when you log on. A user name and an account name are all that you need. It is common on most MPE/iX systems that if you do not specify a group name when you log on, MPE/iX puts you in some group. It puts you in the group designated as your home group. Your home group is your default logon group. If you do not have a home group (default group), you must specify a group name at logon. Your account manager assigns your home group when your user name is created in an account. Recall at the beginning of this module that you could ask your account manager to create MYGROUP and OTHERGRP for you and designate MYGROUP as your home group. Why do that? For the purposes of these lessons, it is simply more convenient if a group called MYGROUP is your home group. That way you can be assured of working in MYGROUP whenever you log on without specifying a group. If you do not have MYGROUP and OTHERGRP, but are using two different groups instead, you have to keep the difference in mind and adjust accordingly. To discover your home group, log on using just your user name and account name. Then enter SHOWME to find out what group you are in. Do that now, using your own user name and account name:
You are now in your home group. Now enter:
Can you find the group name in the display? Another way to discover your home group is to enter the command LISTUSER at the system prompt. Try this:
Do you see something like this on your screen?
The LISTUSER command provides you with some valuable information about you as a user of the MPE/iX system. But for now, just note what your home group is. Is it MYGROUP or something else? It is tempting to have PUB designated as your home group. A lot of users could share PUB as the home group in an account. After all, every file in PUB is accessible to everyone unless the file is locked; however, using PUB as your home group is not a good idea. Why not? Suppose that you worked in personnel. Would you want to keep confidential files about persons in your firm in the PUB group, where other users might be able to read them? Most likely not. Keep this in mind when using the PUB group. If you have access to a group other than PUB (your account manager has the ability to create one for you), make a practice of keeping your confidential files in the other group.
|
