As a system manager, you need to know what a 900 Series computer system is
and what systems are in the 900 Series family. The 900 Series is a member of
the Hewlett-Packard Precision Architecture (PA-RISC) family that shares a
common RISC architecture. These reduced instruction set computers (RISC)
can use the same software without modification. The terms used to identify the families of computers are shown
in Figure 12-1 “Sample System Processor Units of the HP 3000 Family”. Table 12-1 900 Series HP 3000 Computers | Family | Model Numbers |
|---|
| Series 917LX through Series 967LX | 917LX, 927LX, 937LX, 947LX, 957LX, 967LX | | Series 9X8 | 918LX/RX, 928LX/RX, 968LX/RX, 978LS/RX | | Series 937 through Series 977 | 937LX/RX, 947LX/RX, 957LX/RX, 967LX/RX, 977LX/RX | | Series 920 through Series 958 | 920, 922LX, 922RX, 922, 932, 948, 958 | | Series 920 through 958 | 920, 922, 922LX/RX, 932, 948, 958 | | Series 950 through Series 980 | 950, 955, 960, 980/100, 980/200, 980/300, 980/400 | | Series 990 through Series 995 | 990, 990DX, 991CX, 991DX, 992, 992DX, 995CX, 995DX
|

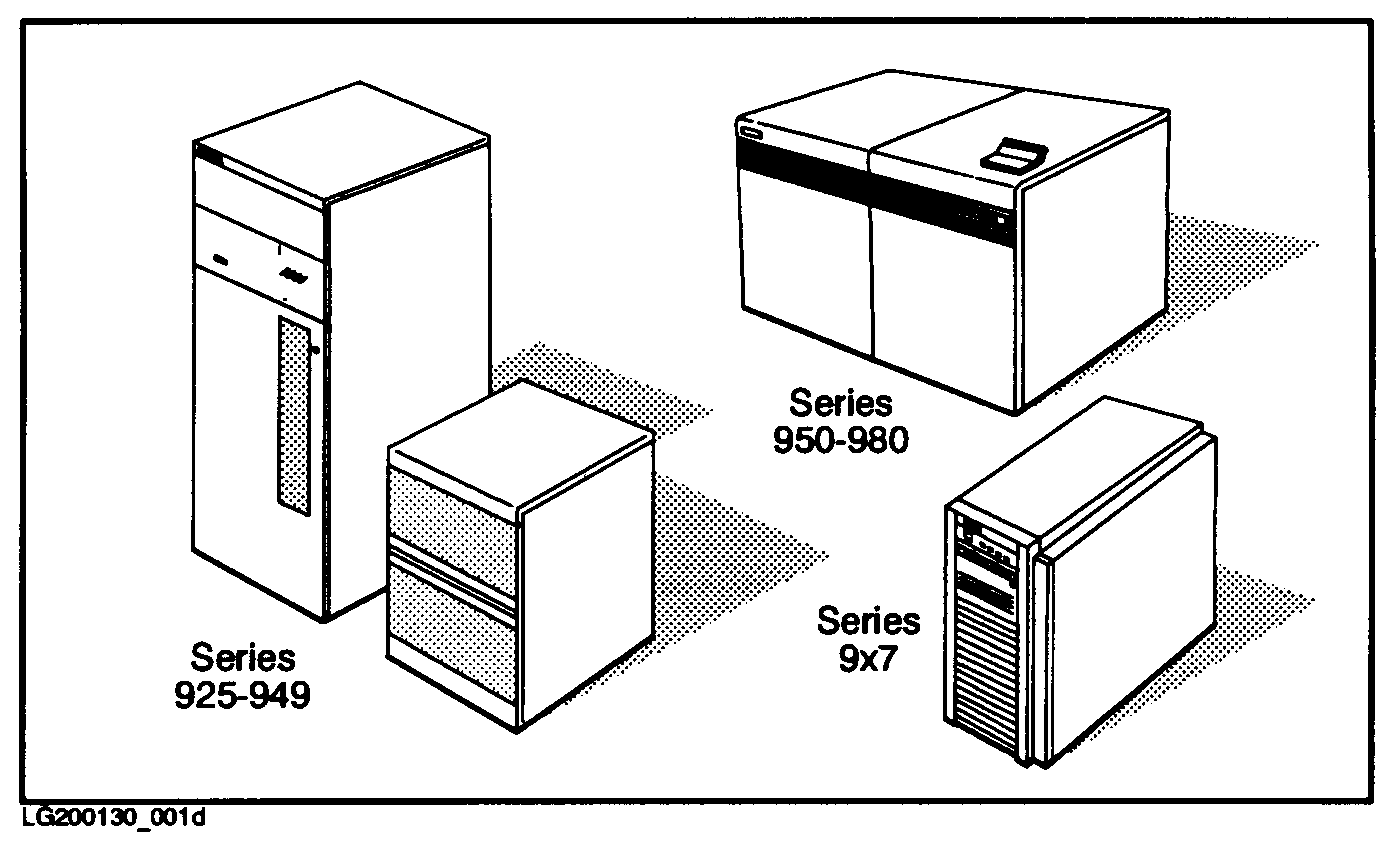

Figure 12-1 Sample System Processor Units of the HP 3000 Family
![[Sample System Processor Units of the HP 3000 Family]](img/s900cab.gif)
On every model of the 900 Series HP 3000:
*All operating system software is compatible.
*Distributed terminal controllers (DTCs) are supported. Networks are supported on these systems. The following peripherals are supported on these systems:
tape drives (1600 and 6250 BPI) disk drives (removable and nonremovable) digital data storage (DDS) units line printers and page printers
(Note, data cartridges are not supported.)
How you configure your system (for example, the maximum number of DTC's,
disks, system and serial printers, and
the maximum amount of memory) depends upon the particular model
you have. The following table gives you some basic information;
for complete data, consult your Hewlett-Packard field service representative. Table 12-2 900 Series HP 3000 Comparisons | Model | Maximum Workstations | Maximum Memory |
|---|
| Series 917LX | 64 | 192 Mbytes
| | Series 927LX | 64 | 192 Mbytes
| | Series 937LX | 152 | 192 Mbytes
| | Series 937RX/SX | 152 | 384 Mbytes
| | Series 947LX | 530 | 192 Mbytes
| | Series 947RX/SX | 530 | 384 Mbytes
| | Series 957RX/SX | 850 | 384 Mbytes
| | Series 967RX/SX | 900 | 512 Mbytes
| | Series 987RX | 1200 | 768 Mbytes
| | Series 987SX | 1500 | 768 Mbytes
| | Series 987/150 RX/SX | 1700 | 768 Mbytes
| | Series 987/200 RX/SX | 1700 | 768 Mbytes
| | Series 918LX/RX | 152 | 512 Mbytes
| | Series 928LX/RX | 400 | 512 Mbytes
| | Series 968LX/RX | 600 | 512 Mbytes
| | Series 978LX/RX | 900 | 512 Mbytes
| | Series 990 | 2300 | 2048 Mbytes
| | Series 992 | 2300 | 2048 Mbytes
| | Series 991 | 2700 | 2048 Mbytes
| | Series 995 | 2700 | 2048 Mbytes
|
|
