When you open a file, HPFOPEN/FOPEN establishes a communication link between
the file and your program by
Determining the device on which the file resides.
Allocating to your process the device on which the file resides. Disk
files generally can be shared concurrently among jobs and sessions. Magnetic
tape and unit-record devices are generally allocated exclusively to the
requesting job or session.
If the file resides on a nonshareable device (such as magnetic tape) and you
have nonshareable device (ND) capability, HPFOPEN/FOPEN determines whether the
system operator must approve allocation of the device (such as an unlabeled
magnetic tape) or provide a particular media (such as a specific volume for a
labeled magnetic tape request or special forms for a line printer). If so,
HPFOPEN/FOPEN requests the system operator to respond appropriately.
Different processes within the same job may open and have concurrent access to
a file on the same magnetic tape or unit-record device if the file has been
opened with multiaccess option set; however, this device cannot be accessed by
another job until all accessing processes in this job have issued a
corresponding FCLOSE call.
Verifying your right to access the file under the security provisions
existing at the account, group, and file levels.
Determining that the file has not been allocated exclusively to another
process (by the exclusive option in an HPFOPEN/FOPEN call issued by that
process).
Processing user labels (for files on disk). For new files on disk,
HPFOPEN/FOPEN specifies the number of user labels to be written.
Constructing the control blocks required by MPE/iX for this particular
access of the file. The information in these blocks is derived by merging
specifications from four sources, listed below in descending order of
precedence (and illustrated in Figure 5-1 “File System Hierarchy of Overrides”):
The file label, obtainable only if the file is an old file on disk;
otherwise, device-dependent characteristics applicable to the nonshareable
device. This information overrides information from any other source.
The parameter list of a previous FILE command referencing the same
formal file designator named in this HPFOPEN/FOPEN call, if such a command was
issued in this job or session. This is only true, if file equations were not
disallowed.
The parameter list of this HPFOPEN/FOPEN intrinsic call.
System default values provided by MPE/iX (when values are not
obtainable from the above sources).
When information from one of these four sources conflicts with that from
another, preempting takes place according to the order of precedence
illustrated in Figure 5-1 “File System Hierarchy of Overrides”. To determine the specifications actually taking
effect, you can call the FFILEINFO intrinsic. Certain sources do not always
apply or convey all types of information. For example, no file label exists
when a new file is opened, and so all information must come from the last four
sources above.

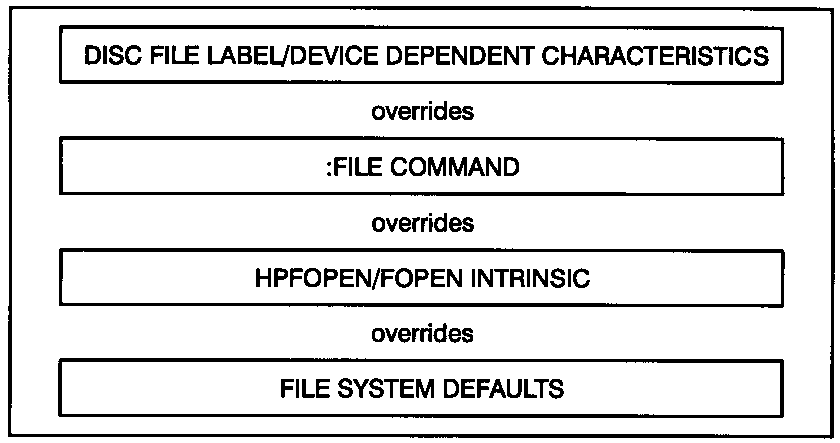

Figure 5-1 File System Hierarchy of Overrides
Since the physical characteristics of a disk file cannot be changed after it
has been created, it makes sense that the file label would take precedence over
information from any other source. Likewise, when a device file is opened,
device-dependent characteristics override information from any other source.
When the HPFOPEN/FOPEN intrinsic is executed, it returns to your program a file
number. If the file is opened successfully, the file number returned is a
positive integer. At this point, the file is ready to be accessed with system
intrinsics (for example, FREAD or FWRITE). If the file cannot be opened, the
file number returned is zero, and the intrinsic returns an error condition.
If your process issues more than one HPFOPEN/FOPEN call for the same file
before it is closed, this results in multiple, logically separate accesses of
that file, and MPE/iX returns a unique file number for each such access. Also,
MPE/iX maintains a separate logical record pointer (indicating the next
sequential record to be accessed) for each access where you did not request or
permit the multiaccess option at HPFOPEN/FOPEN time.
