GLOBAL FUNCTION KEY LABELS MENU

»

Technical documentation

Complete book in PDF
» Feedback

 » Table of Contents

 » Index

This menu is used to specify new function key labels which will appear when an application is executed. Labels you specify replace original labels provided by VPLUS.

Each label consists of two lines of eight characters each. To specify a label, enter the first line in the first field and the second line of the label in the second field in the menu. The color pairs fields allow you to specify a number, (1 - 8) to indicate a color for each function key; refer to Figure 3-23 “Global Function Key Labels Menu” for the correct color to number mapping.

If the labels are to be Global, they will be displayed for all forms that do not have Local labels defined.

In the case of a frozen form with another form appended to it, the labels displayed will be those for the appended form. If the appended form has no Local labels, the file's Global labels will be used.

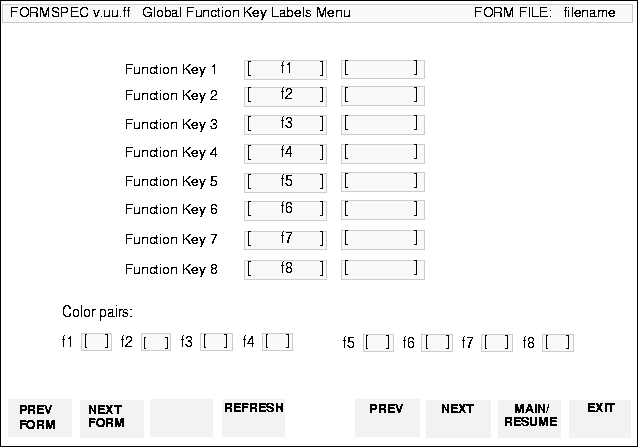

Figure 3-23 Global Function Key Labels Menu

Global Function Key Labels Menu
