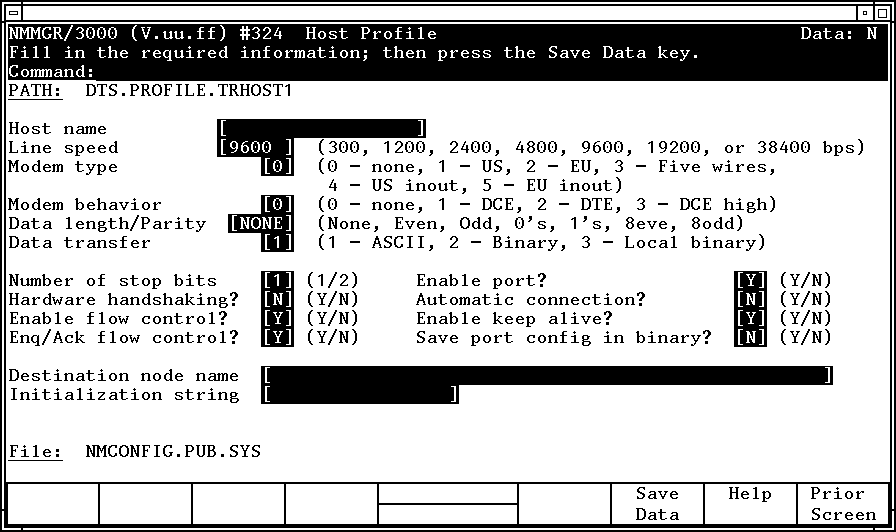

- Host name
Names the port. Field can be a node name up to 16
characters long or an IP address in the format xxx.xxx.xxx.xxx.
If a node name is entered, the domain and organization names from
the DTC node name will be taken to form a fully-qualified host node
name. Also, if a node name is entered, the IP address of the DTC
configured with this host port must be entered in the "DTC IP Address"
field on the DTC Configuration screen (Figure 5-5 “DTC Configuration Screen” displays the DTC 72MX Configuration
screen as an example).
If routers are used to connect two DTCs, this field must contain
an IP address.
- Line speed
The line speed, in bits per second. Supported speeds
are 300, 1200, 2400, 4800, 9600, 19200, and 38400. Default is 9600.
(Line speed 38400 is supported for direct connect devices on DTC
16iX/DTC 16MX and DTC 72MX only, and the attached
device must also support this speed.)
- Modem type
Specifies the type of modem
used in the connection.
0 means
that modems will not be used.
1 means
that a US modem will be used.
2 means
that a European modem will be used.
3 means that a Five wires
modem will be used. (Supported on DTC 16iX/DTC 16MX
and DTC 72MX only.)
4 means that a US In Out
modem will be used. (Supported on DTC 16iX/DTC 16MX
and DTC 72MX only.)
5 means that a European Modem
In Out will be used. (Supported on DTC 16iX/DTC 16MX
and DTC 72MX only.)
- Modem behavior
The DTC supports the following types of modem behavior
which define the protocol used to establish a modem link between
the DTC port and the attached device. Default is 0.
0 means
no modem used.
1 specifies
DCE modem behavior. Used for terminal connections. It uses a 2 minute
timer to establish the link, and the DTC may disconnect if a carriage
return is not received within a 2 minute interval.
2 specifies
DTE modem behavior. Used for termtype 26 supported on MPE/iX for
remote printer access.
3 specifies
DCE modem behavior, except that it does not use a 2 minute timer
to establish the link. The port remains open for connection establishment
and the DTC does not disconnect the link after a 2 minute interval.
(This option is supported on DTC 16iX/16MX and DTC 72MX only.)
- Data Length/Parity
Specifies the type of parity and data length will be used using this profile.
The full list of supported data length with parity settings is as
given:
None means that the 8 bits
data length with parity none will be used.
Even means that the 7 bits
data length with even parity will be used.
Odd means that 7 bits data
length with odd parity will be used.
0's means that 7
bits data length with parity forced to 0 will be used.
1's means that 7
bits data length with parity forced to 1 will be used.
8eve means that 8 bits data
length with even parity will be used. (Supported on DTC 16iX/DTC 16MX
and DTC 72MX only.)
8odd means that 8 bits data
length with odd parity will be used. (Supported on DTC 16iX/DTC 16MX
and DTC 72MX only.)
- Data transfer
Specifies the mode of data transfer
in back-to-back connections. Field may be
either ASCII or binary. Default is ASCII.
- Number of stop bits
Specifies the number of stop bits to be used for
asynchronous characters. The possible values are 1
or 2 stop bits. Default value is
1. Enter a 1
to set 1 stop bit. Enter a 2 to
set 2 stop bits. This is applicable only for DTC 72MX,
DTC 16MX and DTC 16iX. This field does not apply
for DTC 16RX access to an HP 3000 in an MPE/iX
host-based management environment, and any value entered in this
field for a DTC 16RX will be ignored.
- Enable port?
Specifies whether communication can pass through
the port.
If disabled, no communication can pass through the port. Default
is Y.
- Hardware handshaking?
Specifies whether hardware handshake
will be used. Hardware handshake uses modem signals CTS and RTS
to pace the data transfer from the DTC to the attached device. Default
is N. (Supported
on DTC 16iX/16MX and DTC 72MX only.)
- Automatic connection?
Enables automatic connection
capability of the port. When enabled, the port will automatically
connect to the system specified in the "Destination node name"
field. The connection will be established when the port senses the
rise of the modem signals of the device connected to the port. Field
can be enabled on modem ports only ("Modem behavior"
field on Terminal Profile screen must be set to 1,
2, or 3).
Default is N.
- Enable flow control?
Specifies whether to enable flow control between
DTC port and connected device. If set to Y,
flow control is made with XON/XOFF characters. If set to N,
the XON/XOFF characters sent from device are not interpreted by
DTC. This function is also known as "software handshake".
This field does not apply for DTC 16RX access to an HP 3000
in an MPE/iX host-based management environment and any value entered
in this field for a DTC 16RX will be ignored.
- Enable keep alive?
Specifies whether "keep alive"
mechanism is to be activated. When there is no data transfer between
the DTC and the system, then the "keep alive"
mechanism is used to detect if the connection is still there. The
default value is Y (enable). Enter
an N to disable the field. Not
applicable for DTC 48 without the memory extension.
- Enq/Ack flow control?
Enables enq/ack flow control.
Enq/ack flow control is needed when the host port is connected to
MPE/V systems. Default is Y.
- Save port config in binary?
Specifies whether the port configuration parameters;
data length and parity, get forced when binary mode is selected.
If set to Y, then the port configuration
remains the same when binary mode is selected. If set to N,
then data length is forced to 8 and parity to none when binary mode
is selected. Default value of this field is N
Only applicable for new DTCs.
- Destination node name
Optional field which specifies the system to which
the port will connect if "Automatic connection?"
field is enabled. A name must be entered if "Automatic connection?"
is enabled.
- Initialization string
Optional field which specifies the string that will
be sent to the attached device under one of the following circumstances:
After the connection to this port is closed.
After establishing a connection to the DTC user
interface for modem connections when all modem signals are up.
Field is case-sensitive and can be up to 16 characters, including
special characters and escape-code sequences in the format ^char.
