Printer Profile Screen (Host-Based)

»

Technical documentation

Complete book in PDF
» Feedback

 » Table of Contents

 » Glossary

 » Index

The Printer Profile screen is used to define the characteristics associated with a printer profile. Figure 7-5 “Printer Profile Screen (Host-Based)” shows a Printer Profile screen for host-based management. PC-based management Printer Profile screen varies slightly, see Figure 7-7 “Printer Profile Screen (PC-Based)”.

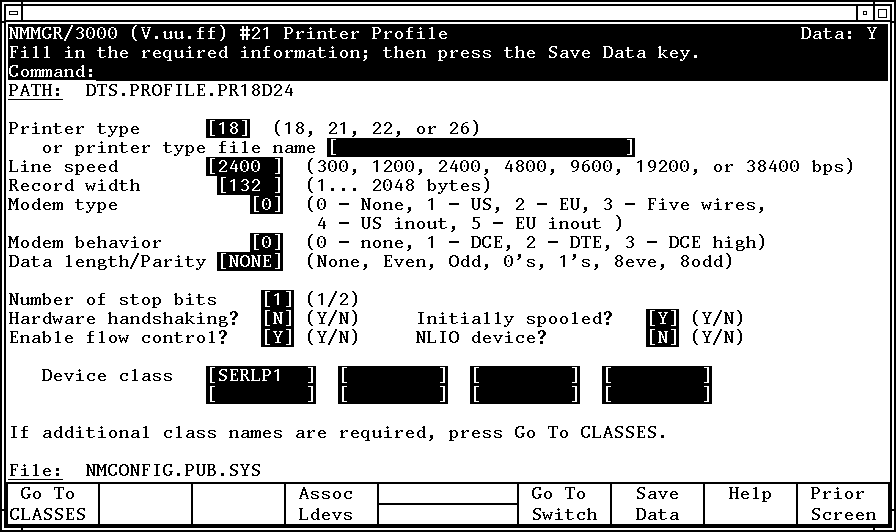

Figure 7-5 Printer Profile Screen (Host-Based)

Printer Profile Screen (Host-Based)

Review the profile settings on the screen. Use the [Tab] key to move from field to field. Make changes as needed by typing over the current values. When you have made the desired changes, press the [Save Data] key. Refer to the "Fields" subsection below for detailed information about each field on the screen.

Press the [Prior Screen] key to return to the Profile Selection screen or Press the [Go To Switch] key to go to the Printer Switching Configuration Screen.

Fields

Printer type

The printer type associated with the profile. Four printer types are supplied with MPE/iX: printer type 18, 21, 22 and 26. See Printer Types earlier in this chapter.

Printer type file name

Instead of using the default printer type files 18, 21, 22, or 26, you may create your own customized printer type and store it in a file. Use the Workstation Configurator, TTUTIL.PUB.SYS to create your own printer type files. Refer to the Customizing Terminal and Printer Type Files with Workstation Configurator for more information.

Line speed

The line speed, in bits per second. Supported speeds are 300, 1200, 2400, 4800, 9600, 19200, or 38400. (Line speed 38400 is supported for direct connect devices on DTC 16iX/DTC 16MX and DTC 72MX only, and the attached device must also support this speed. This field does not apply for DTC 16RX access to an HP 3000 in an MPE/iX host-based management environment; any value entered in this field for a DTC 16RX will be ignored.)

Record width

The number of characters for each record. For HP printers, the record width is usually 132 (the width of the line).

Modem type

Specifies the type of modem used in the connection.

0 means that modems will not be used.

1 means that a US modem will be used.

2 means that a European modem will be used.

3 means that a Five wires modem will be used. (Supported on DTC 16iX/DTC 16MX and DTC 72MX only.)

4 means that a US In Out modem will be used. (Supported on DTC 16iX/DTC 16MX and DTC 72MX only.)

5 means that a European Modem In Out will be used. (Supported on DTC 16iX/DTC 16MX and DTC 72MX only.)

Modem behavior

The DTC supports the following types of modem behavior which define the protocol used to establish a modem link between the DTC port and the attached device.

0 means no modem used.

1 specifies DCE modem behavior. Used for terminal connections. It uses a 2 minute timer to establish the link, and the DTC may disconnect if a carriage return is not received within a 2 minute interval.

2 specifies DTE modem behavior. Used for termtype 26 supported on MPE/iX for remote printer access.

3 specifies DCE modem behavior, except that it does not use a 2 minute timer to establish the link. The DTC does not disconnect the link after a 2 minute interval and the port remains open for connection establishment. (This option is supported on DTC 16iX/DTC 16MX and DTC 72MX only.)

This field does not apply for DTC 16RX access to an HP 3000 in an MPE/iX host-based management environment; any value entered in this field for a DTC 16RX will be ignored.

Data Length/Parity

Specifies the type of parity and data length will be used using this profile. The full list of supported data length with parity settings is as given:

None means that the 8 bits data length with parity none will be used.

Even means that the 7 bits data length with even parity will be used.

Odd means that 7 bits data length with odd parity will be used.

0's means that 7 bits data length with parity forced to 0 will be used.

1's means that 7 bits data length with parity forced to 1 will be used.

8eve means that 8 bits data length with even parity will be used. (Supported on DTC 16iX/DTC 16MX and DTC 72MX only.)

8odd means that 8 bits data length with odd parity will be used. (Supported on DTC 16iX/DTC 16MX and DTC 72MX only.)

Number of stop bits

Specifies the number of stop bits to be used for asynchronous characters. The possible values are 1 or 2 stop bits. This is applicable only for DTC 72MX, DTC 16MX and DTC 16iX. This field does not apply for DTC 16RX access to an HP 3000 in an MPE/iX host-based management environment and any value entered in this field for a DTC 16RX will be ignored.

Hardware handshaking?

Specifies whether hardware handshake will be used. Hardware handshake uses modem signals CTS and RTS to pace the data transfer from the DTC to the attached device. (Supported on DTC 16iX/16MX and DTC 72MX only. This field does not apply for DTC 16RX access to an HP 3000 in an MPE/iX host- based management environment; any value entered in this field for a DTC 16RX will be ignored.)

Initially spooled?

Specifies whether the device that uses this profile will be initially spooled when the system is rebooted. If the device was added dynamically, the device can be spooled any time after the device is created.

Enable flow control?

Specifies whether to enable flow control between DTC port and connected device. If set to Y, flow control is made with XON/XOFF characters. If set to N, the XON/XOFF characters sent from device are not interpreted by DTC. This function is also known as "software handshake". This field does not apply for DTC 16RX access to an HP 3000 in an MPE/iX host-based management environment, and any value entered in this field for a DTC 16RX will be ignored.

NLIO device?

Specifies whether native language devices will be used.

Device class

Device classes provide a means of accessing devices associated with a profile. Each device class name is up to eight alphanumeric characters beginning with a letter.

Up to 450 device class names may be used for a printer profile; the total number of supported, configured device classes defined in all profiles is 2000. Use the [Go To CLASSES] key to go to an Additional Device Class Names screen for entering additional device class names.

NOTE: If you are changing profile characteristics, you can see which ldevs and DTCs will be affected by the change by pressing the [Assoc Ldevs] function key on the profile screen corresponding to the profile you are changing. After pressing this key, you will see a list of all ldevs using this profile in the DTCs configured in DTS.
