Terminal Profile Screen (PC-Based)

Figure 7-4 “Terminal Profile Screen (PC-Based)” shows a Terminal Profile screen for PC-based management. Note that you only need to configure a terminal profile for nailed terminals if you are using PC-based management. Nailed terminals are ports with permanent ldevs assigned to them and can be accessed programmatically.

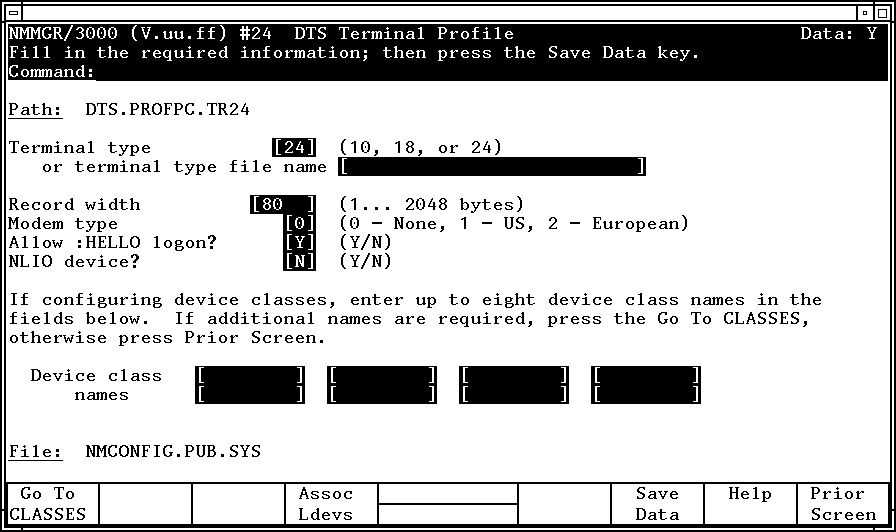

Figure 7-4 Terminal Profile Screen (PC-Based)

	NOTE: The Terminal Profile screen used for PC-based management contains a subset of the fields used by host-based management (Figure 7-2 “Terminal Profile Screen (Host-Based)”). Refer to the previous subsection for an explanation of the fields. The reason PC-based terminal profiles contain fewer fields is that most terminal characteristics are defined in the OpenView DTC Manager (on the PC).
