Configuration Worksheets

Before you proceed to NMMGR, it is recommended that you use the worksheets provided here to gather the necessary configuration information. Make copies of these worksheets and fill in the parameter information, then use these worksheets to guide you through configuration in NMMGR.

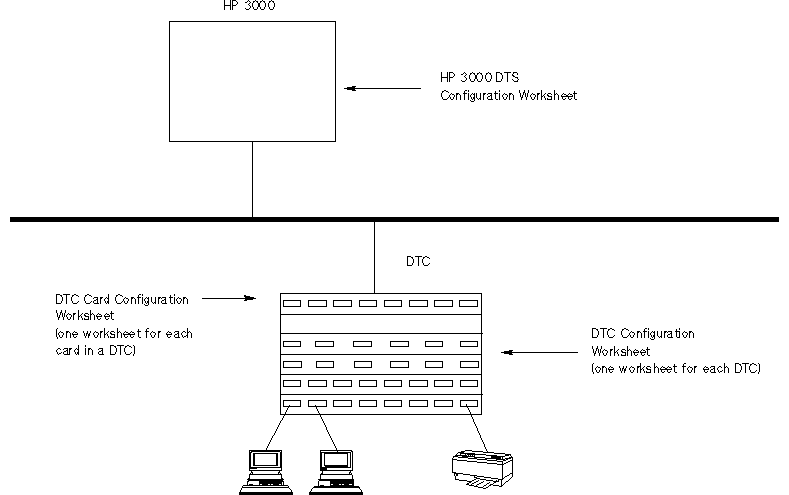

Figure 2-3 “Configuration Worksheets” shows which part of the configuration is covered by the worksheets.

Figure 2-3 Configuration Worksheets

HP 3000 DTC Configuration Worksheet

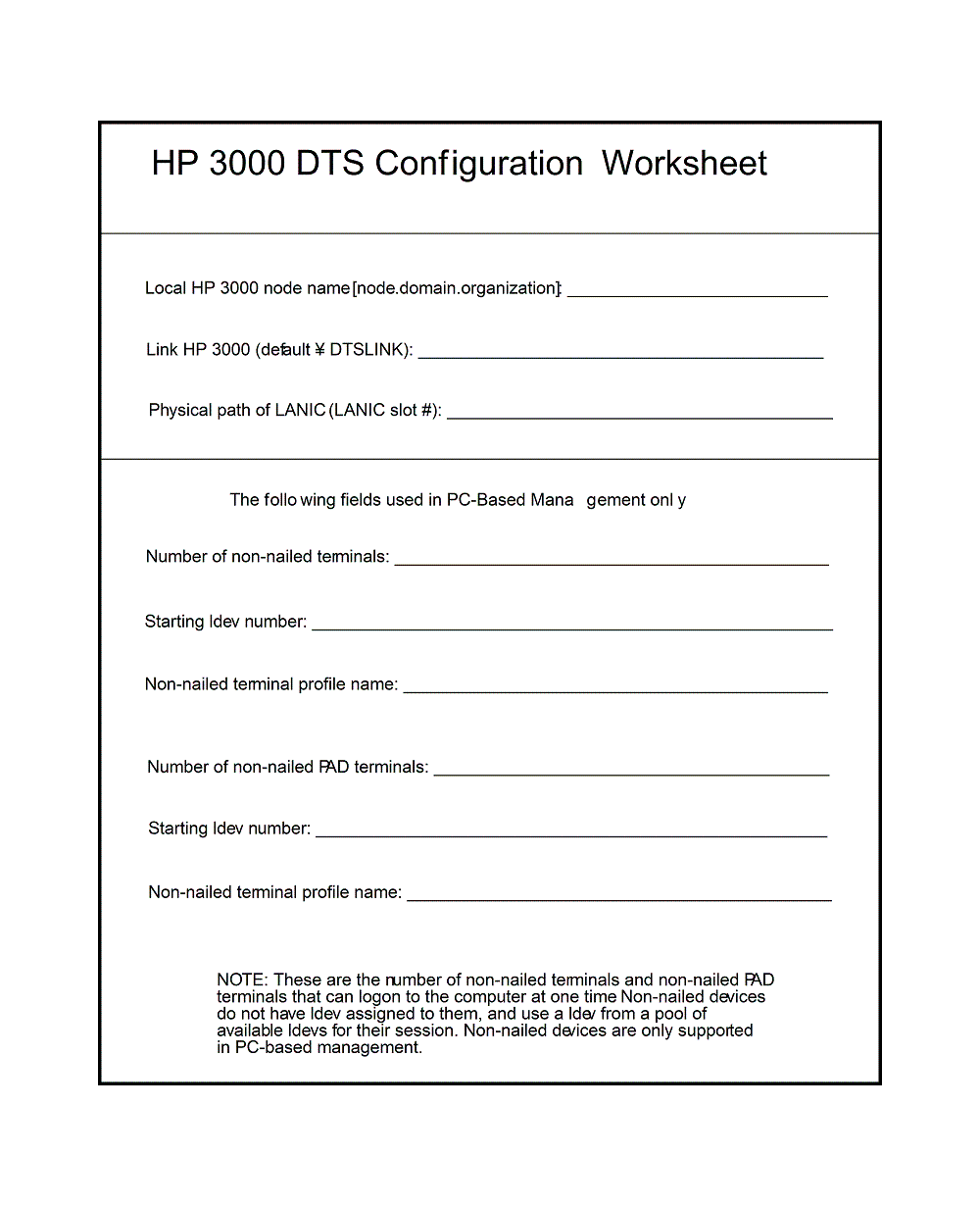

Fill out worksheet as shown in Figure 2-4 “DTS Configuration Worksheet” with configuration information as needed.

Figure 2-4 DTS Configuration Worksheet

DTC Configuration Worksheet

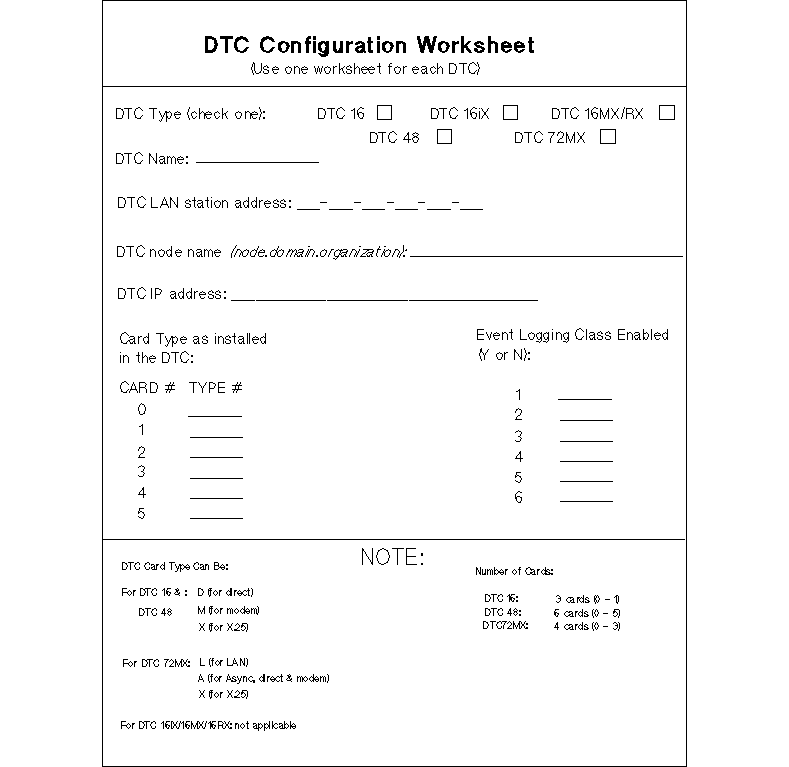

Fill out worksheet as shown in Figure 2-5 “DTC Configuration Worksheet” for each DTC you are configuring.

Figure 2-5 DTC Configuration Worksheet

DTC Card Configuration Worksheet

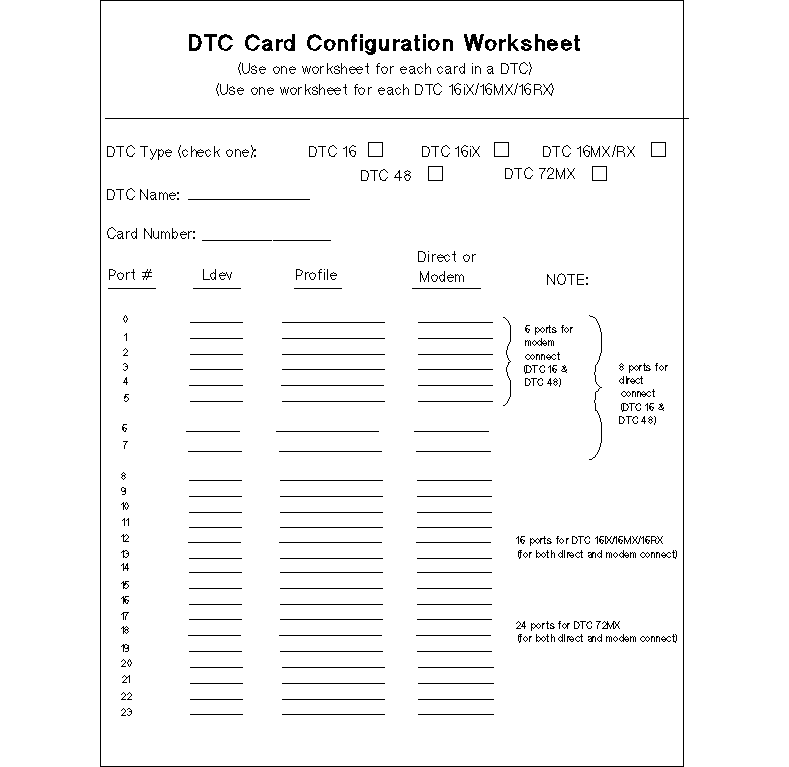

Fill out worksheet as shown in Figure 2-6 “DTC Card Configuration Worksheet” for each direct connect card you are configuring

Figure 2-6 DTC Card Configuration Worksheet
