Convert MPE V Termtype

The Convert MPE V Termtype screen is the second Workstation Configurator screen. To select this screen, enter X in the Go to form field on the Main Menu screen and press the [Enter] key. The Flow Control screen shown in Figure 4-2 “Flow Control Screen” is then displayed.

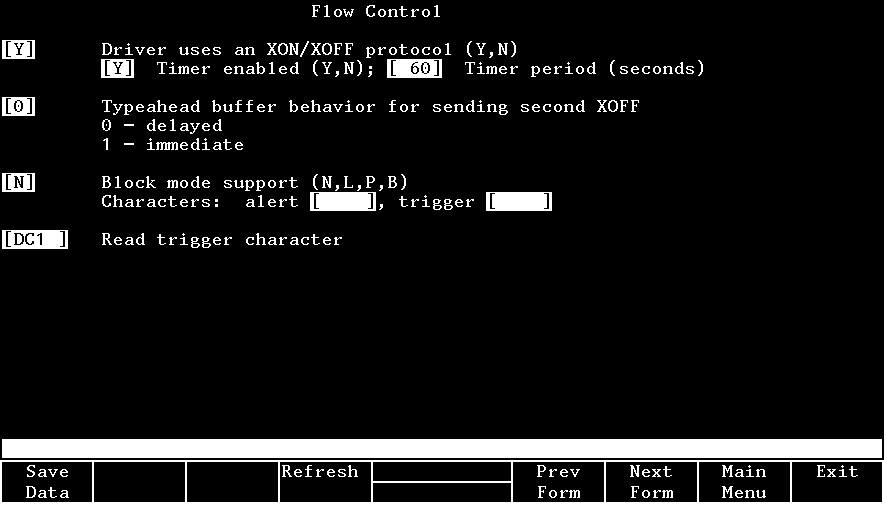

Figure 4-2 Flow Control Screen

Fields

The Convert MPE V Termtype screen lists only one field.

Convert MPE V termtype file to MPE/iX format (Y/N). Use this field to convert an MPE V termtype file to MPE/iX format.

	NOTE: After the termtype file has been converted to MPE/iX format, the file cannot be ported back to HP 3000 MPE V systems. Additionally, when termtype files are converted from MPE V to MPE/iX format, the termtype files might not function as they did on the MPE V system. Refer to the Asynchronous Serial Communications Programmer's Reference Manual for information on the differences between MPE V and MPE/iX.
