Configuration for SNA IMF/XL

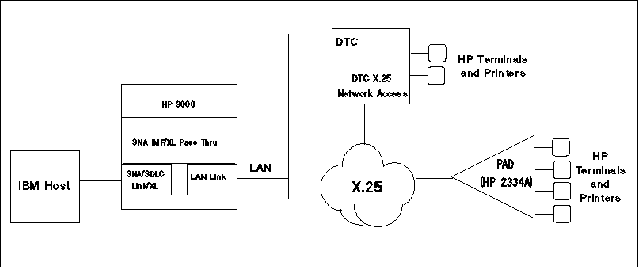

Figure 7-2 SNA IMF/XL Pass Thru Over an X.25 Network

1. LAN configuration. Make sure the Datacommunications and Terminal Controller (DTC) is a properly configured node on the Local Area Network. See the NS 3000/XL Local Area Network Configuration Guide for information on LAN configuration.

2. DTC X.25 Network Access configuration. Make sure that DTC X.25 Network Access is properly configured to communicate with the PAD devices on the X.25 network. For information on configuring DTC X.25 Network Access, see the X.25 XL System Access Configuration Guide and Using OpenView DTC Manager.

   	NOTE: You must have the X.25 XL System Access software installed on each MPE XL system that will be connected to the X.25 network.

3. PAD Terminal Configuration. Make sure any PAD terminals that will be used to run Pass Thru are configured properly. For information on PAD device configuration, see Configuring Systems for Terminals, Printers, and Other Serial Devices and Using OpenView DTC Manager.
