General Formats (Continued)
The ACCEPT Statement (Continued)
General Rules.
All Formats.
1. The END-ACCEPT phrase delimits the scope of the ACCEPT statement.
(See the section Explicit And Implicit Scope Terminators in the
chapter Concepts of the COBOL Language.) END-ACCEPT is treated as
a reserved word only if the MF(4) system directive is set. See
your COBOL System Reference for details.
Format 1.
2. The ACCEPT statement causes the transfer of data from the logical
or physical device. This data replaces the content of the data
item referenced by identifier. If the data item referenced by
identifier has an explicit or implicit usage of DISPLAY then
replacement is direct and without conversion, otherwise
conversion into the correct format takes place.
The size of a data transfer is determined by the device and the
run-time environment (see The SPECIAL-NAMES Paragraph for a list
of function-names that can be used and your COBOL System
Referencefor details of devices and the limits of data transfer
sizes).
If the device is capable of transferring data of the same size as
the receiving data item, the transferred data is stored in the
receiving data item. If otherwise, then:
a. If the size of the receiving data item (or the portion not
yet currently occupied by transferred data) exceeds the
size of the transferred data, the transferred data is
stored aligned to the left in the receiving data item (or
the portion not yet occupied) and additional data is
requested.
b. If the size of the transferred data exceeds the size of
the receiving data item (or portion not yet occupied by
transferred data), only the leftmost characters of the
transferred data are stored in the receiving data item (or
in the portion remaining). The remaining characters of
the transferred data which do not fit into the receiving
data item are ignored.
If the FROM option is not given, it is equivalent to
specifying FROM CONSOLE.
3. For MF and XOPEN only: If the function-name COMMAND-LINE, or a
mnemonic-name associated with the function-name COMMAND-LINE, is
specified, the contents of a system-dependent command-line buffer
are transferred to the receiving data item.
4. For MF and XOPEN only: If the mnemonic-name associated with
the function-name ARGUMENT-NUMBER is used, identifier receives
the number of arguments contained in the command line. (This
includes all arguments, those before the program-name, the
program-name itself, and any arguments following the
program-name. Hence no portability from types of program
invocation is expected.)
5. For MF and XOPEN only: When mnemonic-name is associated with
ARGUMENT-VALUE, the current command-line argument is placed into
identifier. The determination of which command-line argument is
current is as follows:
a. Initially, the first command-line argument is current.
b. A DISPLAY upon a mnemonic-name associated with
ARGUMENT-NUMBER sets the current command-line argument
number to the value of the identifier or literal specified
in the DISPLAY statement.
c. When an ACCEPT statement from a mnemonic-name associated
with ARGUMENT-NUMBER has been executed since the last
execution of a DISPLAY statement upon a mnemonic-name
associated with ARGUMENT-NUMBER, the current command-line
argument number is incremented prior to its use in this
ACCEPT statement.
If the current command-line argument number is 0, it is intended
that the program-name of the main program of the run unit will be
returned. However, the effects of variations on program
invocation can impact these results so that a utility or calling
program can be returned instead. (See your COBOL System
Reference for additional details.)
If the current command-line argument number is not in the range
0 to 99 inclusive or (XOPEN only) exceeds the number of
arguments on the command line when this ACCEPT statement is
executed, imperative-statement-1, if specified, will be executed.
6. For MF and XOPEN only: If the mnemonic-name associated with
the function-name ENVIRONMENT-VALUE is used then,
a. If a previous DISPLAY with a mnemonic-name associated with
an ENVIRONMENT-NAME has been performed, the value of the
designated environment-variable is placed into identifier.
b. If no previous DISPLAY with a mnemonic-name associated
with an ENVIRONMENT-NAME has been performed, or if the
specified environment-variable does not exist, the
imperative statement associated with an ON EXCEPTION
phrase is executed. The value in identifier is undefined
in this case.
7. The effect of retrieving command line arguments and the number of
arguments in a program that is called by another program is
defined as the same as if they were retrieved by the first
program in the run unit.
Format 2.
8. The ACCEPT statement causes the information requested to be
transferred to the data item specified by identifier according to
the rules of the MOVE statement. DATE, DAY ,DAY-OF-WEEK (ANS85
only) and TIME are conceptual data items and, therefore, are not
described in the COBOL program.
9. DATE is composed of the data elements: year of century, month of
year, and day of month. The sequence of the data element codes
shall be from high to low order (left to right): year of
century, month of year, and day of month. DATE, when accessed by
a COBOL program, behaves as if it had been described in the COBOL
program as an unsigned elementary numeric integer data item six
digits in length.
10. DAY is composed of the data elements: year of century and day of
year. The sequence of the data element codes shall be from high
order to low order (left to right): year of century, day of
year. Therefore, July 1, 1968 would be expressed as 68183. DAY,
when accessed by a COBOL program, behaves as if it had been
described in a COBOL program as an unsigned elementary numeric
integer data item five digits in length.
11. For ANS85 only: DAY-OF-WEEK is composed of a single data element
whose content represents the day of the week. DAY-OF-WEEK, when
accessed by a COBOL program, behaves as if it had been described
in a COBOL program as an unsigned elementary numeric integer data
item one digit in length. In DAY-OF-WEEK, the value 1 represents
Monday, 2 represents Tuesday,..., 7 represents Sunday.
12. TIME is composed of the data elements: hours, minutes, seconds
and hundredths of a second. TIME is based on elapsed time after
midnight on a 24-hour clock basis - thus, 2:41 P.M. would be
expressed as 14410000. TIME, when accessed by a COBOL program
behaves as if it had been described in a COBOL program as an
unsigned elementary numeric integer data item eight digits in
length. The minimum value of TIME is 00000000; the maximum value
of TIME is 23595999. If the hardware does not have the facility
to provide fractional parts of TIME, the value is converted to
the closest decimal approximation.
For MF only: Format 3.
13. The value returned from the ACCEPT FROM LINE NUMBER phrase is
always numeric. The value is implementation- dependent. See
your COBOL System Reference for details.
14. The FROM USER NAME option returns a user-id number on UNIX
systems, or spaces on systems where such a concept is
meaningless.
15. The FROM ESCAPE KEY option returns the two digit code generated
by a termination key.
16. The EXCEPTION STATUS item contains a three-digit numeric value
that identifies the type of exception condition that has occurred
during the execution of a CALL statement.
If EXCEPTION STATUS is to be examined this should be done
immediately following the CALL statement. There must be nothing
between the CALL and ACCEPT FROM EXCEPTION STATUS. File I-O
operations will alter the exception status value making it
unpredictable.
For MF only: Format 4.
17. This format of the ACCEPT statement accepts screen items,which
are defined in the Screen Section of the program, and allows full
access to the enhanced screen handling facilities.
For MF only: Formats 4 and 5.
18. The order of execution of an ACCEPT statement is always:
a. the AT phrase
b. the BLANK phrase
c. display of current contents of the data area
d. the BELL phrase
e. the ACCEPT operation.
19. The AT phrase gives the absolute address on the screen where the
ACCEPT operation is to start.
20. If integer-3 or identifier-4 is 4 digits long, the first two
digits specify the line, the second two the column. If 6 digits
long, the first three digits specify the line, while the second
three specify the column.
21. Certain combinations of line and column numbers have special
meanings, as follows:
a. Until the column comes within range, out of range column
values are reduced by the line length and the line value
is incremented.
b. Out of range line values cause the screen to scroll up one
line. The effect is the same as if the line number of the
bottom line had been specified.
c. If the line and column numbers given are both zero, the
ACCEPT starts at the position following that where the
preceding Format 4 or Format 5 ACCEPT operation finished.
Column 1 of each line is considered to follow the last
column of the previous line.
d. If the line number is zero, but a non-zero column number
is specified, the ACCEPT starts at the specified column,
on the line following that where the preceding Format 4 or
Format 5 ACCEPT operation finished.
e. If the column number is zero, but a non-zero line number
is specified, the ACCEPT starts on the specified line, at
the column following that where the preceding Format 4 or
Format 5 ACCEPT operation finished.
22. If the ON EXCEPTION phrase is specified, imperative-statement-1
is executed if the ACCEPT operation finishes with anything other
than a normal termination. If the NOT ON EXCEPTION phrase is
specified, imperative-statement-2 is executed if the ACCEPT
operation terminates normally. (See the section The CRT STATUS
Clause earlier in this chapter for possible types of
termination.)
For MF only: Format 5.
23. The ACCEPT operation starts at line 1, column 1 if no AT phrase
is specified.
24. If identifier is a group item and no MODE IS BLOCK phrase exists,
then those elementary subordinate items which have names other
than FILLER are accepted. They are positioned on the screen in
the order their descriptions appear in the Data Division and are
separated by the lengths of the FILLER items in the group. For
this purpose, the first position on a line is regarded as
immediately following the last position on the previous line.
The items are accepted in the same order.
Unless otherwise specified in the CURSOR IS clause (see the
section The CURSOR IS Clause earlier in this chapter), the cursor
is initially positioned at the start of the first item. As the
ACCEPT operation into each item is terminated, the cursor moves
to the start of the next item.
25. The MODE IS BLOCK phrase indicates that the identifier is to be
treated as an elementary item. Thus, even if it is a group item
it is displayed as one item.
26. If the PROMPT option is not specified, no character is output to
mark empty character-positions. PROMPT without the CHARACTER
option causes this to be done, using the character configured for
this purpose.
27. If the PROMPT option is not specified, those character-positions
into which the operator does not enter data produce spaces in the
data item.
28. The WITH phrase allows you to specify certain options available
during the operation. (See The Screen Section earlier in this
chapter for descriptions of these clauses.)
In addition to the options available as screen description
clauses, the following options can be used in the WITH phrase;
SPACE-FILL, ZERO-FILL, LEFT-JUSTIFY, RIGHT-JUSTIFY TRAILING-SIGN
and UPDATE. ZERO-FILL appears in this list and as a screen
description clause because it has two different uses. Its second
use is documented later in this chapter.
A configuration option is available which allows the entry of
data into numeric and numeric edited screen fields in free format
mode. In COBOL, nonedited numeric data items are intended for
holding data in an internal form; however, this format enables
such data items to appear on the screen. See your COBOL System
Reference for more details. If free format mode is in effect,
the data will appear automatically reformatted as follows:
* with the virtual decimal point represented by a period
* with the sign represented by a sign character ("-" for
minus; space for plus) which appears immediately before
the leftmost digit
* with zero suppression in all integer character positions,
except the least significant
* with left justification.
The SPACE-FILL, ZERO-FILL, LEFT-JUSTIFY, RIGHT-JUSTIFY and
TRAILING-SIGN options amend this format.
29. The SPACE-FILL option causes data in free format nonedited
numeric data items to appear on the screen with zero-suppression
in all integer character positions. This option affects only
free format, nonedited numeric data items. This takes effect
when initial data in the data item is displayed and again when
the ACCEPT operation into the data item is terminated. Any
leading sign is displayed in the rightmost space.
30. The ZERO-FILL option causes data in free format nonedited numeric
data items to appear on the screen with no zero-suppression.
This takes effect when initial data in the data item is displayed
and again when the ACCEPT operation into the data item is
terminated. (See the section The ZERO-FILL Clause earlier in
this chapter for this option's effect when used with alphabetic
or alphanumeric data items.)
31. The LEFT-JUSTIFY option is documentary only.
32. The RIGHT-JUSTIFY option causes operator-keyed characters to be
moved on the screen to the rightmost character positions of the
field. This option affects only free format nonedited numeric
data items. This takes effect upon display of the initial data
(the current contents displayed) in the data item and also upon
termination of the ACCEPT operation.
33. The TRAILING-SIGN option causes the operational sign to appear in
the rightmost character position of the field. This takes effect
upon display of initial data in the data item and also upon
termination of the ACCEPT operation. This option affects only
signed, nonedited numeric data items which are in free format
mode.
34. The UPDATE option causes the current contents (initial data) of
the data item to be displayed before the operator is prompted to
key in new input. If the operator does not key in any new
data, the initial data is then treated as though it were
operator-keyed. If the UPDATE option is not specified, the
display of initial data is a configuration option. (See your
COBOL System Reference for details of configuration options.)
35. The WITH UPPER option forces input into upper case.
36. The WITH LOWER option forces input into lower case.
37. If REDEFINES is used with identifier-1, the first description of
the redefined data area is used and subsequent descriptions are
ignored. If OCCURS or nested OCCURS are used the repeated data
item is expanded into the full number of times it occurs, so that
one definition is repeated for many fields.
38. If identifier-8 or integer-7 has a negative value, this
represents a request that no time-out "exception" should occur no
matter how long there is between/before key-strokes.
39. If identifier-8 or integer-7 is zero, this indicates that a
time-out should not occur if characters are waiting. However, if
no characters are waiting (when the ACCEPT is processed), then
issue a time-out immediately.
40. The ON EXCEPTION clause, if present, will be executed when a
time-out occurs and a TIME-OUT clause is specified. The NOT ON
EXCEPTION clause, if present, will be executed when a TIME-OUT
clause is specified but no time-out (or other exception) occurs.
41. If a time-out exception occurs, then the contents of any ACCEPT
resultant-field will be defined as follows:
a. Any field which has been partially modified will contain
any information which has already been received.
b. Fields which have "FULL" or "REQUIRED" attributes or any
other attribute which would normally impact partial field
input, will NOT be required to meet those attributes when
a partial field entry has occurred when a time-out
exception occurs.
c. The rules listed above apply whether or not the timeout
clock is reset upon each keystroke.
42. If at run time a positive timeout interval greater than
2,147,483,647 hundredths of a second is detected the timeout
value will be reset to 2,147,483,647 hundredths of a second
(which is approximately eight months).
43. The TIME-OUT value specifies the number of seconds (or tenths of
a second) after the ACCEPT statement begins processing until a
time-out exception occurs. A new ADISCF configuration option
controls whether or not the timeout clock is "reset" each time a
new keyboard action is detected. An application which wants some
ACCEPT statements to be handled with a RESET and some without,
can make specific calls to the ADIS run-time interface before or
after the ACCEPT statements that need changes from the default.
For example when ADIS was configured not to do resets, if a
program had:
ACCEPT INPUT-FIELD TIME-OUT AFTER +10
a timeout would occur after 10 seconds had elapsed from the
beginning of the ACCEPT, even if some characters were entered
after 5 seconds into the ACCEPT processing.
If, on the other hand, ADIS were configured to do resets, if a
program had the same code given above, then each time a new
character were entered, the TIMEOUT "clock" would be reset to
zero.
44. If a timeout exception occurs and no ON EXCEPTION phrase is
specified, the CRT Status keys (if specified) are updated, the
application continues to the next logical phrase, and the
contents of the ACCEPT receiving field are as defined above.
(The above is true whether or not a NOT ON EXCEPTION phrase is
specified.)
45. All references to (NOT) ON EXCEPTION phrases also apply to (NOT)
ON ESCAPE phrases.
Format 1 and 5.
46. For alphanumeric data items, the size of the field that is
accepted from the screen during an ACCEPT statement is exactly
the same size as the target field. Therefore, if you want data
to appear at the right hand side of a field, you must enter it
there.
The ADD Statement
Function.
The ADD statement causes two or more numeric operands to be summed and
the result to be stored.
General Formats.

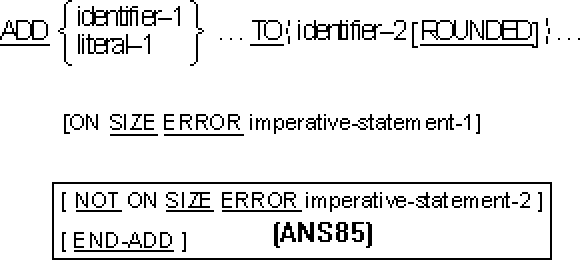

Format 1.
![[]](../../pic3k/M015064/FFN1963c50.gif)

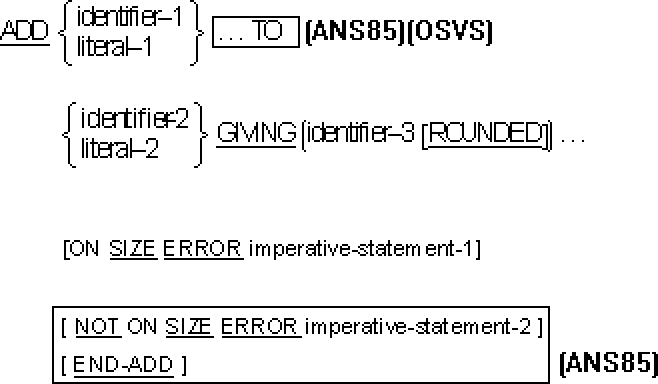

Format 2.
![[]](../../pic3k/M015064/FFN1973c50.gif)

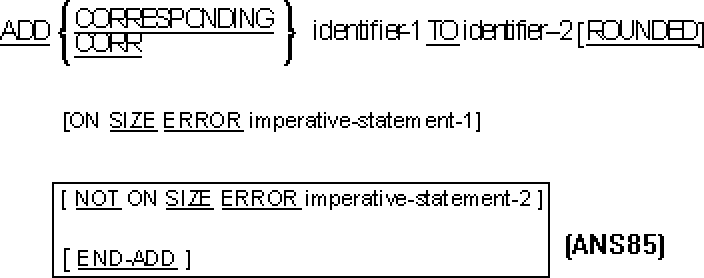

Format 3.
![[]](../../pic3k/M015064/FFN1983c50.gif)
Syntax Rules.
All Formats.
1. In Formats 1 and 2, each identifier must refer to an elementary
numeric item, except that in Format 2 each identifier following
the word GIVING must refer to either an elementary numeric item or
an elementary numeric edited item. In Format 3, each identifier
must refer to a group item.
2. Each literal must be a numeric literal.
3. The composite of operands must not contain more than 18 digits
(see the section Arithmetic Statements earlier in this chapter).
a. In Format 1 the composite of operands is determined by
using all of the operands in a given statement.
b. In Format 2 the composite of operands is determined by
using all of the operands in a given statement excluding
the data items that follow the word GIVING.
c. In Format 3 the composite of operands is determined
separately for each corresponding pair of data items.
4. In Format 3, CORR is an abbreviation for CORRESPONDING.
5. For OSVS, VSC2, and MF only: Floating-point literals and
floating-point data items can be used anywhere a numeric data item
or literal can be specified.
General Rules.
All Formats.
1. See the section The ROUNDED Phrase, The ON SIZE ERROR Phrase, The
CORRESPONDING Phrase, Arithmetic Statements, Overlapping Operands
and Multiple Results In Arithmetic Statements in this chapter; the
section Explicit And Implicit Scope Terminators in the chapter
Concepts of the COBOL Language, and the section Delimited Scope
Statements in the chapter Concepts of a COBOL Program.
2. If Format 1 is used, the values of the operands preceding the word
TO are added together, then this sum is added to the current value
of identifier-2 storing the result immediately into identifier-2,
and repeating this process respectively for each successive
operand following the word TO in left-to-right order.
3. If Format 2 is used, the value of the operands preceding the word
GIVING are added together, then the sum is stored as the new value
of each data item referenced by identifier-3, the resultant
identifier.
4. If Format 3 is used, data items in identifier-1 are added to and
stored in corresponding data items in identifier-2.
5. For MF only: Your COBOL system ensures that enough places are
carried so as not to lose any significant digits during execution.
The ALTER Statement
Function.
The ALTER statement modifies a predetermined sequence of operations.
For ANS85 only: The ALTER statement is classed as an obsolete element in
the ANSI'85 standard and is scheduled to be deleted from the next full
revision of the ANSI Standard .
For MF only: All dialects in this COBOL implementation fully support
this syntax. Refer to your COBOL System Reference for details on using
the FLAGSTD directive to detect all occurrences of this syntax .
For XOPEN only: Although it is a part of the standard COBOL definition,
this verb is explicitly excluded from the X/Open COBOL language
definitions and should not be used in a conforming X/Open COBOL source
program .
General Format.
![[]](../../pic3k/M015064/FFN1993c50.gif)
Syntax Rules.
1. Each procedure-name-1, procedure-name-3,..., is the name of a
paragraph that contains a single sentence consisting of a GO TO
statement without the DEPENDING phrase.
2. Each procedure-name-2, procedure-name-4,..., is the name of a
paragraph or section in the Procedure Division.
General Rules.
1. Execution of the ALTER statement modifies the GO TO statement in
the paragraph named procedure-name-1, procedure-name-3,..., so
that subsequent executions of the modified GO TO statements cause
transfer of control to procedure-name-2, procedure-name-4,...,
respectively. Modified GO TO statements in independent segments
can, under some circumstances, be returned to their initial states
(see the section Independent Segments in the chapter Segmentation
in your Language Reference - Additional Topics).
2. A GO TO statement in a section whose segment-number is greater
than or equal to 50 must not be referred to by an ALTER statement
in a section with a different segment- number.
All other uses of the ALTER statement are valid and are performed
even if procedure-name-1, procedure-name-3 is in an overlayable
fixed segment.
