General Formats (Cont.)

For ANS85:  Intrinsic Functions (Cont.)

For ANS85 only:  The ORD Function.

Description.

The ORD function returns an integer value that is the ordinal position of
argument-1 in the collating sequence for the program.  The lowest ordinal
position is 1.  The type of this function is integer.

General Format.




Argument.

Argument-1 must be one character in length and must be class alphabetic
or alphanumeric.

Returned Value.

The returned value is the ordinal position of argument-1 in the collating
sequence for the program.

For ANS85 only:  The ORD-MAX Function.

Description.

The ORD-MAX function returns a value that is the ordinal number of the
argument-1 that contains the maximum value.  The type of this function is
integer.

General Format.




Argument.

If more than one argument-1 is specified, all arguments must be of the
same class, except alphabetic and alphanumeric arguments which can be
mixed.

Returned Values.

   1.  The returned value is the ordinal number that corresponds to the
       position of the argument-1 having the greatest value in the
       argument-1 series.

   2.  The comparisons used to determine the greatest valued argument are
       made according to the rules for simple conditions.  See the
       section Simple Conditions earlier in this chapter.

   3.  If more than one argument-1 has the same greatest value, the
       number returned corresponds to the position of the leftmost
       argument-1 having that value.

For ANS85 only:  The ORD-MIN Function.

Description.

The ORD-MIN function returns a value that is the ordinal number of the
argument-1 that contains the minimum value.  The type of this function is
integer.

General Format.




Argument.

If more than one argument-1 is specified, all arguments must be of the
same class, except alphabetic and alphanumeric arguments which may be
mixed.

Returned Values.

   1.  The returned value is the ordinal number that corresponds to the
       position of the argument-1 having the lowest value in the
       argument-1 series.

   2.  The comparisons used to determine the lowest valued argument are
       made according to the rules for simple conditions.  See the
       section Simple Conditions earlier in this chapter.

   3.  If more than one argument-1 has the same lowest value, the number
       returned corresponds to the position of the leftmost argument-1
       having that value.

For ANS85 only:  The PRESENT-VALUE Function.

Description.

The PRESENT-VALUE function returns a value that approximates the present
value of a series of future period-end amounts specified by argument-2 at
a discount rate specified by argument-1.  The type of this function is
numeric.

General Format.




Arguments.

   1.  Argument-1 and argument-2 must be of the class numeric.

   2.  The value of argument-1 must be greater than -1.

Returned Values.

   1.  The returned value is an approximation of the summation of a
       series of calculations with each term in the following form:

              argument-2 / (1+argument-1) ** n

       There is one term for each occurrence of argument-2.  The
       exponent, n, is incremented from one by one for each term in the
       series.

   2.  Floating-point format is used for numeric non-integer results.

For ANS85 only:  The RANDOM Function.

Description.

The RANDOM function returns a numeric value that is a pseudo-random
number from a rectangular distribution.  The type of this function is
numeric.

General Format.




Arguments.

   1.  If argument-1 is specified, it must be zero or a positive integer.
       It is used as the seed value to generate a sequence of
       pseudo-random numbers.

   2.  If a subsequent reference specifies argument-1, a new sequence of
       pseudo-random numbers is started.

   3.  For MF only:    If the first reference to this function in the run
       unit does not specify argument-1, the seed value of zero is used .

   4.  In each case, subsequent references without specifying argument-1
       return the next number in the current sequence.

Returned Values.

   1.  The returned value is greater than or equal to zero and less than
       one.

   2.  For a given seed value on a given implementation, the sequence of
       pseudo-random numbers will always be the same.

   3.  The domain of argument-1 values will yield distinct sequences of
       pseudo-random numbers.  This subset includes the values from 0
       through at least 32767.

   4.  Floating-point format is used for numeric non-integer results.

For ANS85 only:  The RANGE Function.

Description.

The RANGE function returns a value that is equal to the value of the
maximum argument minus the value of the minimum argument.  The type of
this function depends upon the argument types as follows:

Argument Type                               Function Type

---------------------------------------------------------------------------------------

All arguments integer                       Integer

Numeric                                     Numeric

(some arguments can be integer)

General Format.




Argument.

Argument-1 must be class numeric.

Returned Values.

   1.  The returned value is equal to the greatest value of argument-1
       minus the least value of argument-1.

   2.  The comparisons used to determine the greatest and least values
       are made according to the rules for simple conditions.  See the
       section Simple Conditions earlier in this chapter.

   3.  If the value of argument-1 is numeric non-integer, results are
       returned in floating-point format.

For ANS85 only:  The REM Function.

Description.

The REM function returns a numeric value that is the remainder of
argument-1 divided by argument-2.  The type of this function is numeric.

General Format.




Arguments.

   1.  Argument-1 and argument-2 must be class numeric.

   2.  The value of argument-2 must not be zero.

Returned Values.

   1.  The returned value is the remainder of argument-1 / argument-2.
       It is defined as the expression:

            argument-1 -(argument-2 * FUNCTION INTEGER-PART (argument-1
            / argument-2))

   2.  Floating-point format is used for numeric non-integer results.

For ANS85 only:  The REVERSE Function.

Description.

The REVERSE function returns a character string whose length and
characters are exactly the same as argument-1, except that the characters
are in reverse order.  The type of this function is alphanumeric.

General Format.




Argument.

Argument-1 must be class alphabetic or alphanumeric and must be at least
one character in length.

Returned Value.

If argument-1 is a character string of length n, the returned value is a
character string of length n such that for 1 j n, the character in
position j of the returned value is the character from position n-j+1 of
argument-1.

For ANS85 only:  The SIN Function.

Description.

The SIN function returns a numeric value that approximates the sine of an
angle or arc, expressed in radians, that is specified by argument-1.  The
type of this function is numeric.

General Format.




Argument.

Argument-1 must be class numeric.

Returned Values.

   1.  The returned value is the approximation of the sine of argument-1
       and is greater than or equal to -1 and less than or equal to +1.

   2.  Floating-point format is used for numeric non-integer results.

For ANS85 only:  The SQRT Function.

Description.

The SQRT function returns a numeric value that approximates the square
root of argument-1.  The type of this function is numeric.

General Format.




Arguments.

   1.  Argument-1 must be class numeric.

   2.  The value of argument-1 must be zero or positive.

Returned Values.

   1.  The returned value is the absolute value of the approximation of
       the square root of argument-1.

   2.  Floating-point format is used for numeric non-integer results.

For ANS85 only:  The STANDARD-DEVIATION Function.

Description.

The STANDARD-DEVIATION function returns a numeric value that approximates
the standard deviation of its arguments.  The type of this function is
numeric.

General Format.




Argument.

Argument-1 must be class numeric.

Returned Values.

   1.  The returned value is the approximation of the standard deviation
       of the argument-1 series.

   2.  The returned value is calculated as follows:

          a.  The difference between each argument-1 value and the
              arithmetic mean of the argument-1 series is calculated and
              squared.

          b.  The values obtained are added.  This quantity is divided by
              the number of values in the argument-1 series.

          c.  The square root of the quotient obtained is calculated.
              The returned value is the absolute value of this square
              root.

   3.  If the argument-1 series consists of only one value, or if the
       argument-1 series consists of all variable occurrence data items
       and the total number of occurrences for all of them is one, the
       returned value is zero.

   4.  Floating-point format is used for numeric non-integer results.

For ANS85 only:  The SUM Function.

Description.

The SUM function returns a value that is the sum of the arguments.  The
type of this function depends upon the argument types as follows:

Argument Type                               Function Type

---------------------------------------------------------------------------------------

All arguments integer                       Integer

Numeric                                     Numeric

(some arguments may be integer)

General Format.




Argument.

Argument-1 must be class numeric.

Returned Values.

   1.  The returned value is the sum of the arguments.

   2.  If the argument-1 series are all integers, the value returned is
       an integer.

   3.  If the argument-1 series are not all integers, a numeric value is
       returned in floating-point format.

For ANS85 only:  The TAN Function.

Description.

The TAN function returns a value that approximates the tangent of an
angle or arc, expressed in radians, that is specified by argument-1.  The
type of this function is numeric.

General Format.




Argument.

Argument-1 must be class numeric.

Returned Values.

   1.  The returned value is the approximation of the tangent of
       argument-1.

   2.  Floating-point format is used for numeric non-integer results.

For ANS85 only:  The UPPER-CASE Function.

Description.

The UPPER-CASE function returns a character string that is the same
length as argument-1 with each lowercase letter replaced by the
corresponding uppercase letter.  The type of this function is
alphanumeric.

General Format.




Argument.

Argument-1 must be class alphabetic or alphanumeric and must be at least
one character in length.

Returned Values.

   1.  The same character string as argument-1 is returned, except that
       each lowercase letter is replaced by the corresponding uppercase
       letter.

   2.  The character string returned has the same length as argument-1.

For ANS85 only:  The VARIANCE Function.

Description.

The VARIANCE function returns a numeric value that approximates the
variance of its arguments.  The type of this function is numeric.

General Format.




Argument.

Argument-1 must be class numeric.

Returned Values.

   1.  The returned value is the approximation of the variance of the
       argument-1 series.

   2.  The returned value is defined as the square of the standard
       deviation of the argument-1 series.  (See the section The
       STANDARD-DEVIATION Function, earlier in this chapter.)

   3.  If the argument-1 series consists of only one value, or if the
       argument-1 series consists of all variable occurrence data items
       and the total number of occurrences for all of them is one, the
       returned value is zero.

   4.  Floating-point format is used for numeric non-integer results.

For ANS85 only:  The WHEN-COMPILED Function.

Description.

The WHEN-COMPILED function returns the date and time the program was
compiled.  The type of this function is alphanumeric.

General Format.




Returned Values.

   1.  The character positions returned, numbered from left to right,
       are:

Character                   Contents
Positions

-------------------------------------------------------

1-4       Four numeric digits of the year in the
          Gregorian calendar.

5-6       Two numeric digits of the month of the year,
          in the range 01 through 12.

7-8       Two numeric digits of the day of the month,
          in the range 01 through 31.

9-10      Two numeric digits of the hours past
          midnight, in the range 00 through 23.

11-12     Two numeric digits of the minutes past the
          hour, in the range 00 through 59.

13-14     Two numeric digits of the seconds past the
          minute, in the range 00 through 59.

15-16     Two numeric digits of the hundredths of a
          second past the second, in the range 00
          through 99.

          If the system does not have the facility to
          provide fractional parts of a second, the
          value 00 is returned.

Character                   Contents
Positions
-------------------------------------------------------

17        Either the character "-", the character "+",
          or the character "0".  The character "-" is
          returned if the local time indicated in the
          previous character positions is behind
          Greenwich Mean Time.  The character "+" is
          returned if the local time indicated is the
          same or ahead of Greenwich Mean Time.  The
          character "0" is returned if the system on
          which this function is evaluated does not
          have the facility to provide the local time
          differential factor.  If the system does not
          have the facility to provide the local time
          differential factor, the value 00000 is
          returned in character positions 17 through
          21.

18-19     If character position 17 is "-", two numeric
          digits are returned in the range 00 through
          12, indicating the number of hours that the
          reported time is behind Greenwich Mean Time.
          If character position 17 is "+", two numeric
          digits are returned in the range 00 through
          13 indicating the number of hours that the
          reported time is ahead of Greenwich Mean
          Time.  If character position 17 is "0", the
          value 00 is returned.

20-21     Two numeric digits are returned in the range
          00 through 59 indicating the number of
          additional minutes that the reported time is
          ahead of or behind Greenwich Mean Time,
          depending on whether character position 17 is
          "+" or "-" , respectively.  If character
          position 17 is "0", the value 00 is returned.

2.      The returned value is the date and time of compilation of the
        source program that contains this function.  If the program is a
        contained program, the returned value is the compilation date and
        time associated with the separately compiled program in which it
        is contained.

3.      The returned value denotes the same time as the compilation date
        and time if provided in the listing of the source program and in
        the generated object code for the source program, although their
        representations and precisions may differ.

The ACCEPT Statement

Function.

The ACCEPT statement causes data keyed at the console or supplied by the
operating system to be made available to the program in a specified data
item.

General Formats.

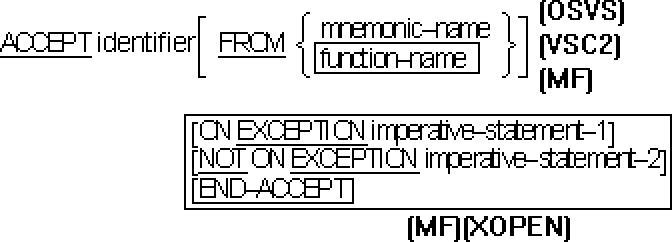

Format 1.

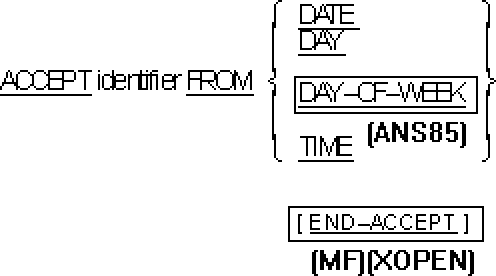

Format 2.

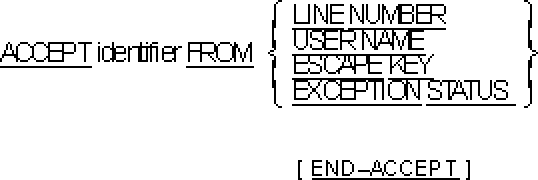

For MF only:  Format.

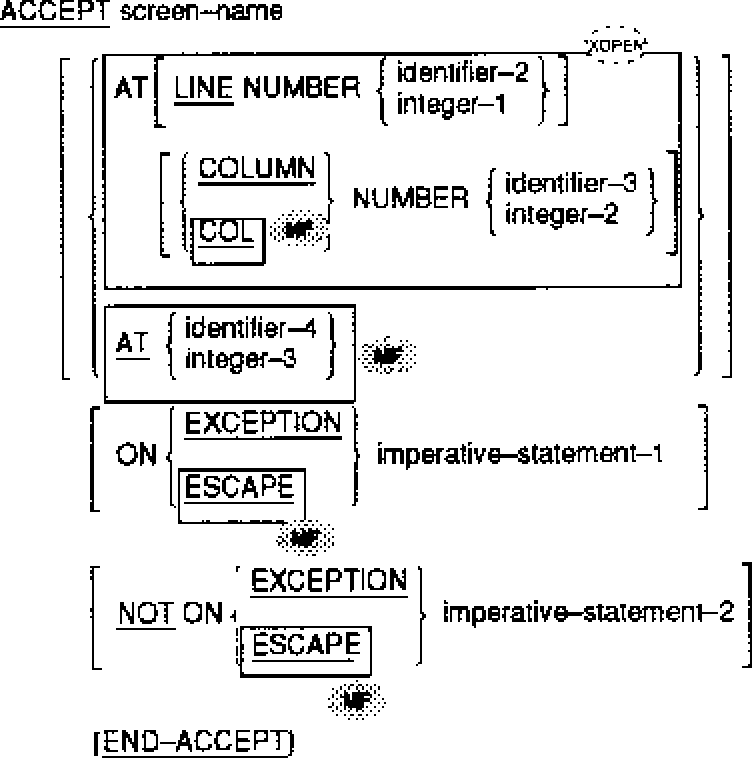

Format 4 (MF) (XOPEN).

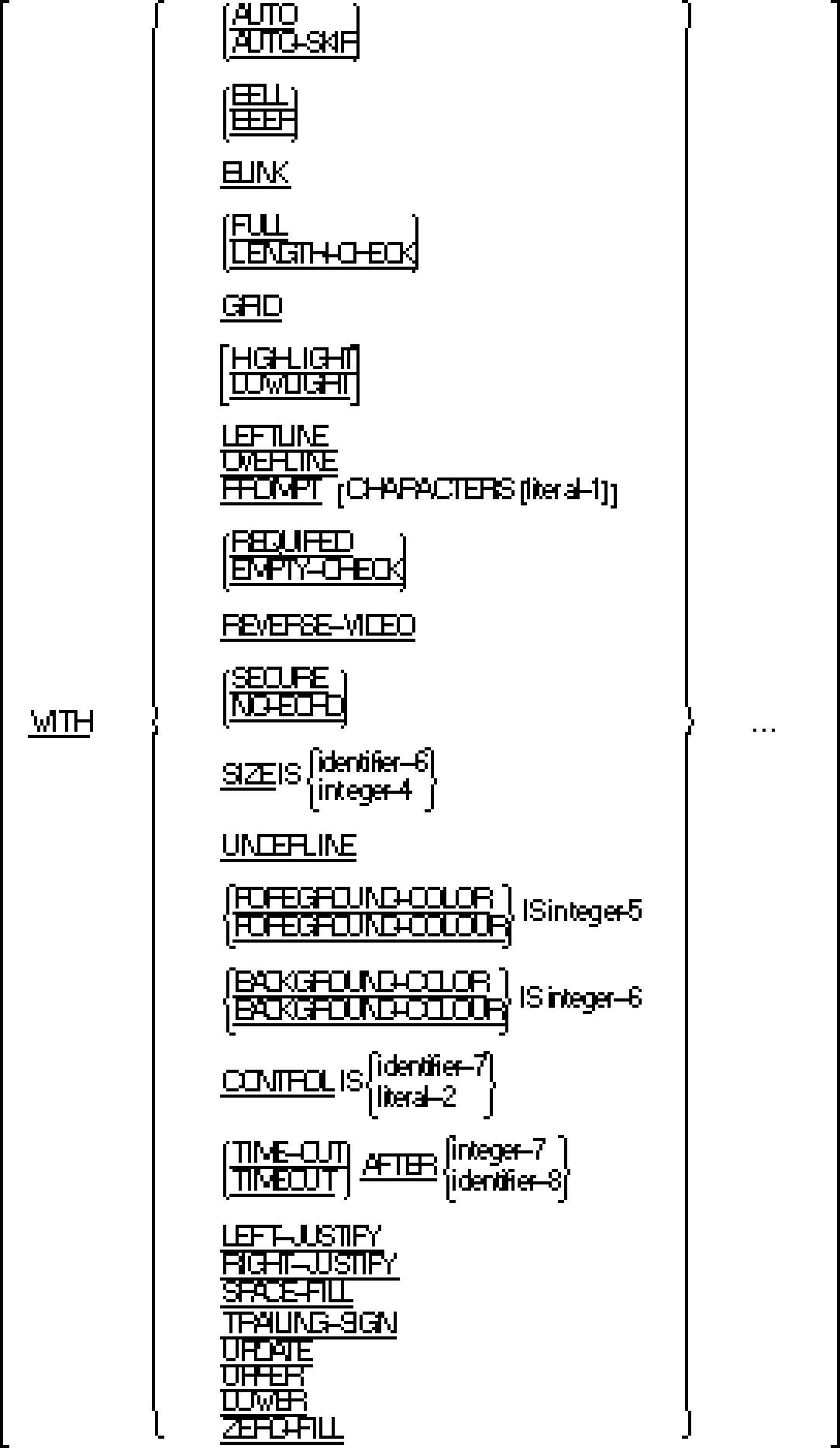

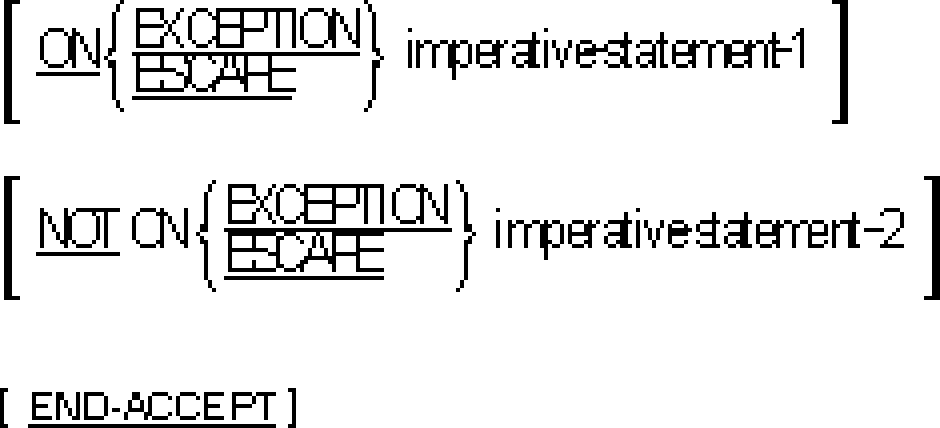

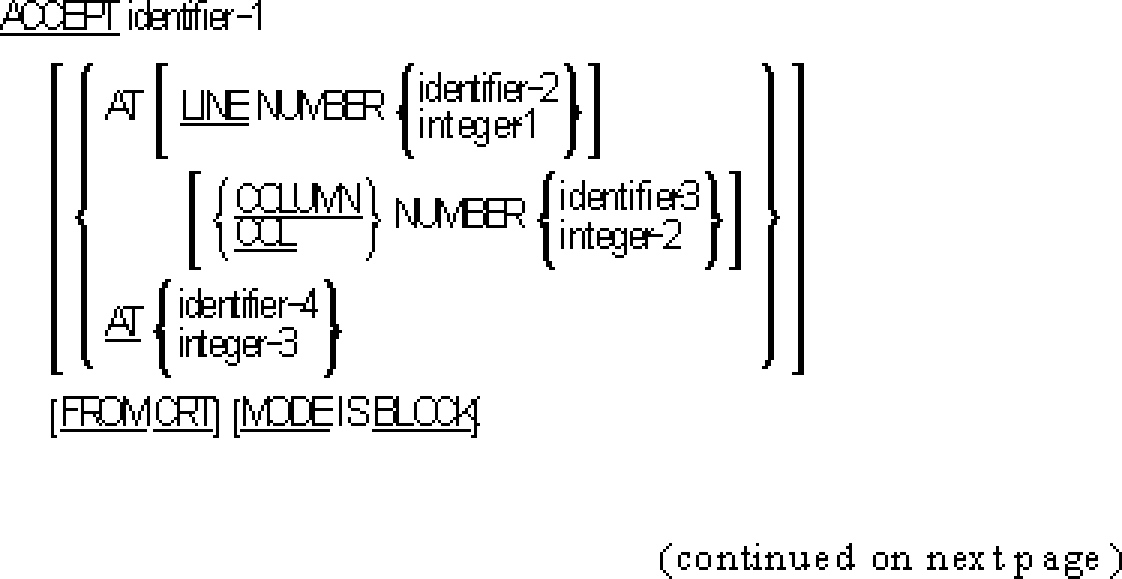

Format 5 (MF).










Syntax Rules.

Format 1.

   1.  The mnemonic-name in Format 1 must be associated with a
       function-name in the SPECIAL-NAMES paragraph in the Environment
       Division.  See General Rule 12 in the section The SPECIAL-NAMES
       Paragraph in this chapter for a list of valid function-names.

   2.  Alternatively, function-name can itself be used instead of an
       associated mnemonic-name (OSVS)(VSC2)(MF).

   3.  When mnemonic-name is associated with ARGUMENT-NUMBER in the
       SPECIAL-NAMES paragraph, then identifier must be an unsigned
       integer (MF)(XOPEN).

   4.  When mnemonic-name is associated with ARGUMENT-VALUE or
       ENVIRONMENT-VALUE in the SPECIAL-NAMES paragraph, then identifier
       must be an alphanumeric data item (MF)(XOPEN).

   5.  Identifier can be a USAGE DISPLAY-1 (DBCS) item or an external
       floating-point data item (MF)(VSC2).

       Identifier can be an internal floating-point data item (MF).

   6.  For MF and XOPEN only:    The EXCEPTION phrase may be specified
       only if FROM is specified with either ENVIRONMENT-NAME or
       ARGUMENT-VALUE, or with the mnemonic-names associated with them.

For OSVS, VSC2 and MF only:  Format 2.

7.      Identifier can be an internal floating-point or external
        floating-point item.

For MF only:  Format 3.

8.      No restrictions apply to the class, category or usage of the
        identifier.  However, the actual value placed into the identifier
        and the validity of moving such values to the identifier are
        dependent on the FROM clause.  See the Format 3 General Rules for
        more information.

For MF only:  Format 4.

9.      Screen-name cannot be an item with an OCCURS clause.

For MF only:  Formats 4 and 5.

10.     The LINE and COLUMN phrases can appear in any order.

11.     EXCEPTION and ESCAPE are equivalent.

12.     Identifier-4 must be a PIC 9(4) or a PIC 9(6) data item.

For MF only:  Format 5.

13.     Identifier-8 must be an integer.  It can be signed.

14.     Integer-7 can be signed.

15.     An ACCEPT statement whose operand is not a screen-name is treated
        as a Format 5 ACCEPT statement if it has an AT phrase, a FROM
        phrase with the CRT option, a WITH phrase, a MODE IS BLOCK
        phrase, or an EXCEPTION phrase; or if it has no FROM phrase but
        the CONSOLE option clause is specified in the SPECIAL-NAMES
        paragraph.  If it has the FROM phrase with the CONSOLE option, or
        if it has no FROM phrase and the CONSOLE IS CRT clause is not
        specified in the SPECIAL-NAMES paragraph, it is treated as a
        Format 1 ACCEPT statement.

16.     The phrases following the identifier can be in any order.

17.     The SPACE-FILL, ZERO-FILL, LEFT-JUSTIFY, RIGHT-JUSTIFY, PROMPT
        and TRAILING-SIGN options are allowed only if the operand is an
        elementary item.

18.     Elementary data items in identifier-1 must be of USAGE DISPLAY.

19.     No elementary item in identifier-1 may be longer than 8191 bytes.
        If the MODE IS BLOCK phrase is used, the whole of identifier-1
        must be no longer than 8191 bytes.

MPE/iX 5.0 Documentation
