HP Performance Collection Software User's Manual (for MPE Systems)

Chapter 2
           Performance Collection SoftwareAn Overview

Introduction

Performance Collection Software consists of four basic programs.  This
chapter discusses how these programs interact, describes the modes in
which Performance Collection Software functions, and provides information
about softkeys and native language support (special features of the
UTILITY and EXTRACT programs).

The basic programs are

   *   SCOPE (or SCOPEXL, depending on your system),

   *   SCOPE2 (or SCOPEXL2),

   *   UTILITY, and

   *   EXTRACT.

Performance Collection Software Schematic

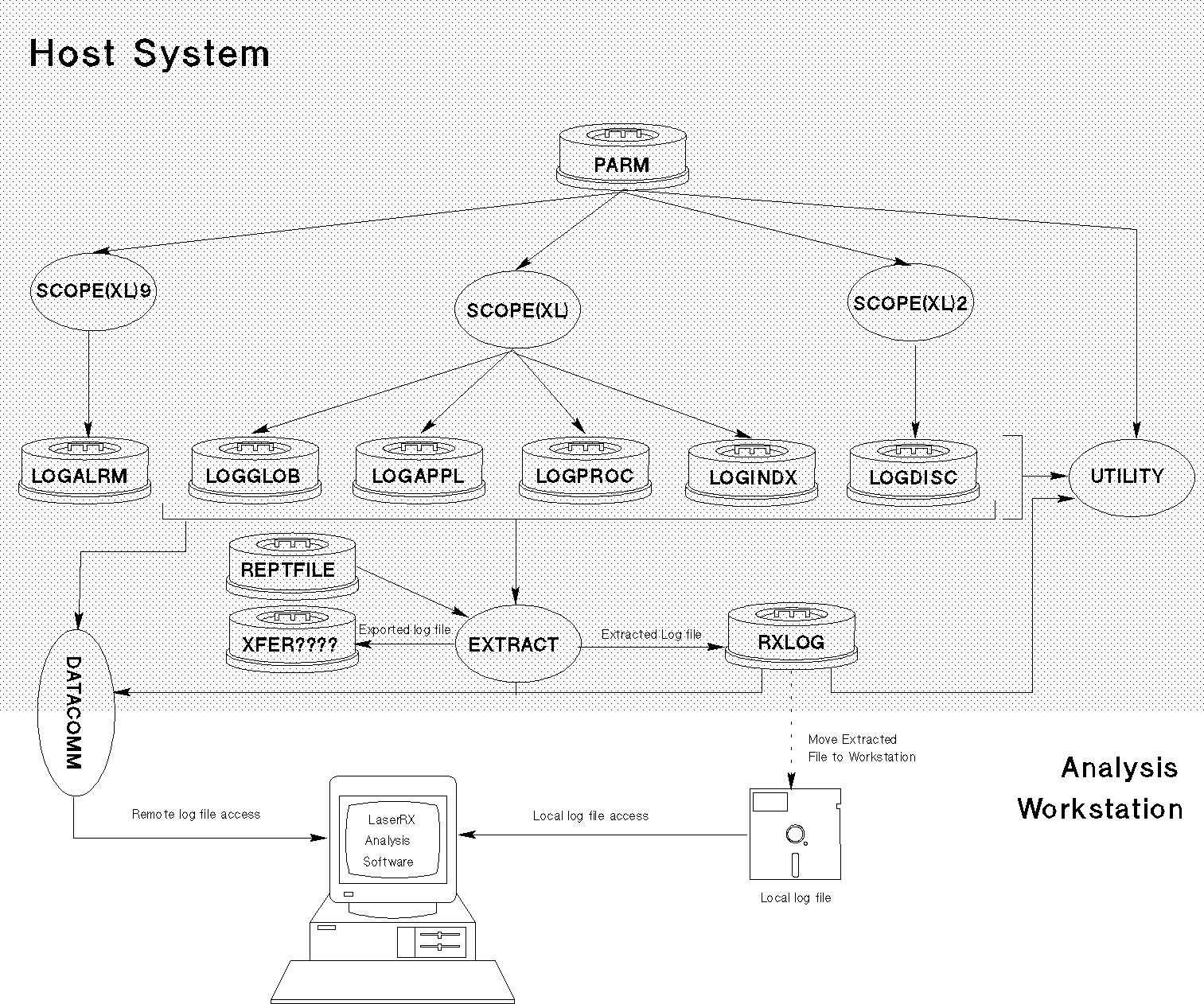

The following schematic diagram shows the relationship between the
different components of the Performance Collection Software system.  The
components comprising the host programs are shaded.


          Figure 2-1.  Schematic of Performance Collection Software Components

The Host component contains the following programs and files:

-------------------------------------------------------------------
|              |                                                  |
| SCOPE or     | Main performance data-collector program.         |
| SCOPEXL      |                                                  |
|              |                                                  |
| SCOPE2 or    | Disc space data-collector program.               |
| SCOPEXL2     |                                                  |
|              |                                                  |
| EXTRACT      | Program to extract selected data from log files. |
|              |                                                  |
| UTILITY      | Program to perform various utility functions.    |
|              |                                                  |
| DATACOMM     | Library code to allow work stations to access    |
|              | host log files.                                  |
|              |                                                  |
| PARM file    | User-generated parameter file that controls data |
|              | collection.                                      |
|              |                                                  |
| LOG...       | Log files that contain raw performance data.     |
|              |                                                  |
| Extracted    | Log files that contain selected performance      |
| LOG files    | data.  This file can be accessed on the host or  |
|              | moved to the HP LaserRX/MPE PC analysis          |
|              | workstation for local access.                    |
|              |                                                  |
-------------------------------------------------------------------

Current HP LaserRX/MPE Users

Significant changes were made to enhance the Performance Collection
Software product since the version-A releases (versions A.nn.nn) of HP
LaserRX/MPE. These changes include the following:

   *   New log file formats.

   *   A command-driven user interface for UTILITY and EXTRACT.

   *   The ability to log disc-space metrics.

   *   New THRESHOLD directives.

   *   Increased and enhanced functionality for UTILITY and EXTRACT.

   *   New log files in the SCOPE.SYS group.

For details on Performance Collection Software enhancements, see chapter
8.


CAUTION  The command-driven user interface and the new log file formats
         require that you alter your UTILITY and EXTRACT batch jobs, and
         that you convert existing log files to the new format.  For
         these reasons, we strongly recommend that you review the
         information on the UTILITY and EXTRACT programs before you try
         to use the new versions.

         The operation of SCOPE(XL) has not changed.  The batch job that
         runs the data collector should not require any changes.
