HP LaserRX/MPE User's Manual: Analysis Software

Record Command

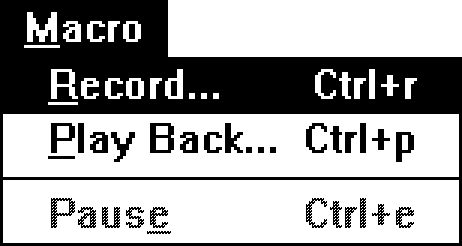

The Record command appears under the Macro menu.


          Figure 10-58.  Record Command

Use the Record command to start recording a macro with a user-specified
.REC file name.

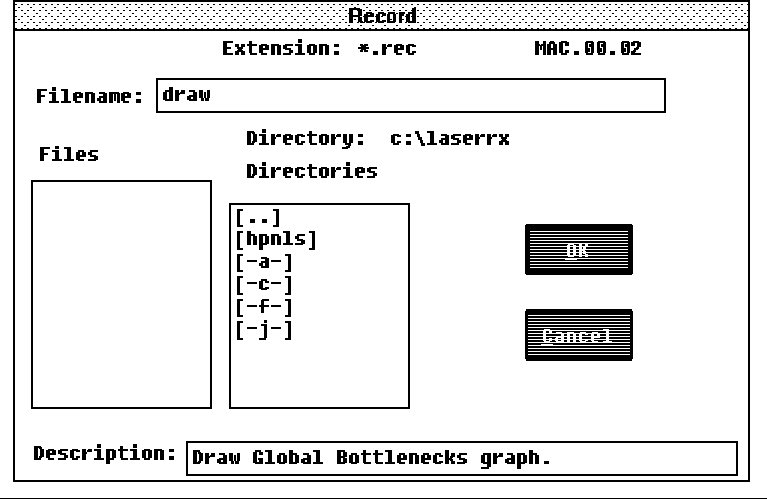

          Figure 10-59.  Record Dialog Box

Record dialog box options are described below:


NOTE  The HP LaserRX/MPE Macro command records HP LaserRX/MPE commands
      and functions; it does not record mouse movements.


   *   Filename.

       Use the Filename box to key in the name of a file that will be
       recorded.  Text can be scrolled in the Filename box.

       The .REC file extension is the convention established for HP
       LaserRX/MPE macro files.

   *   Files.

       The Files list box lists all files in the current directory with a
       .REC extension.  You can select a file from this list or use the
       Directories list box to look at .REC files in other directories.
       If you do select a previously recorded .REC file, the new macro
       that you record will overwrite it.

       When you click on a file from the Files list box, the name appears
       in the Filename box.

   *   Directories.

       The Directories box lists all MS-DOS discs and directories
       available to you.  The current directory is listed above the
       Directories list box.

       If you double-click on another disc or directory, the list of
       files in the Files list box displays the .REC files in the new
       disc or directory and the Directory line reflects the new current
       directory.

Related Topics

"Pause Command"

"Play Back Command"

"Stop Recording Command"

See Chapter 8 .
