HP LaserRX/MPE User's Manual: Analysis Software

Process Command

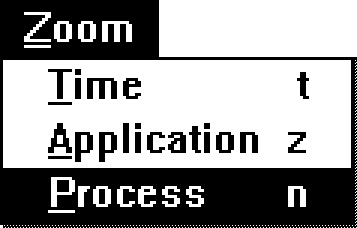

The Process command appears under the Zoom menu.


          Figure 10-55.  Process Command

The Process command switches the Process mode of the HP LaserRX/MPE
graphic zoom on or off.  Zoom-by-process is enabled when a check mark is
displayed in front of the Process command label.

When Zoom Process is enabled, you can zoom in on a specific period of
time on a graph by dragging the mouse pointer across a section of a
graph.  The section is highlighted, as shown below.

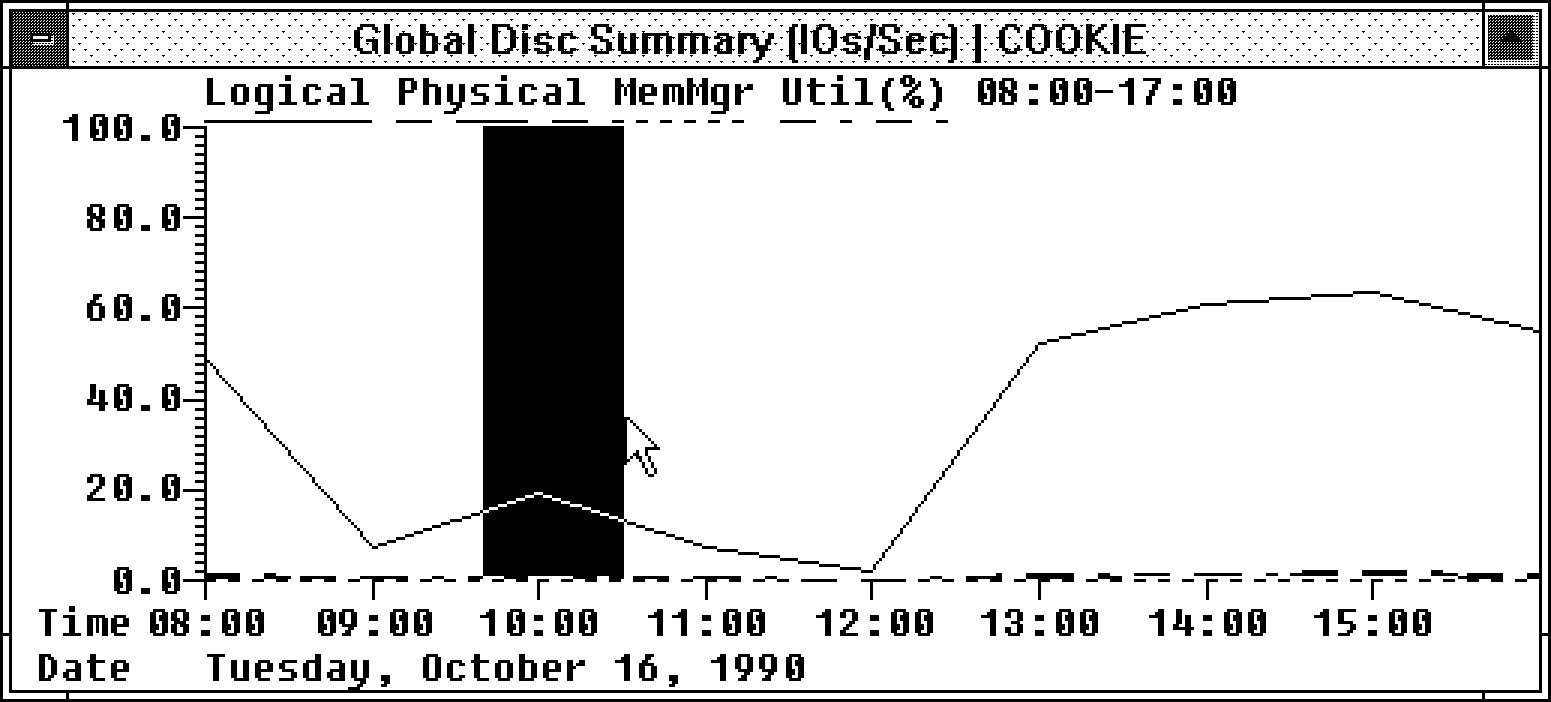

          Figure 10-56.  Process Zoom

When you release the left mouse button, HP LaserRX/MPE creates a new
window with a table showing process data.  HP LaserRX/MPE refers to this
window as a tabular window.

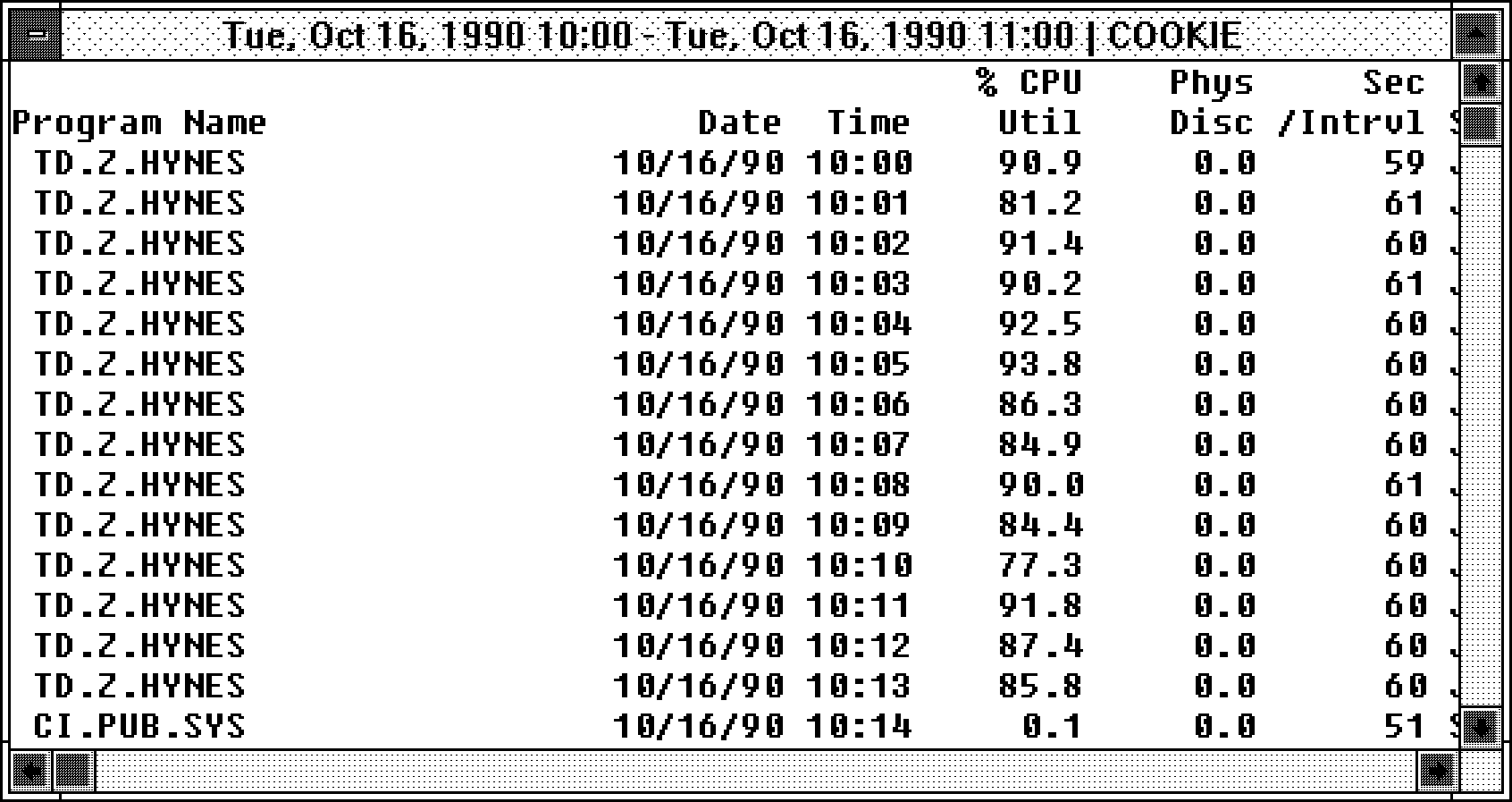

          Figure 10-57.  Tabular Window--Process Detail

Time, Application, and Process modes of zoom cannot be enabled at the
same time.  If you select one, the others are disabled.
