HP LaserRX/MPE User's Manual: Analysis Software

Play Back Command

The Play Back command appears under the Macro menu.

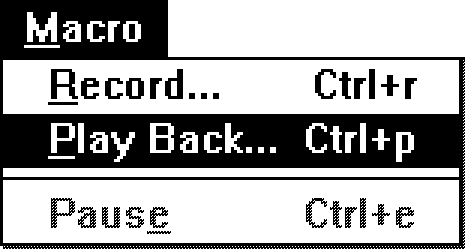

          Figure 10-49.  Play Back Command

Use the Playback command to play a pre-recorded macro.

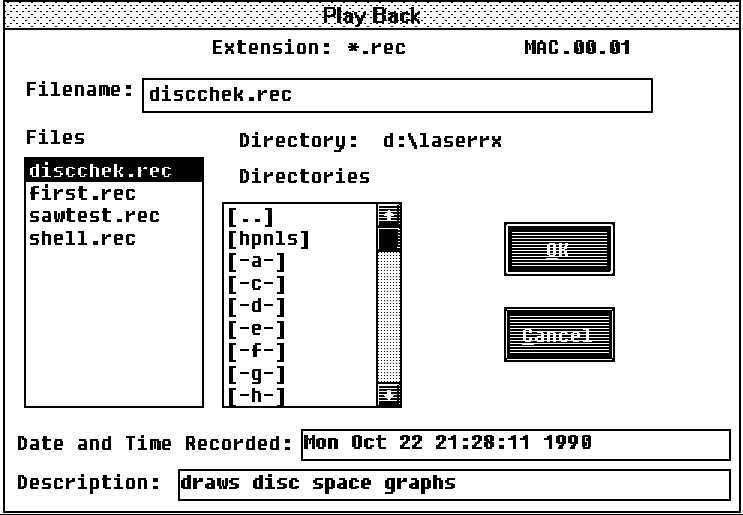

          Figure 10-50.  Play Back Dialog Box

Options on the Play Back dialog box include the following:

   *   Filename.

       Use the Filename box to key in the name of a macro file to play.
       Text can be scrolled in the Filename box.

       The .REC file extension is the convention established for HP
       LaserRX/MPE macro files.

   *   Files.

       The Files list box lists all files in the current directory with a
       .REC extension.  You can select a file from this list or use the
       Directories list box to look at .REC files in other directories.

       When you click on a file from the Files list box, the name appears
       in the Filename box and a description appears in the Description
       box (if a description was entered when the macro file was
       recorded).

   *   Directories.

       The Directories box lists all MS-DOS directories available to you.
       The current directory is listed above the Directories list box.

       If you double-click on another directory, the list of files in the
       Files list box displays the .REC files in the new directory and
       the Directory line reflects the new current directory.

   *   Date and Time Recorded.

       This box shows the date and time when the macro file listed in the
       Filename box was recorded.

   *   Description.

       This box shows the description (if any) entered for the macro file
       when it was recorded.

Related Topics

See Chapter 8 .

"Pause Command"

"Record Command"

"Stop Recording Command"
