Options Command

The Options command appears under the Configure menu.

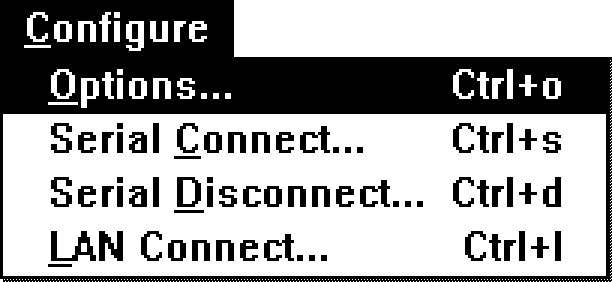

          Figure 10-46.  Options Command

This command sets HP LaserRX/MPE options for data communications,
graphics display, automatic file opens, and automatic connect and
disconnect.

When you select the Options command, the following Options dialog box
appears.

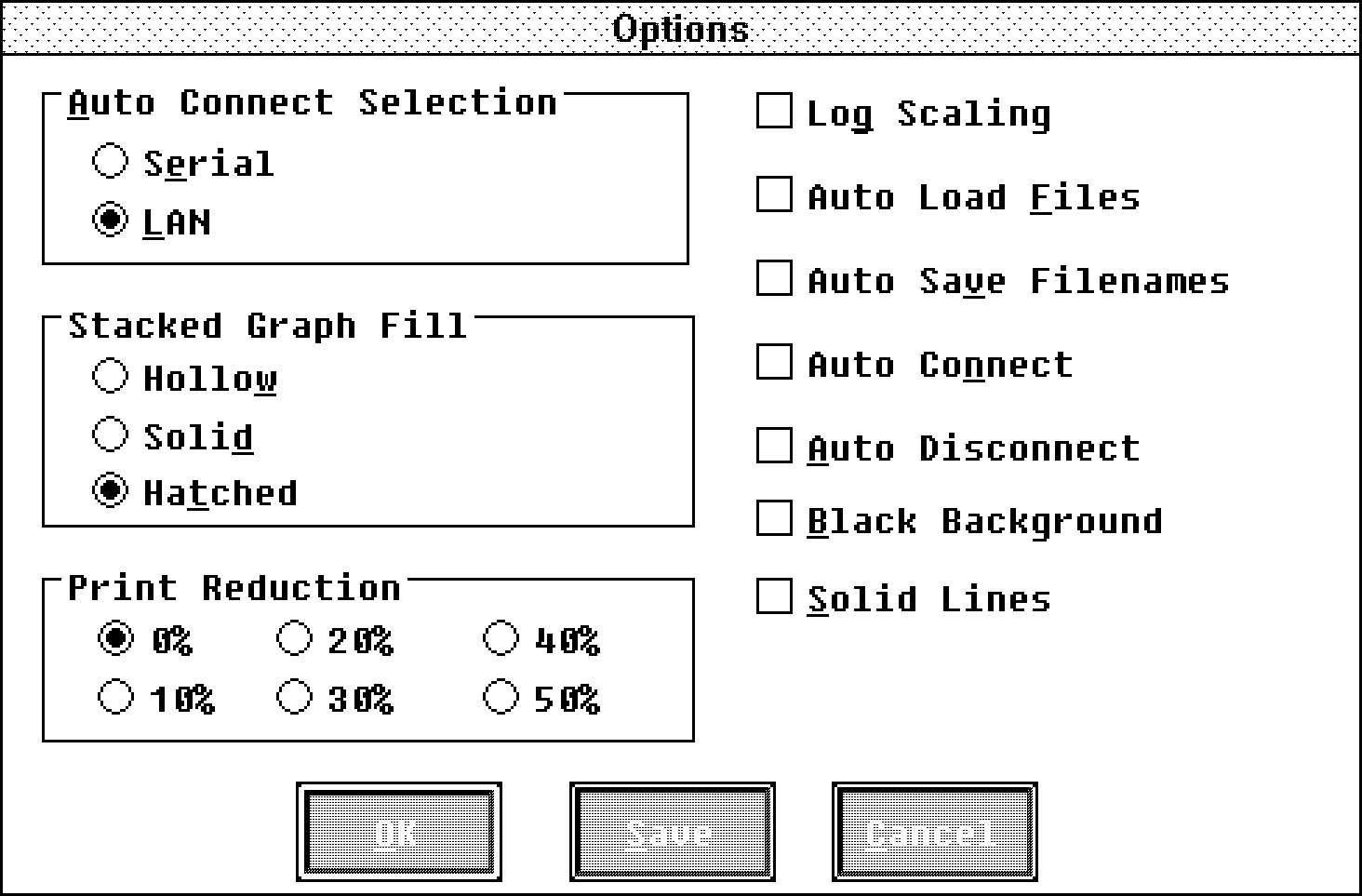

          Figure 10-47.  Options Dialog Box

   *   Auto Connect Selection.

       If Auto Connect is enabled, the Auto Connect Selection option will
       designate whether your connection to a single HP 3000 will be a
       serial connect or a LAN connect.  The defaults specified in the
       Configure Serial Connect and Configure LAN Connect dialog boxes
       will be used to make the connection.

   *   Stacked Graph Fill.

       The Stacked Graph Fill option determines the fill pattern for
       variables on a stacked graph.  Three fill choices exist:

          *   Hollow.

          *   Solid.

          *   Hatched.

       The Print Reduction option determines by what percentage windows
       selected through the Print command will be reduced on hard-copy
       output.

   *   Log Scaling.

       The Log Scaling option determines whether the vertical (Y-Axis)
       scaling is linear or logarithmic (log).

   *   Auto Load Files.

       The Auto Load Files option, when enabled, automatically opens the
       list of files that was created the last time HP LaserRX/MPE ended
       with Auto Save Filenames enabled.  Starting HP LaserRX/MPE
       initiates the automatic open.

   *   Auto Save Filenames.

       Auto Save Filenames, when enabled, saves the names of HP
       LaserRX/MPE logfiles that are open when you exit the program.

       The list is used to open logfiles the next time you start HP
       LaserRX/MPE if the Auto Load Files option (above) is enabled.

   *   Auto Connect.

       Auto Connect, when enabled, automatically connects you to a single
       HP 3000 when you start HP LaserRX/MPE by initiating either the
       serial (Configure Serial Connect) or LAN (Configure LAN Connect)
       configuration.  Which connection is made is determined by what
       selection is made--Serial or LAN--in the Auto Connect Selection
       option.

   *   Auto Disconnect.

       Auto Disconnect, when enabled, automatically disconnects you from
       an HP 3000 to which you have a serial connection.

   *   Black Background.

       Black Background, when enabled, changes the background on window
       displays to black.

   *   Solid Lines.

       Solid Lines, when enabled, changes the data lines on graphs from
       broken to solid lines.
