HP LaserRX/MPE User's Manual: Analysis Software

Logfile Info Option

The Logfile Info button appears on the Open Remote and Open Local dialog
boxes.

Click on the Logfile Info button to find out more about a logfile
highlighted in the Files box.

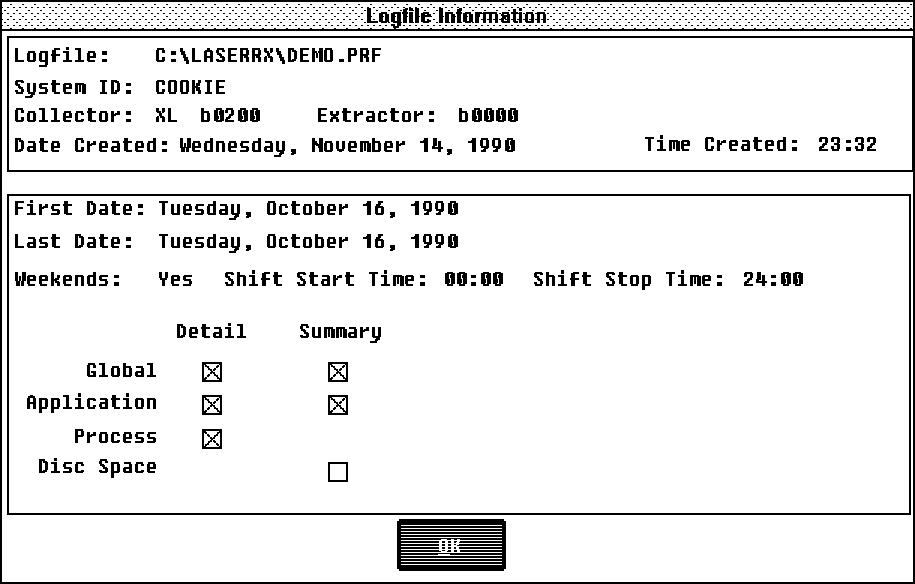

          Figure 10-41.  Logfile Info Dialog Box

The Logfile Info box contains the following information:

   *   Logfile.

       This is the name of the logfile as it appears in the Files list
       box.

   *   System ID.

       This is the name of the system on which the logfile data was
       collected.

   *   Collector.

       This indicates whether data was collected by SCOPE (VE system) or
       SCOPEXL (XL system).  It also tells you the version number of the
       collector.

   *   Extractor.

       For an extracted logfile, this indicates the version number of the
       EXTRACT program used to extract the logfile.  It is blank for a
       raw logfile.

   *   Date Created.

       This is the date when the logfile was first created (collection
       started).

   *   Time Created.

       This is the time when the logfile was first created (collection
       started).

   *   First Date.

       This is the first date in the logfile.

   *   Last Date.

       This is the last date in the logfile.

   *   Weekends.

       If Yes is indicated, then weekend data is included.

   *   Shift Start Time.

       This is the starting time of the shift.

   *   Shift Stop Time.

       This is the stopping time of the shift.

   *   Data Types.

       If the check box is checked then that type of data exists in the
       logfile.

After viewing the logfile information, click  OK to return to the Open
Remote or Open Local dialog boxes.

Related Topics

"Open Local Command"

"Open Remote Command"
