Draw Graphs Command Use the Draw Graphs command to display graphs of global, disc space, and application performance measurements. The Draw menu title serves as the Draw Graphs command.
NOTE There is no need to drag the mouse to open the Draw Graphs menu unless you also have HP RXForecast on your PC. HP RXForecast adds items to your HP LaserRX/MPE Draw menu.

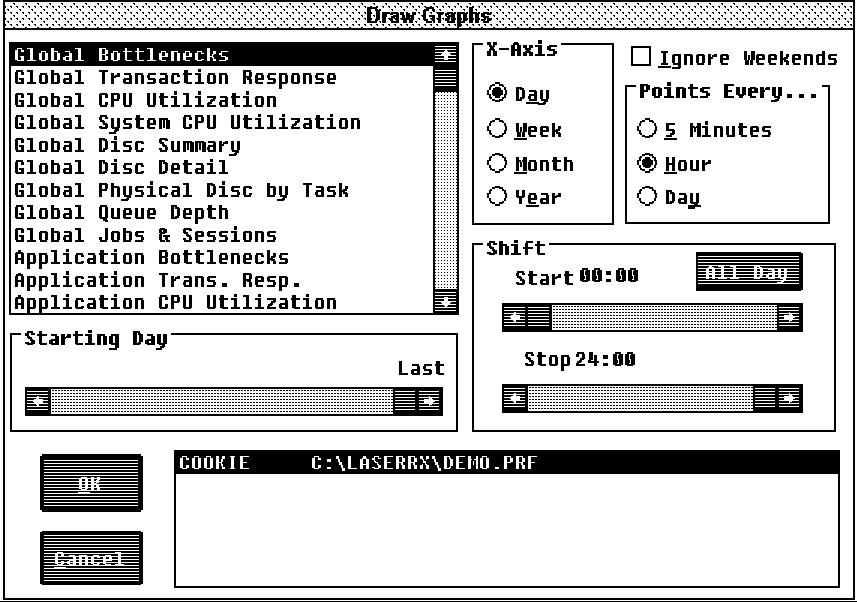

Figure 10-27. Draw Graphs Dialog Box The following options appear on the Draw dialog box: * Available Graphs list box. You can choose among nine global, four disc space, and six application graphs--assuming the highlighted logfile contains global, disc space, and application data. * X-Axis. * Ignore Weekends. * Points Every. The Points Every default is Hour. Change Points Every to Day to include disc space graphs in the Available Graphs list box (assuming the highlighted logfile contains disc space data). * Starting Day. * Shift. * Available Logfiles. For more detail, see the individual entries for each option in this chapter.
NOTE There is a delay in the display process while HP LaserRX/MPE prepares selected data for display. During this delay, you can use ESC to stop data preparation and display what is prepared so far.
Defaults Table 10-1 lists the default options for the Draw Graphs command. When you modify options, they become the default for the next time you use the Draw Graphs command.
NOTE Options changed while recording a macro become defaults.
Table 10-1. Draw Graphs Command Defaults --------------------------------------------------------------------------------------------- | | | | Option | Default | | | | --------------------------------------------------------------------------------------------- | | | | Available Graphs | Global Bottlenecks | | | | - - | | | | | Application Bottlenecks for logfiles | | | containing only application data or | | | application data and disc space data. | | | | - - | | | | | Disc Space for logfiles containing only | | | disc space data. | | | | --------------------------------------------------------------------------------------------- | | | | X-Axis | Day | | | | --------------------------------------------------------------------------------------------- | | | | Ignore Weekends | Not enabled (weekends will display) | | | | --------------------------------------------------------------------------------------------- | | | | Points Every | Hour | | | | --------------------------------------------------------------------------------------------- | | | | Starting Day | Last (last complete period will display) | | | | --------------------------------------------------------------------------------------------- | | | | Shift | Times specified when extracted (for | | | extracted logfiles) | | | | - - | | | | 0:00 to 24:00 (for raw logfiles) | | | | | --------------------------------------------------------------------------------------------- | | | | Available Logfiles | Last logfile opened | | | | --------------------------------------------------------------------------------------------- The default settings for Y-Axis scaling and stacked graph fill are determined by the Options command under the Configure menu. Related Topics "Available Graphs Option" "Available Logfiles Option" "Ignore Weekends Option" "Points Every Option" "Shift Option" "Starting Day Option" "X-Axis Option"
