HP LaserRX/MPE User's Manual: Analysis Software

Disconnect LAN Command

The Disconnect LAN command is found under the File menu.

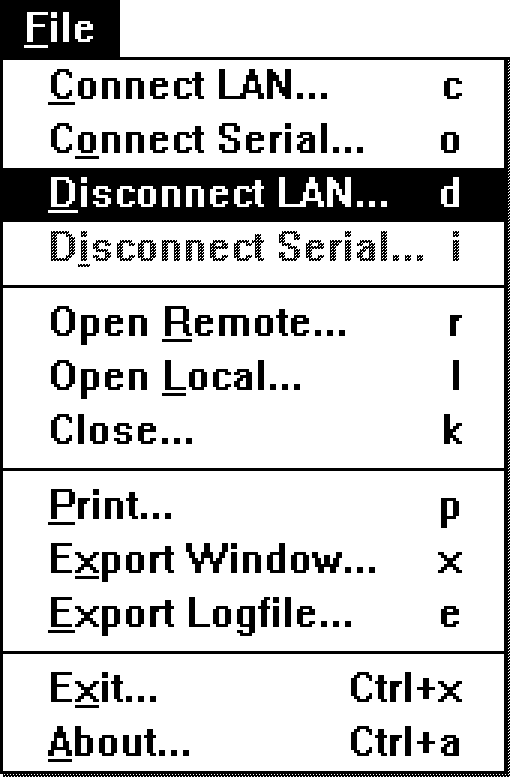

          Figure 10-23.  Disconnect LAN Command

The Disconnect LAN command ends the LAN link between HP LaserRX/MPE and
an HP 3000 containing the logfiles you were accessing.  In the process of
terminating this link, HP LaserRX/MPE logs off of the HP 3000.

The command is dimmed if you are not connected to an HP 3000 (you cannot
disconnect if you are not connected).

When you select the File Disconnect LAN command, you get the Disconnect
LAN dialog box.

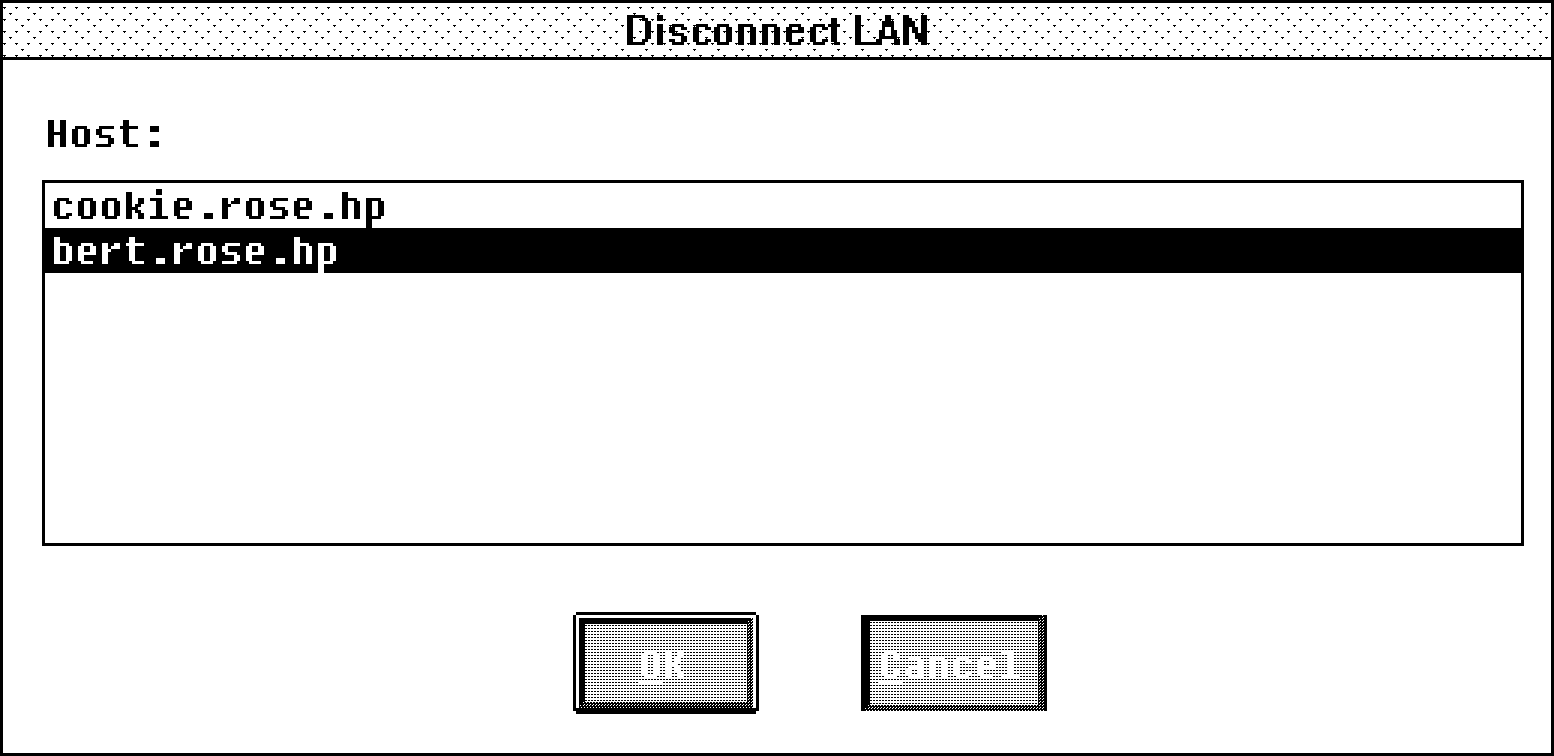

          Figure 10-24.  Disconnect LAN Dialog Box

Highlight any or all connections and click  OK to disconnect.

Related Topics

See Chapter 4 .

"Auto Connect Selection Option"

"Connect LAN Command"
