HP LaserRX/MPE User's Manual: Analysis Software

Using the Draw Graphs Command

The Draw Graphs command appears under the Draw menu.  Use this command to
display graphs of global, disc space, and application data.

   *   Global graphs reflect the activity for all processes on the
       system.  One to nine Global graphs can be selected.

   *   Disc space graphs reflect disc space usage.  Data is collected
       once a day.  One to four Disc Space graphs can be selected.

   *   Application graphs reflect the activity for user-defined groups of
       processes on the system.  Each group is assigned an application
       name.  One to six Application graphs can be selected.

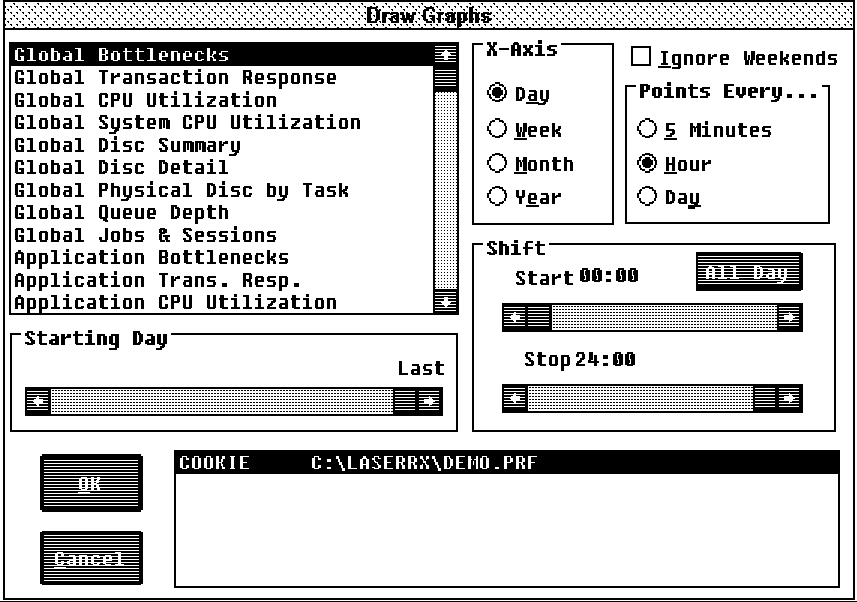

          Figure 6-1.  Draw Graphs Dialog Box

The Draw Graphs dialog box is key in making display choices in HP
LaserRX/MPE. Changes made to any options are reflected the next time the
Draw Graphs command is used.

   *   You use the Available Graphs list box to choose the type of data
       to display:  global, disc space, and application.

   *   You use the Starting Day, X-Axis, Ignore Weekends, and Shift
       options to focus on the data that is relevant to your analysis.

   *   You use the Points Every option to choose the collection interval
       that is represented by one data point on a graph.
