HP LaserRX/MPE User's Manual: Analysis Software

Accessing Performance Data

Through a file-serving facility, HP LaserRX/MPE supports transparent
access to host logfiles.  Reporting, analysis, and manipulation of
performance data occur on the PC, which uses a Microsoft Windows
interface to provide graphic and tabular data displays.


          Figure 2-3.

Your PC can be connected to an HP 3000 using two remote file access
modes:  serial and LAN. From within HP LaserRX/MPE software on the PC,
you can be connected to up to five HP 3000s at a time--five LAN
connections or one serial connection and four LAN connections.

Using commands in HP LaserRX/MPE's File menu, you can connect to HP 3000s
and open both remote and local HP LaserRX/MPE logfiles.

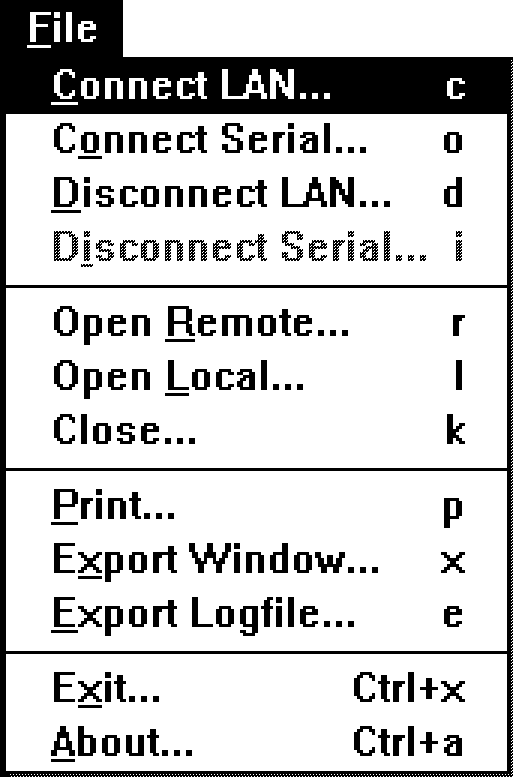

          Figure 2-4.

For information on connecting to an HP 3000 and opening logfiles, see
Chapter 4  and Chapter 5 .
