NS3000/iX Error Messages Reference Manual

Using Log Files

The key information in each log message is the log class and the location
code number, which uniquely identify the logging message for that entity,
and the Parm.  You use these numbers to find the explanation and action
in the tables in this section and other sections of this manual.  The
actions given should be performed.  Only if there is no clear error
reported or the recommended action fails should system level
troubleshooting be performed.  When the system level tests are done, it
is advisable to use the configuration files that have most of the logging
classes configured for the console.  This saves having to format the log
files for the log messages received during the test.<$ILogging;Using Log
Files> <$IUsing Log Files>

Internal Errors

Each subsystem has a log class defined for internal errors, as listed in
Table 18-1.  If an internal error ever occurs, a log message is sent to
the console.  Record the log message exactly and consult this manual for
the recommended action, which in most cases is to contact HP; refer to
"Submitting an SR" in appendix A of this manual.

Some error messages have an extra parameter whose explanation reads "Parm
= BFM result code." The error codes that are produced by the buffer
manager are listed in Tables C-1 and C-2.  Those tables contain all of
the error codes returned by the NS3000/iX native mode and compatibility
mode buffer manager interfaces.

Informative and Non-Critical Errors

The Network Transport logs all normal or informative events to CLAS0005.
Because of the high number generated, messages for this class are not
normally recorded, even to the disk log file.  However, if any of the
normal events encounters an error condition, an additional log message is
generated that is recorded with the log file.  This is CLAS0003,
non-critical error.

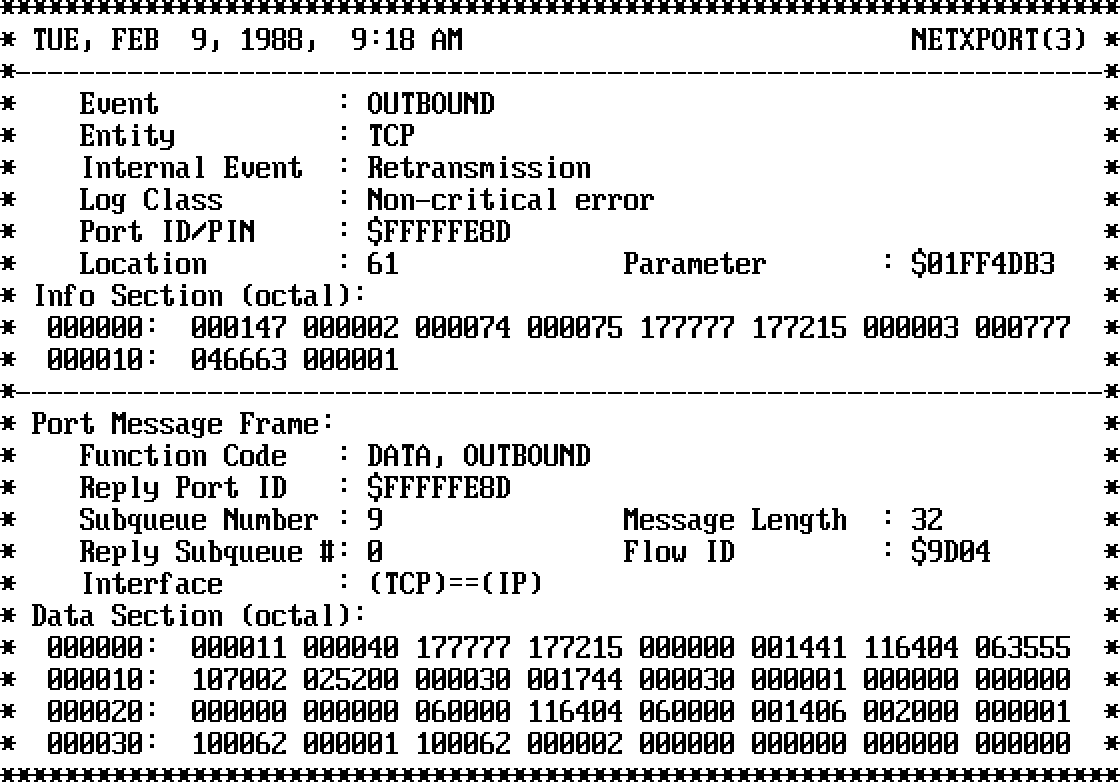

An example of log class 3, non-critical error, is shown in Figure 18-2.
This example shows a non-critical, or Class 3, log message for TCP. The
first part describes the log message, including the event, the entity,
the internal event and the log class.  In Figure 18-2, the internal event
is Retransmission which indicates that there was an attempt to retransmit
a TCP packet.  The Parameter number indicates the sequence number of the
packet that was retransmitted.  Also check the explanation and action
listed under the Location Code number which is 61 in the example.  The
TCP PM section describes the protocol module Location Code.


          Figure 18-2.  Class 3, A Non-Critical Transport Error

Statistics Logging Example

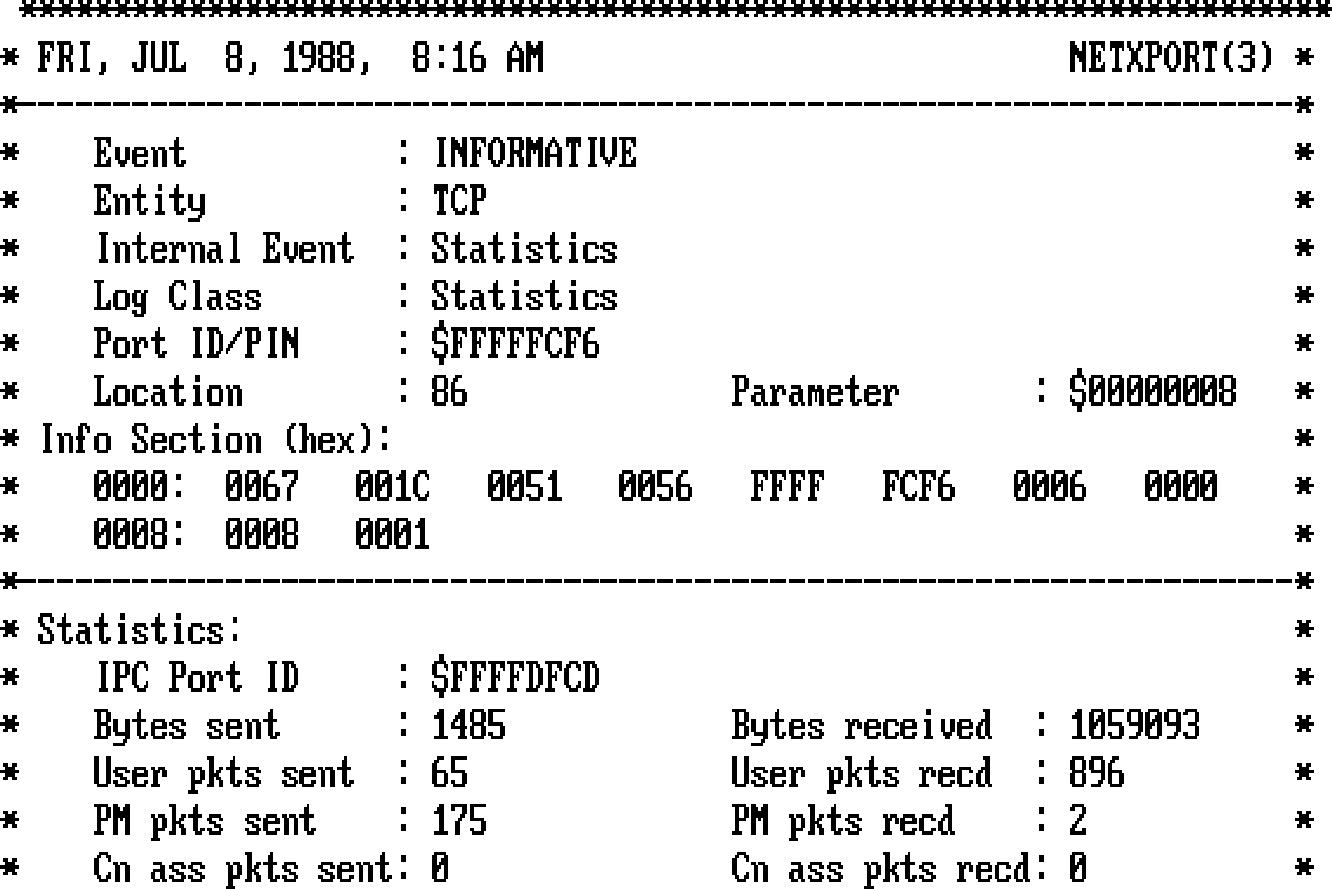

An example of log class 6, statistics, is shown in Figure 18-3.  Figure
18-3 shows a statistics log message for TCP. This example shows an
informative, or Class 3, log message for TCP. The first part describes
the log message, including the event, the entity, the internal event and
the log class.  The internal event is Statistics, which indicates that
the logging message contains statistical information.  The Parameter
number indicates the shutdown reason.  If it is 0, as in the example, the
user closed the connection normally.  A value of 10 (octal) would mean
that the remote aborted the connection.  This may be a normal shutdown.
For more information on the specific reason for the remote abort you need
to check the log file of the remote node.

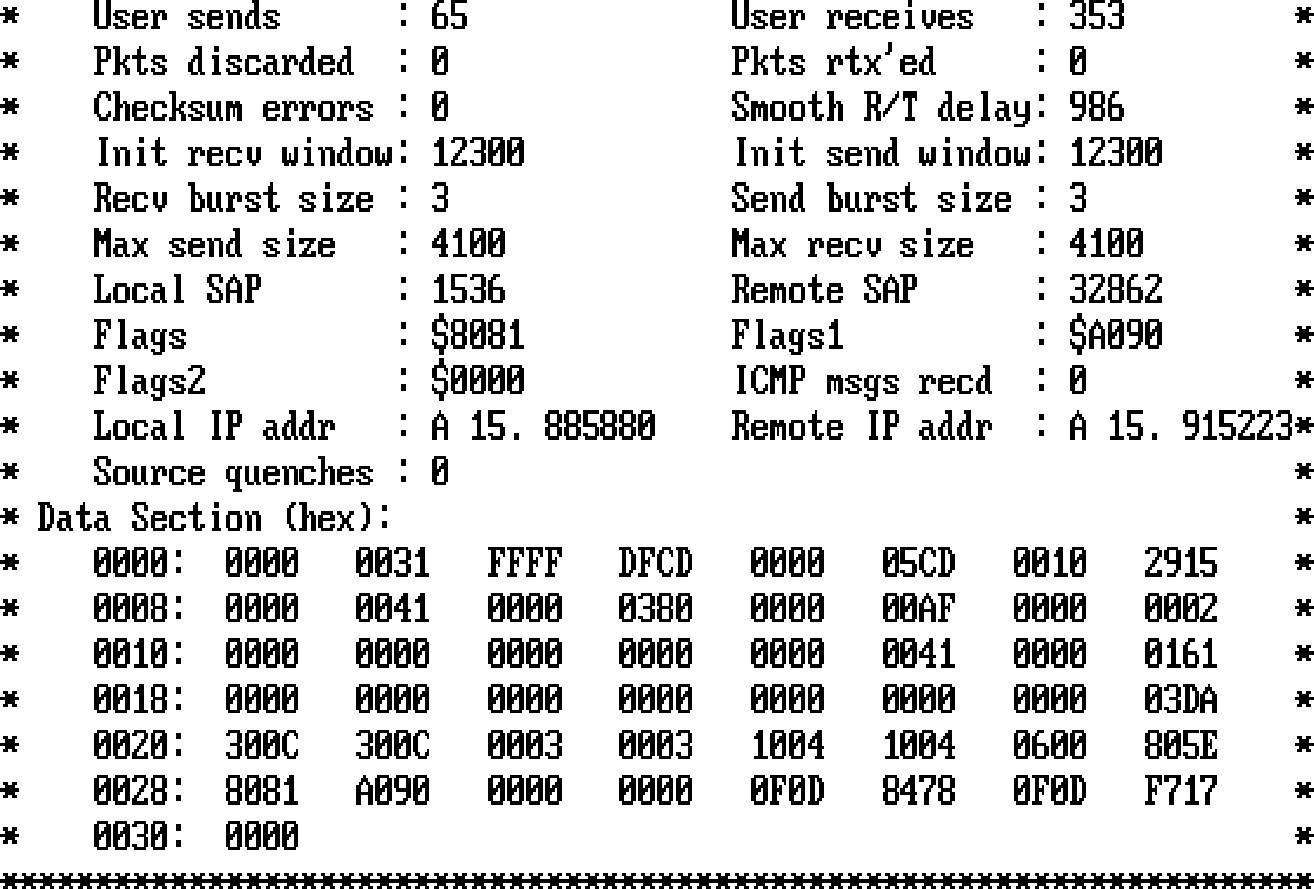

          Figure 18-3.  Logging Statistics Example

The key information in each log message is the log class and the location
code number, which uniquely identify the logging message for that entity,
and the parameter.  You use these numbers to find the explanation and
action in this section and other sections of this manual.  The
"Statistics:" section displays the following fields:

   *   IPC Port ID. Gives the address of the NetIPC port associated with
       the TCP (or PXP) protocol module for this connection.  This is the
       number to use in matching a TCP/PXP Statistic log message to a
       NetIPC log message.  Look for the identical number called the
       Socket Port ID in the NetIPC log message.

   *   Bytes sent/received.  Shows the total number of bytes transmitted
       or received by the PM.

   *   User pkts sent/recd.  Shows the number of packets sent or
       received.  May be more than the number of User Sends/Receives
       because TCP may need to fragment the message into link-size
       packets.

   *   PM pkts sent/recd.  Shows the number of non-data carrying packets
       sent or received, such as window updates and acknowledgements.

   *   Cn ass pkts sent/recd.  Shows the number of connection assurance
       packets sent or received.  A large number of these indicate that
       the connection is idle for long periods of time.

   *   User sends/receives.  Shows the number of messages sent or
       received.

   *   Pkts discarded/rtx'ed.  The number of packets discarded or
       retransmitted.  If there is a problem with the connection, it may
       be reflected here by an extremely high number for one of these
       fields.  Check for Class 3 logging messages; refer to the specific
       location code for more information.

   *   Checksum errors.  Shows the number of checksum errors for this
       connection.  Check for Class 3 logging messages; refer to the
       specific location code for more information.

   *   Smooth R/T delay.  Shows the observed delay (in milliseconds)
       required to receive acknowledgements from the remote node.  This
       number is used by TCP to dynamically calculate the retransmission
       timer.

   *   Init recv/send window.  Shows the size of the window used for flow
       control.  The size varies for each service.

   *   Recv/Send burst size.  Shows the burst size for the receiver and
       the sender.  This value is specified with the IPCCONNECT used to
       initiate the connection.

   *   Max send/recv size.  Shows the maximum message size for the
       receiver and the sender.  This value is specified with the
       IPCCONNECT used to initiate the connection.

   *   Local/Remote SAP. Shows the TCP Service Access Point address for
       the local and the remote node.  If you do not know which
       application to check on the remote node, use these numbers
       (reversed) to find the matching PM in the log file for the remote
       node.  Specify a time range when formatting the remote node log
       file to narrow the search.

   *   Flags/Flags1/Flags2.  Internal state flags.

   *   ICMP msgs recd.  Total number of ICMP messages that this
       connection has received from the IP module.

   *   Local/Remote IP addr.  Shows the IP address for the local and
       remote node.

   *   Source quenches.  Shows the number of times this connection has
       been quenched.  A connection is quenched when it receives a source
       quench ICMP message from IP.
