HP3000/iX Network Planning and Configuration Guide

To Modify the Logging Configuration

The Netxport Log Configuration (1) screen (#61) in figure 13-2 is
displayed when you press the [Modify Logging] function key at the Network
Transport Configuration screen.

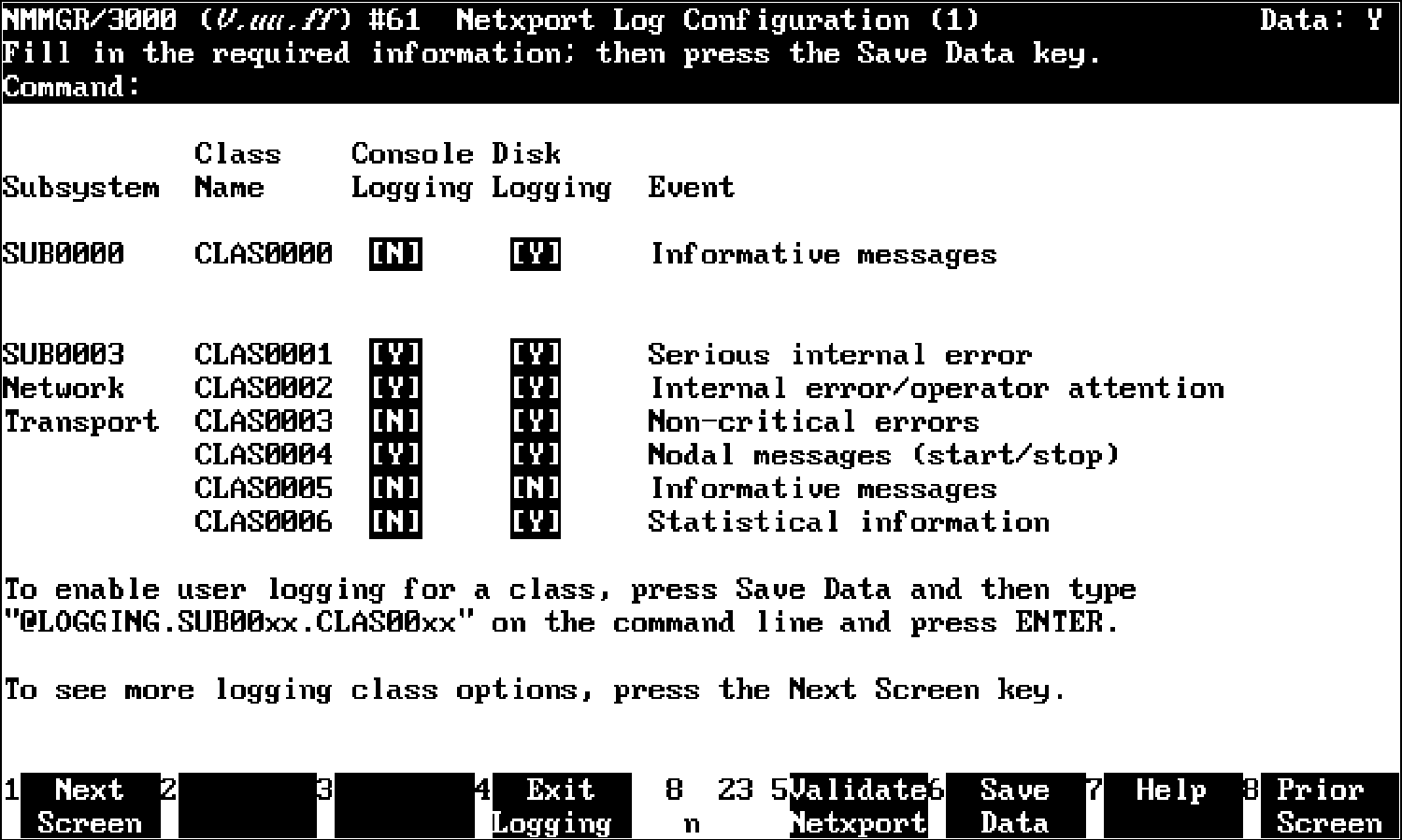

          Figure 13-2.  Netxport Log Configuration (1)

Use the fields and the function keys of the screen to configure logging
for the subsystems represented on the screen.  If the subsystem for which
you want to enable logging does not appear on the first screen, press the
[Next Screen] function key to go to the next Netxport Log Configuration
screen.  There are a total of five logging configuration screens.

Enable or disable logging classes (or accept HP-recommended defaults).
Press the [Save Data] key on each screen to create or modify the data
record.  Verify that the data record has been created by checking that
the Data flag is Y.

Fields

Console logging     The value entered in this field specifies whether or
                    not logging events for the subsystem and class listed
                    beside the field will be logged to the system
                    console.  A value must be entered for each subsystem
                    and class listed.  A Y (yes) enables logging to the
                    console, N (no) disables logging to the console.

Disk logging        The value entered in this field specifies whether or
                    not logging events for the subsystem and class listed
                    beside the field will be logged to a disk file.  A
                    value must be entered for each subsystem and class
                    listed.  A Y (yes) enables logging to a file, N (no)
                    disables logging to a file.  The file name for the
                    log file is NMLGnnnn.PUB.SYS, where nnnn is a number
                    from 0000 to 9999.  All logging classes in all
                    subsystems are logged to this file.  At each system
                    startup, or when a file is full, the node
                    management services subsystem (NMS) creates a new
                    NMLGnnnn.PUB.SYS file, naming each successive logging
                    file by incrementing nnnn.  When NMLG9999.PUB.SYS
                    is full, NMS names the next logging file
                    NMLG0000.PUB.SYS.

The Netxport Log Configuration (2) screen (#60) in figure 13-3 is
displayed when you press the [Next Screen] function key from the Netxport
Log Configuration (1) screen (#61) in figure 3-2.

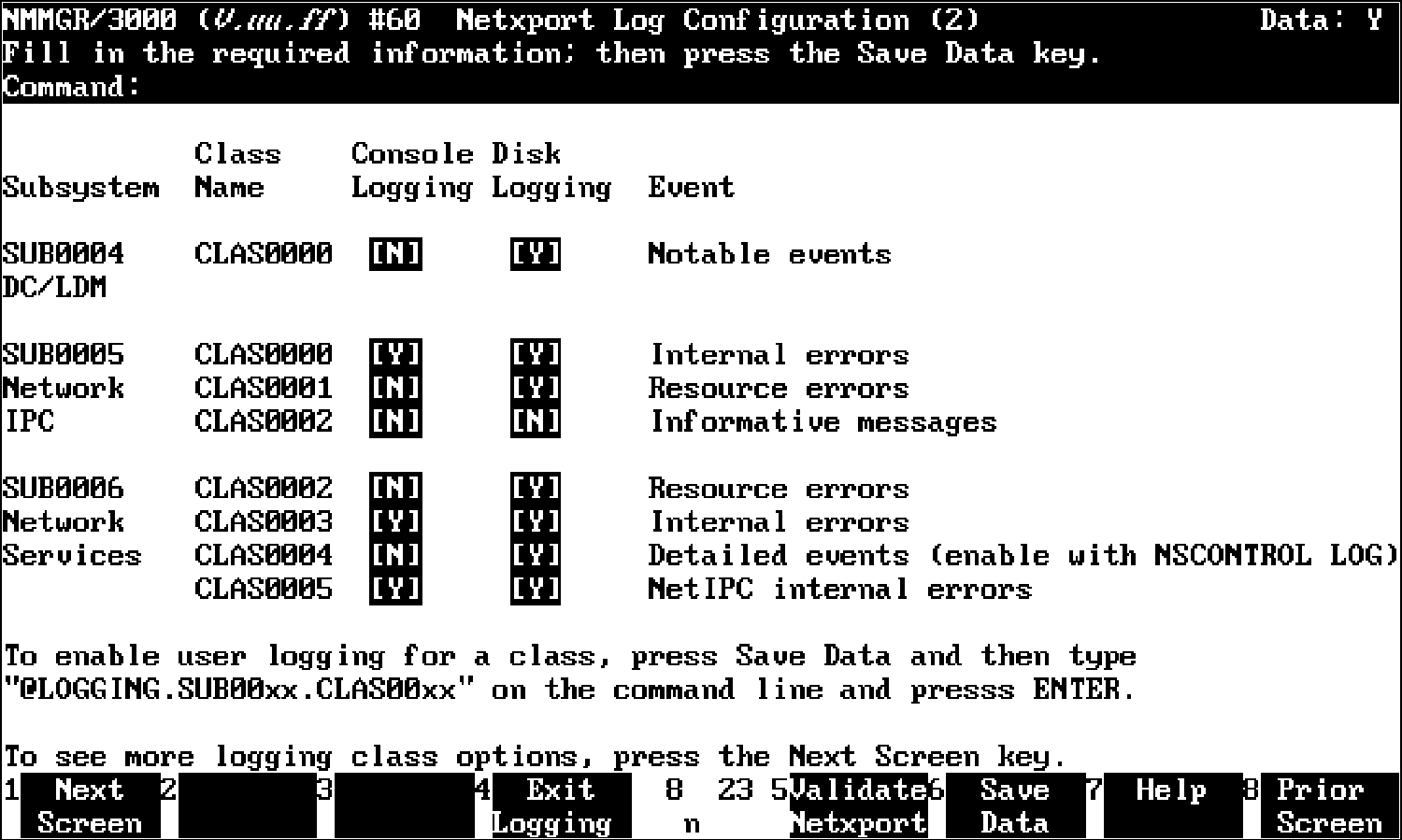

          Figure 13-3.  Netxport Log Configuration (2)

Use the fields and the function keys of the screen to configure logging
for the subsystems represented on the screen.  If the subsystem for which
you want to enable logging does not appear on this screen, press the
[Next Screen] function key to go to the next Netxport Log Configuration
screen.  There are a total of five logging configuration screens.

Enable or disable logging classes (or accept HP-recommended defaults).
Press the [Save Data] key on each screen to create or modify the data
record.  Verify that the data record has been created by checking that
the Data flag is Y.

Fields

Console logging     The value entered in this field specifies whether or
                    not logging events for the subsystem and class listed
                    beside the field will be logged to the system
                    console.  A value must be entered for each subsystem
                    and class listed.  A Y (yes) enables logging to the
                    console, N (no) disables logging to the console.

Disk logging        The value entered in this field specifies whether or
                    not logging events for the subsystem and class listed
                    beside the field will be logged to a disk file.  A
                    value must be entered for each subsystem and class
                    listed.  A Y (yes) enables logging to a file, N (no)
                    disables logging to a file.  The file name that NMS
                    uses is NMLGnnnn.PUB.SYS, where nnnn is a number from
                    0000 to 9999.  All logging classes in all subsystems
                    are logged to this file.  At each system startup,
                    or when a file is full, NMS creates a new
                    NMLGnnnn.PUB.SYS file, naming each successive logging
                    file by incrementing nnnn.  When NMLG9999.PUB.SYS
                    is full, NMS names the next logging file
                    NMLG0000.PUB.SYS.

The Netxport Log Configuration (3) screen (#70) in figure 13-4 is
displayed when you press the [Next Screen] function key from the Netxport
Log Configuration (2) screen (#60) in figure 13-3.

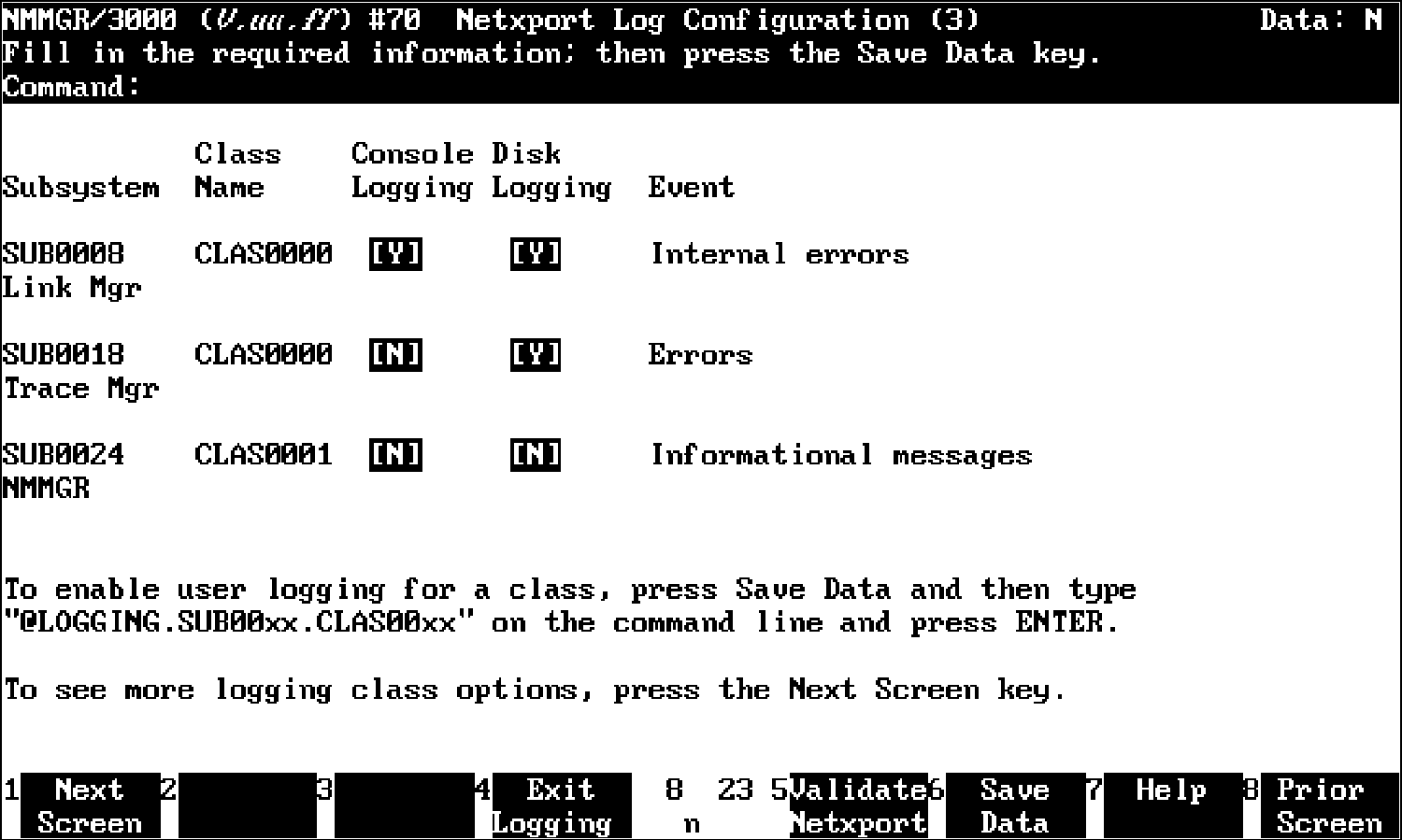

          Figure 13-4.  Netxport Log Configuration (3)

Use the fields and the function keys of the screen to configure logging
for the subsystems represented on the screen.  If the subsystem for which
you want to enable logging does not appear on this screen, press the
[Next Screen] function key to go to the next Netxport Log Configuration
screen.  There are a total of five logging configuration screens.

Enable or disable logging classes (or accept HP-recommended defaults).
Press the [Save Data] key on each screen to create or modify the data
record.  Verify that the data record has been created by checking that
the Data flag is Y.

Fields

Console logging     The value entered in this field specifies whether or
                    not logging events for the subsystem and class listed
                    beside the field will be logged to the system
                    console.  A value must be entered for each subsystem
                    and class listed.  A Y (yes) enables logging to the
                    console, N (no) disables logging to the console.

Disk logging        The value entered in this field specifies whether or
                    not logging events for the subsystem and class listed
                    beside the field will be logged to a disk file.  A
                    value must be entered for each subsystem and class
                    listed.  A Y (yes) enables logging to a file, N (no)
                    disables logging to a file.  The file name that NMS
                    uses is NMLGnnnn.PUB.SYS, where nnnn is a number from
                    0000 to 9999.  All logging classes in all subsystems
                    are logged to this file.  At each system startup,
                    or when a file is full, NMS creates a new
                    NMLGnnnn.PUB.SYS file, naming each successive logging
                    file by incrementing nnnn.  When NMLG9999.PUB.SYS
                    is full, NMS names the next logging file
                    NMLG0000.PUB.SYS.

The Netxport Log Configuration (4) screen (#68) in figure 13-5 is
displayed when you press the [Next Screen] function key from the Netxport
Log Configuration (3) screen (#70) in figure 13-4.

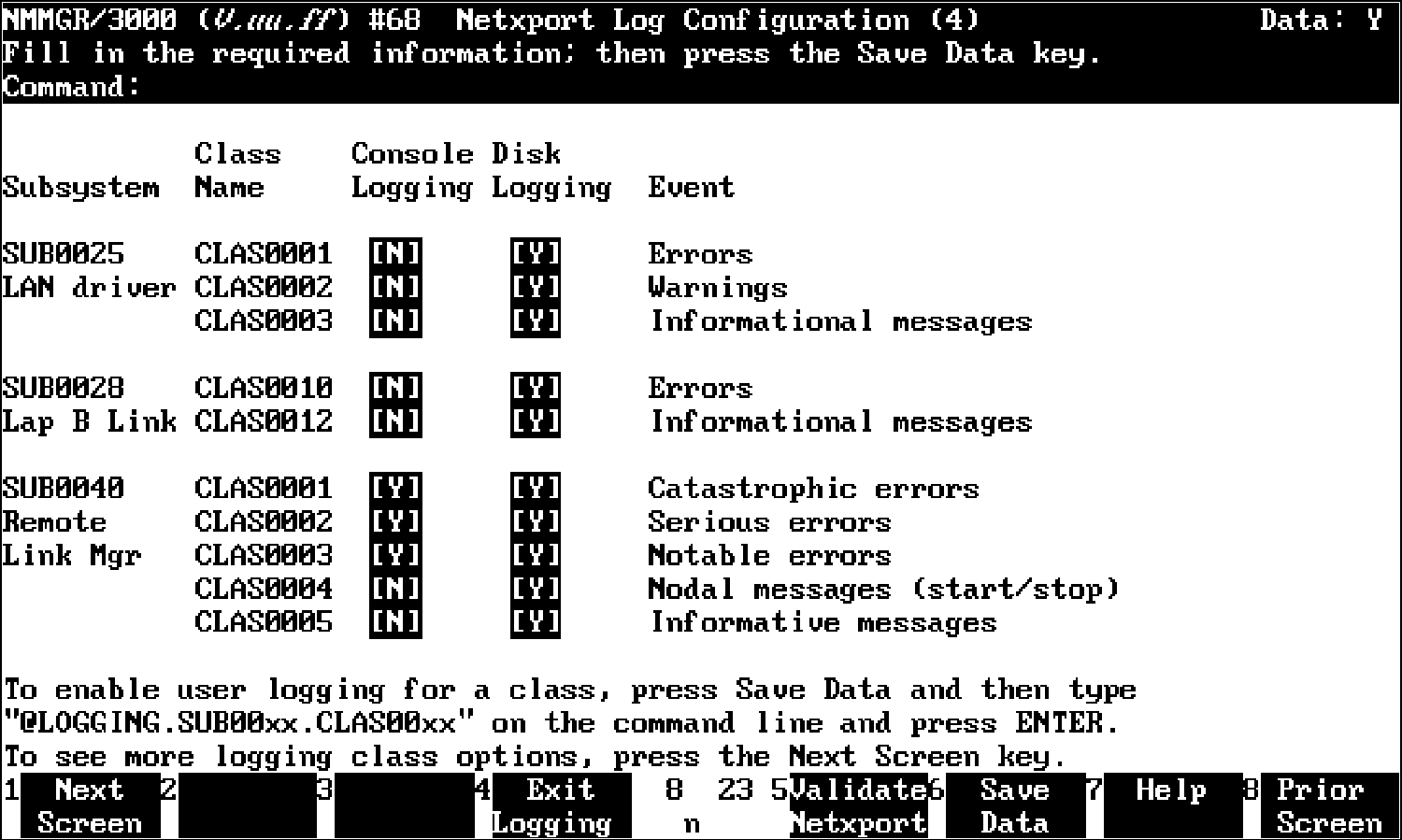

          Figure 13-5.  Netxport Log Configuration (4)

Use the fields and the function keys of the screen to configure logging
for the subsystems represented on the screen.  If the subsystem for which
you want to enable logging does not appear on this screen, press the
[Next Screen] function key to go to the next Netxport Log Configuration
screen.  There are a total of five logging configuration screens.

Enable or disable logging classes (or accept HP-recommended defaults).
Press the [Save Data] key on each screen to create or modify the data
record.  Verify that the data record has been created by checking that
the Data flag is Y.

Press the [Exit Logging] function key when you have finished modifying
the logging configuration.

Fields

Console logging     The value entered in this field specifies whether or
                    not logging events for the subsystem and class listed
                    beside the field will be logged to the system
                    console.  A value must be entered for each subsystem
                    and class listed.  A Y (yes) enables logging to the
                    console, N (no) disables logging to the console.

Disk logging        The value entered in this field specifies whether or
                    not logging events for the subsystem and class listed
                    beside the field will be logged to a disk file.  A
                    value must be entered for each subsystem and class
                    listed.  A Y (yes) enables logging to a file, N (no)
                    disables logging to a file.  The file name that NMS
                    uses is NMLGnnnn.PUB.SYS, where nnnn is a number from
                    0000 to 9999.  All logging classes in all subsystems
                    are logged to this file.  At each system startup,
                    or when a file is full, NMS creates a new
                    NMLGnnnn.PUB.SYS file, naming each successive logging
                    file by incrementing nnnn.  When NMLG9999.PUB.SYS
                    is full, NMS names the next logging file
                    NMLG0000.PUB.SYS.

The Netxport Log Configuration (5) screen (#69) in figure 13-6 is
displayed when you press the [Next Screen] function key from the Netxport
Log Configuration (4) screen (#68) in figure 13-5.

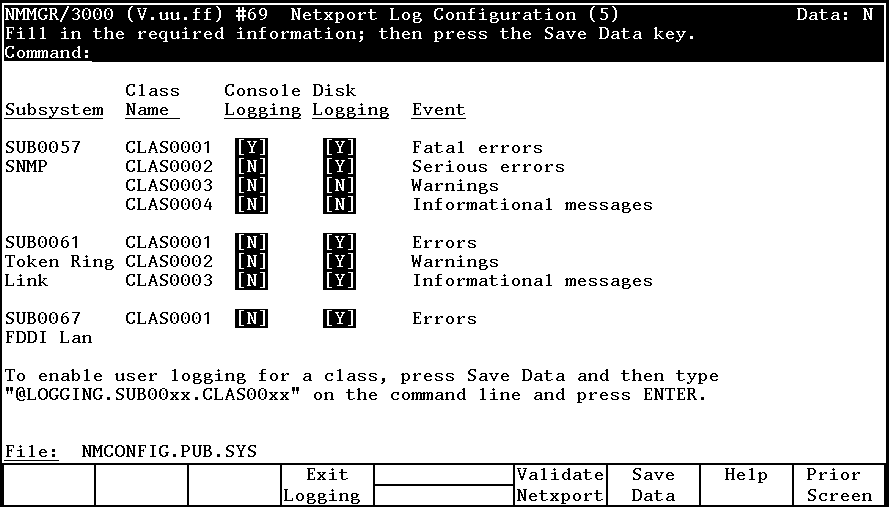

          Figure 13-6.  Netxport Log Configuration (5)

Use the fields and the function keys of the screen to configure logging
for the subsystems represented on the screen.  If the subsystem for which
you want to enable logging does not appear on this screen, press the
[Next Screen] function key to go to the next Netxport Log Configuration
screen.  There are a total of five logging configuration screens.

Enable or disable logging classes (or accept HP-recommended defaults).
Press the [Save Data] key on each screen to create or modify the data
record.  Verify that the data record has been created by checking that
the Data flag is Y.

Press the [Exit Logging] function key when you have finished modifying
the logging configuration.

Fields

Console logging       The value entered in this field specifies whether
                      or not logging events for the subsystem and class
                      listed beside the field will be logged to the
                      system console.  A value must be entered for each
                      subsystem and class listed.  A Y (yes) enables
                      logging to the console, N (no) disables logging to
                      the console.

Disk logging          The value entered in this field specifies whether
                      or not logging events for the subsystem and class
                      listed beside the field will be logged to a disk
                      file.  A value must be entered for each subsystem
                      and class listed.  A Y (yes) enables logging to a
                      file, N (no) disables logging to a file.  The file
                      name that NMS uses is NMLGnnnn.PUB.SYS, where nnnn
                      is a number from 0000 to 9999.  All logging classes
                      in all subsystems are logged to this file.  At each
                      system startup, or when a file is full, NMS creates
                      a new NMLGnnnn.PUB.SYS file, naming each successive
                      logging file by incrementing nnnn.  When
                      NMLG9999.PUB.SYS is full, NMS names the next
                      logging file NMLG0000.PUB.SYS.
