Neighbor Gateway Reachable Networks Worksheet Information
The following is a description of the information that needs to be
gathered for the worksheets that follow in this chapter. This
information is used in chapters 6, 7, and 8 for configuring nodes.
Neighbor Gateway Reachable Networks Worksheet Information
-----------------------------------------------------------------------------
| |
| Neighbor Gateway This is the IP address of the gateway specified on the |
| IP Internet Neighbor Gateways screen. The IP address is in the |
| Address same format as the LAN Configuration screen. An |
| example of an address is: |
| |
| C 192.007.007 001 |
| |
| IP network address The IP addresses of all the remote networks that can |
| be reached through the gateway whose IP address is |
| configured in the previous field. If the gateway node |
| is to serve as a default gateway, enter an at sign (@) |
| in one of these fields. |
| |
| IP mask The IP mask allows you to specify a subnet mask for |
| each reachable network. This is in the same format as |
| an IP address. This mask is optional. |
| |
| Hops This is the number of hops (full gateways) that a |
| packet travels to reach a remote network from a local |
| network. Two partner gateway halves count as one hop. |
| |
-----------------------------------------------------------------------------

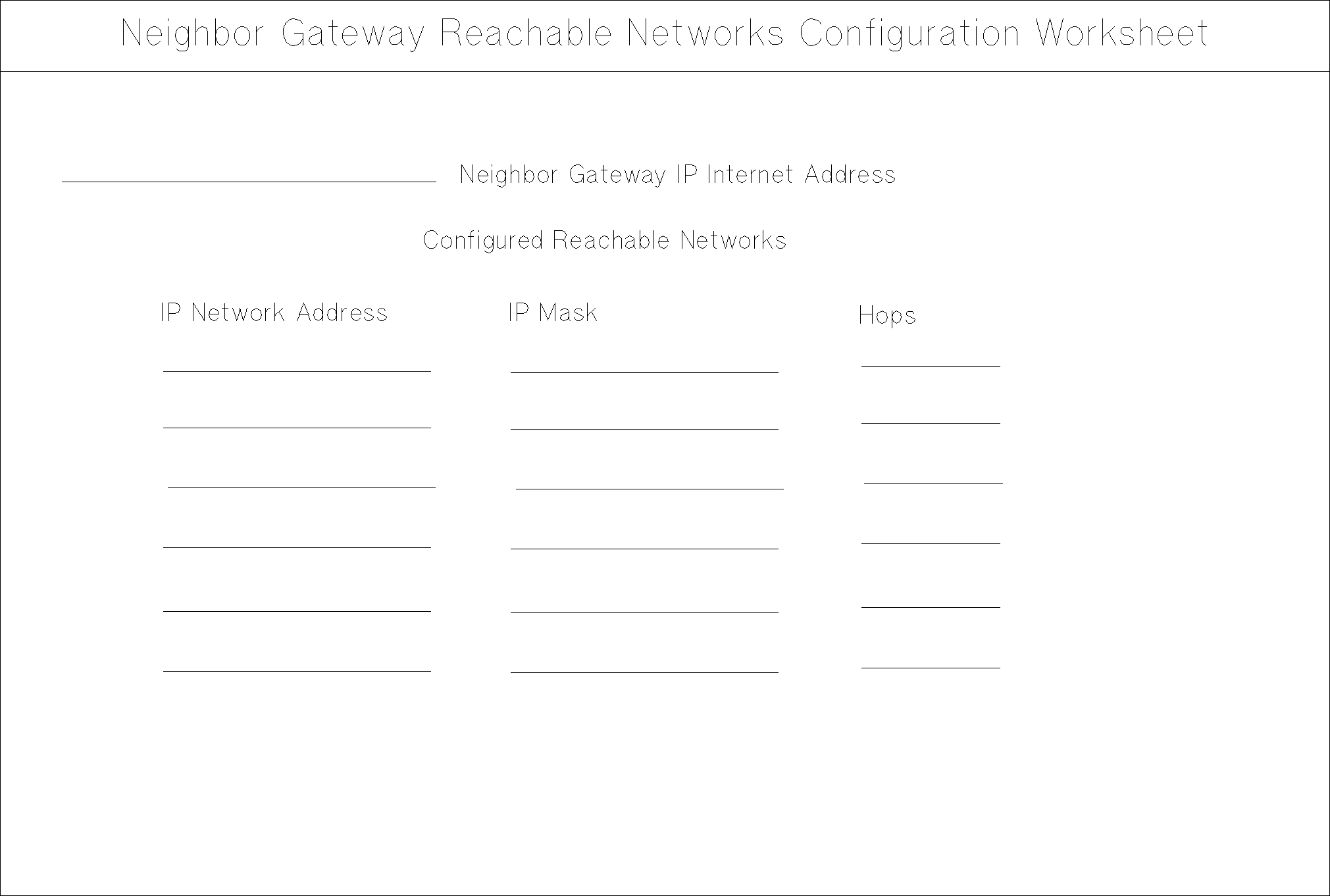

Neighbor Gateway Reachable Networks Configuration Worksheet
Fill out the following worksheet for each neighbor gateway reachable
network you are configuring.
![[]](../../pic3k/M013399/FFN173c50.gif)
Figure 4-8. Reachable Network Configuration
