Node Worksheet Information [ HP3000/iX Network Planning and Configuration Guide ] MPE/iX 5.0 Documentation
HP3000/iX Network Planning and Configuration Guide
Node Worksheet Information
The following is a description of the information that needs to be
gathered for the worksheets that are in this chapter. Check the
worksheets to see which is the appropriate information to gather. This
information is used in configuration chapters 6, 7, and 8.
Configuration Worksheet Information
--------------------------------------------------------------------------------
| | | |
| Field | Screen | Description |
| | | |
--------------------------------------------------------------------------------
| | | |
| Address key | X.25 Virtual Circuit | In the network directory, the |
| | Configuration | name of each node listed in the |
| | | remote node name field. HP |
| | | recommends that you use the node |
| | | portion of the remote node's |
| | | node name as the address key. |
| | | |
| Card number | X.25 Configuration | Slot number of the DTC/X.25 |
| | | Network Access card. |
| | | |
| DTC node name | X.25 Configuration | Node name of the DTC in the form |
| | | node.domain.organization. Must |
| | | agree with node name configured |
| | | through during configuration of |
| | | the datacommunications and |
| | | terminal subsystem (DTS). The |
| | | node name must be entered for |
| | | each DTC/X.25 network access |
| | | card that allows |
| | | system-to-system connections. |
| | | |
| Enable ethernet/ | LAN Configuration | Both ethernet and IEEE802.3 are |
| Enable IEEE802.3 | | enabled by default. You may |
| | | disable one or the other but not |
| | | both (one must be enabled). To |
| | | disable either ethernet or |
| | | IEEE802.3, enter an N (no) in |
| | | the field next to the enable |
| | | question. |
| | | |
| Facility set | X.25 Virtual Circuit | For SVCs only. A name for a |
| | Configuration | collection of X.25 connection |
| | | parameters in the network |
| | | directory. Use the default |
| | | (STDSFSET) or enter a different |
| | | name, then go to Facility sets |
| | | to define parameters. It must |
| | | match the parameters specified |
| | | by your network subscription. |
| | | |
--------------------------------------------------------------------------------
Configuration Worksheet Information (cont)
--------------------------------------------------------------------------------
| | | |
| Field | Screen | Description |
| | | |
--------------------------------------------------------------------------------
| | | |
| IP address | LAN Configuration; | The internet protocol (IP) |
| | FDDI Configuration; | address is an address of a node |
| | Token Ring | on a network. |
| | Configuration; | |
| | Point-to-Point | There are two methods of |
| | Configuration; X.25 | entering an internet protocol |
| | Configuration | (IP) address within NMMGR: |
| | | |
| | | |
| | | 1. Enter the fully qualified |
| | | IP address (for example, |
| | | Class C, C 192.191.191 |
| | | 009) |
| | | |
| | | OR |
| | | |
| | | 2. Enter only the network |
| | | (nnn) and node (xxx) |
| | | portions of the IP |
| | | address as four positive |
| | | integers between 0 and |
| | | 255 separated by periods |
| | | or blanks (for example, |
| | | 15.123.44.98). |
| | | |
| | | You need not enter the |
| | | following items as NMMGR |
| | | will fill these in: |
| | | |
| | | - Class A, B, C |
| | | |
| | | - Leading zeros for the |
| | | network and node portion |
| | | of the IP address. |
| | | |
| | | All nodes on the same network |
| | | must use the same class of IP |
| | | address. The network portion of |
| | | the address must be the same for |
| | | all nodes on the same network. |
| | | |
| IP subnet mask | LAN Configuration; | The IP subnet mask is optional. |
| | FDDI Configuration; | An IP subnet mask is specified |
| | Token Ring | in the same format as an IP |
| | Configuration; | address. The mask identifies |
| | Point-to-Point | which bits of an IP address will |
| | Configuration; X.25 | be used to define a subnetwork. |
| | Configuration | For more information refer, to |
| | | the configuration chapter for |
| | | the type of link you are |
| | | configuring. |
| | | |
--------------------------------------------------------------------------------
Configuration Worksheet Information (cont)
--------------------------------------------------------------------------------
| | | |
| Field | Screen | Description |
| | | |
--------------------------------------------------------------------------------
| | | |
| Link name | | The linkname represents a |
| | | hardware interface card. This |
| | | name must be unique to both the |
| | | node and the network. The link |
| | | name can have up to eight |
| | | alphanumeric characters and the |
| | | first character must be |
| | | alphabetic. |
| | | |
| (LAN Link name) | LAN Configuration | This represents the LAN card for |
| | | which you are configuring a |
| | | link. |
| | | |
| (FDDI Link name) | FDDI Configuration | This represents the FDDI card |
| | | for which you are configuring a |
| | | link. |
| | | |
| (Token Ring Link | Token Ring | This represents the token ring |
| name) | Configuration | card for which you are |
| | | configuring a link. |
| | | |
| (X.25 Link name) | X.25 Configuration | The name of the link used by |
| | | X.25 XL System Access. It must |
| | | match the link name configured |
| | | during configuration of the |
| | | datacommunications and terminal |
| | | subsystem (DTS). |
| | | |
| (Point-to-Point | Point-to-Point | This represents the PSI card for |
| Link name) | Configuration | which you are configuring a |
| | | link. |
| | | |
| Local node name | Main | The node name is the name by |
| | | which the Series 900 HP 3000 |
| | | computer is known in the |
| | | network. The format of a node |
| | | name is |
| | | nodename.domain.organization |
| | | where the total number of |
| | | characters is 50 or fewer, and |
| | | each field contains 16 or fewer |
| | | characters (alphanumeric, |
| | | underscore, or hyphens). The |
| | | first character of each field |
| | | must be alphabetic. |
| | | |
--------------------------------------------------------------------------------
Configuration Worksheet Information (cont)
--------------------------------------------------------------------------------
| | | |
| Field | Screen | Description |
| | | |
--------------------------------------------------------------------------------
| | | |
| Local domain name | NS Configuration | The name of the system in |
| | | ARPANET standard format. It is |
| | | composed of labels, with each |
| | | label separated by a period. |
| | | Labels must start with a letter |
| | | or digit and have as interior |
| | | characters only letters, digits, |
| | | hyphens(-), or underbars (_). |
| | | There may be any |
| | | |
| | | number of labels, but the total |
| | | length of the name, including |
| | | periods, is limited to 255 |
| | | characters. (If not using |
| | | domain names for network access, |
| | | leave the local node name in |
| | | this field.) |
| | | |
| Network directory | X.25 Virtual Circuit | The network directory name must |
| name | Configuration | be configured for each new node. |
| | | The network directory contains |
| | | information that one node needs |
| | | in order to communicate with |
| | | other nodes. The only network |
| | | directory name supported by HP |
| | | is NSDIR.NET.SYS. |
| | | |
| Network interface | LAN Configuration; | The network interface (NI) name |
| (NI) name | FDDI Configuration; | is used to easily identify a |
| | Token Ring | network interface. The name can |
| | Configuration; | be up to eight alphanumeric |
| | Point-to-Point | characters, starting with a |
| | Configuration; X.25 | letter. The maximum number of |
| | Configuration; X.25 | NIs that can be configured on a |
| | Virtual Circuit | node is 12. If a node |
| | Configuration | interfaces to more than one |
| | | network, give each NI on that |
| | | node a unique name. You will |
| | | use the NI name with the |
| | | NETCONTROL command to start the |
| | | transport and network link. |
| | | |
| Permanent VC | X.25 Virtual Circuit | For PVCs only. In the network |
| number | Configuration | directory, the number of the |
| | | permanent virtual circuit on the |
| | | remote node. |
| | | |
| Physical path | Point-to-Point | This is the location of the |
| | Configuration | programmable serial interface. |
| | | Refer to the system |
| | | documentation for your HP 3000 |
| | | model to find the physical path |
| | | of the programmable serial |
| | | interface (PSI) card. |
| | | |
--------------------------------------------------------------------------------
Configuration Worksheet Information (cont)
--------------------------------------------------------------------------------
| | | |
| Field | Screen | Description |
| | | |
--------------------------------------------------------------------------------
| | | |
| Physical path of | LAN Configuration | This is the location of the |
| LANIC | | LANIC device adapter card. Run |
| | | IOMAP utility to determine the |
| | | physical path for the LAN |
| | | adapter. Refer to the system |
| | | documentation for your HP 3000 |
| | | model for further details |
| | | regarding physical path. |
| | | |
| Physical path of | FDDI Configuration | This is the location of the FDDI |
| device adapter | | device adapter card. Run IOMAP |
| | | utility to determine the |
| | | physical path for the FDDI |
| | | adapter. Refer to the system |
| | | documentation for your HP 3000 |
| | | model for further details |
| | | regarding the physical path. |
| | | |
| Physical path of | Token Ring | This is the location of the |
| token ring device | Configuration | token ring device adapter card. |
| adapter | | Run IOMAP utility to determine |
| | | the physical path for the token |
| | | ring adapter. Refer to the |
| | | system documentation for your HP |
| | | 3000 model for further details |
| | | regarding physical path. |
| | | |
| Proxy node | LAN Configuration | The proxy field is optional. |
| | | Enter Y (yes) only if your |
| | | network has internetworks |
| | | (networks with gateways) or |
| | | non-HP nodes. Establishing a |
| | | proxy node is a way of placing |
| | | node name and address mapping |
| | | information in a single |
| | | location. For more information, |
| | | see the configuration chapter |
| | | for LAN link. |
| | | |
| Remote IP address | X.25 Virtual Circuit | In the network directory, the IP |
| | Configuration | address of each node listed in |
| | | the remote node name field. |
| | | |
| Remote node name | X.25 Virtual Circuit | In the network directory, the |
| | Configuration | name of each remote X.25 node on |
| | | the network. |
| | | |
| Remote X.25 | X.25 Virtual Circuit | For SVCs only. In the network |
| address | Configuration | directory, the X.25 address of |
| | | the remote host for X.25 public |
| | | data networks or private |
| | | networks. |
| | | |
--------------------------------------------------------------------------------
Configuration Worksheet Information (cont)
--------------------------------------------------------------------------------
| | | |
| Field | Screen | Description |
| | | |
--------------------------------------------------------------------------------
| | | |
| Security class | X.25 Virtual Circuit | For SVCs only. In the network |
| | Configuration | directory, the security to be |
| | | applied for connection |
| | | establishment with the remote |
| | | node. |
| | | |
| Speed | Point-to-Point | The line transmission speed is |
| | Configuration | given in bits per second. For |
| | | direct connect the value must be |
| | | supported by the cable. Values |
| | | are 1200, 2400, 4800, 9600, |
| | | 19200, 38400, 56000, and 64000. |
| | | The default is 56000. |
| | | |
| Type | Point-to-Point | Enter DD (direct dial) if you |
| | Configuration | always want to call the same |
| | | host over a dial link. If you |
| | | choose DD the remote host does |
| | | not have to be adjacent and |
| | | other nodes can be accessed |
| | | through the remote host. Enter |
| | | SD if you want to call more than |
| | | one adjacent remote node over a |
| | | dial link without reconfiguring. |
| | | If you choose SD, no other |
| | | remote nodes can be accessed |
| | | through the remote host; it is |
| | | an end point in the connection. |
| | | Enter DC if the link is a leased |
| | | line, private line, or other |
| | | non-switched link. |
| | | |
--------------------------------------------------------------------------------

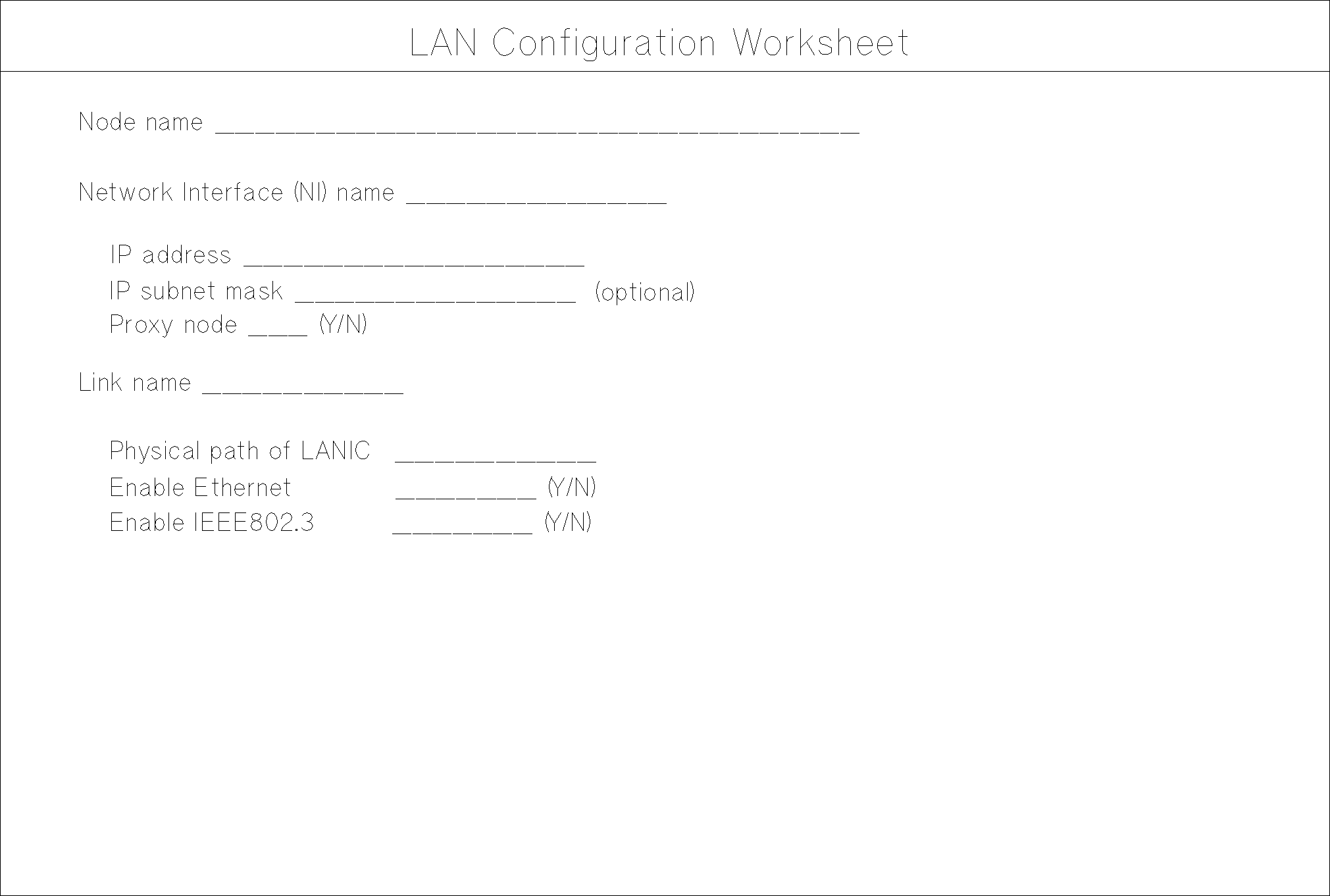

LAN Configuration Worksheet
Fill out the following worksheet for each LAN link you are configuring.
Figure 4-1. LAN Configuration

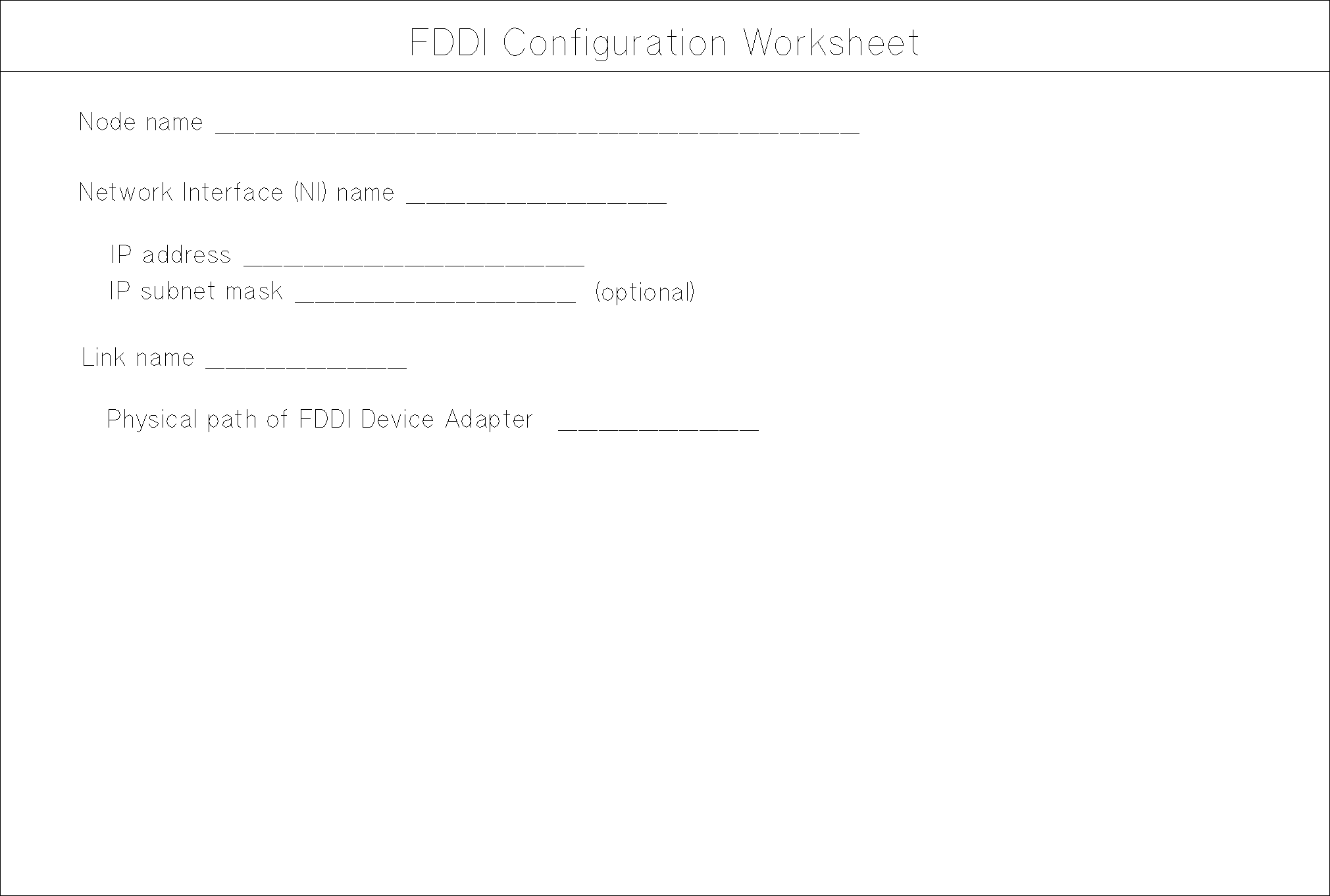

FDDI Configuration Worksheet
Fill out the following worksheet for each FDDI link you are configuring.
Figure 4-2. FDDI Configuration
Token Ring Configuration Worksheet
Fill out the following worksheet for each token ring link you are
configuring.

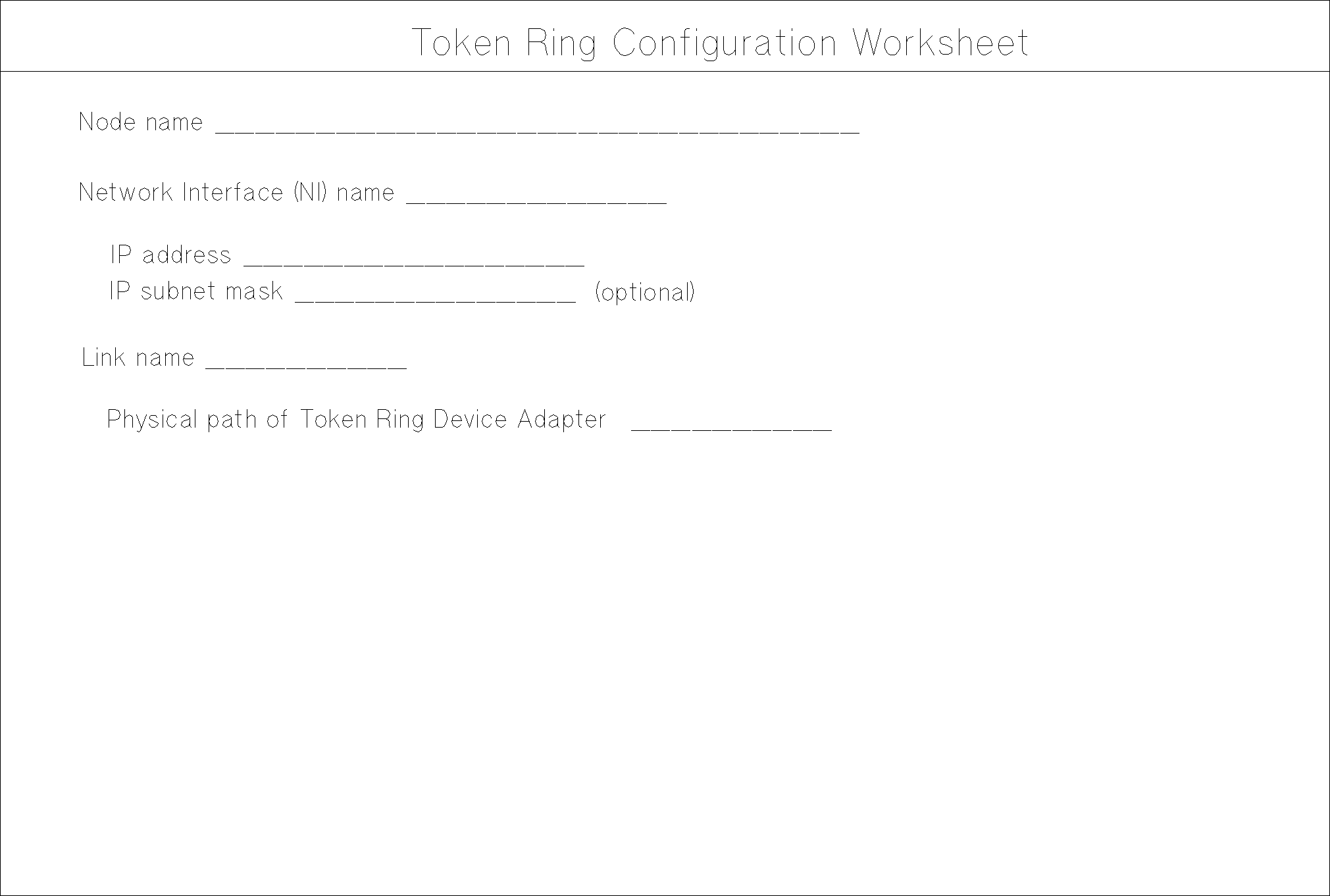

Figure 4-3. Token Ring Configuration
Point-to-Point Configuration Worksheet
Fill out the following worksheet for each Point-to-Point link you are
configuring.

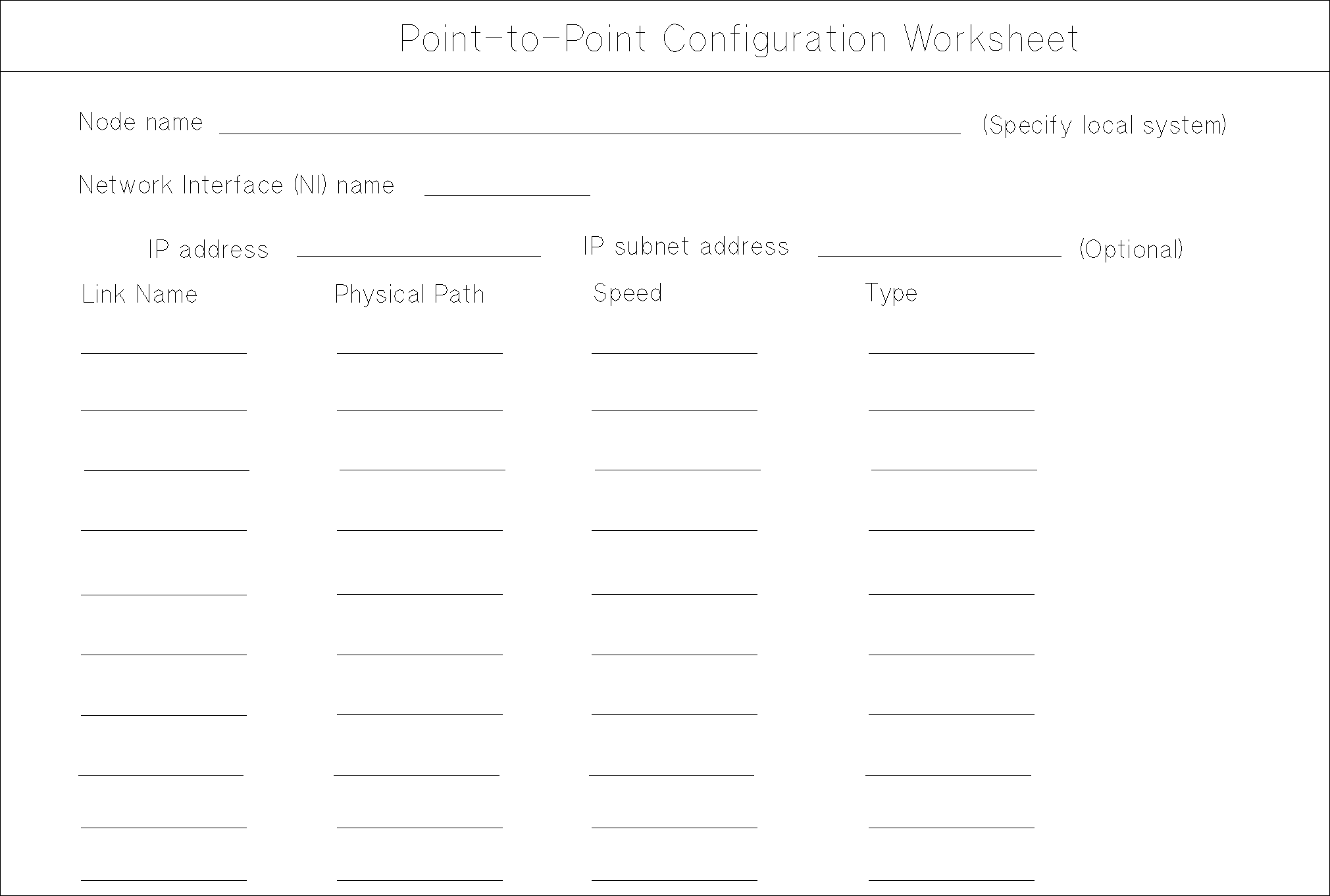

Figure 4-4. Point-to-Point Configuration
X.25 Configuration Worksheet
Fill out the following worksheet for each X.25 link you are configuring.

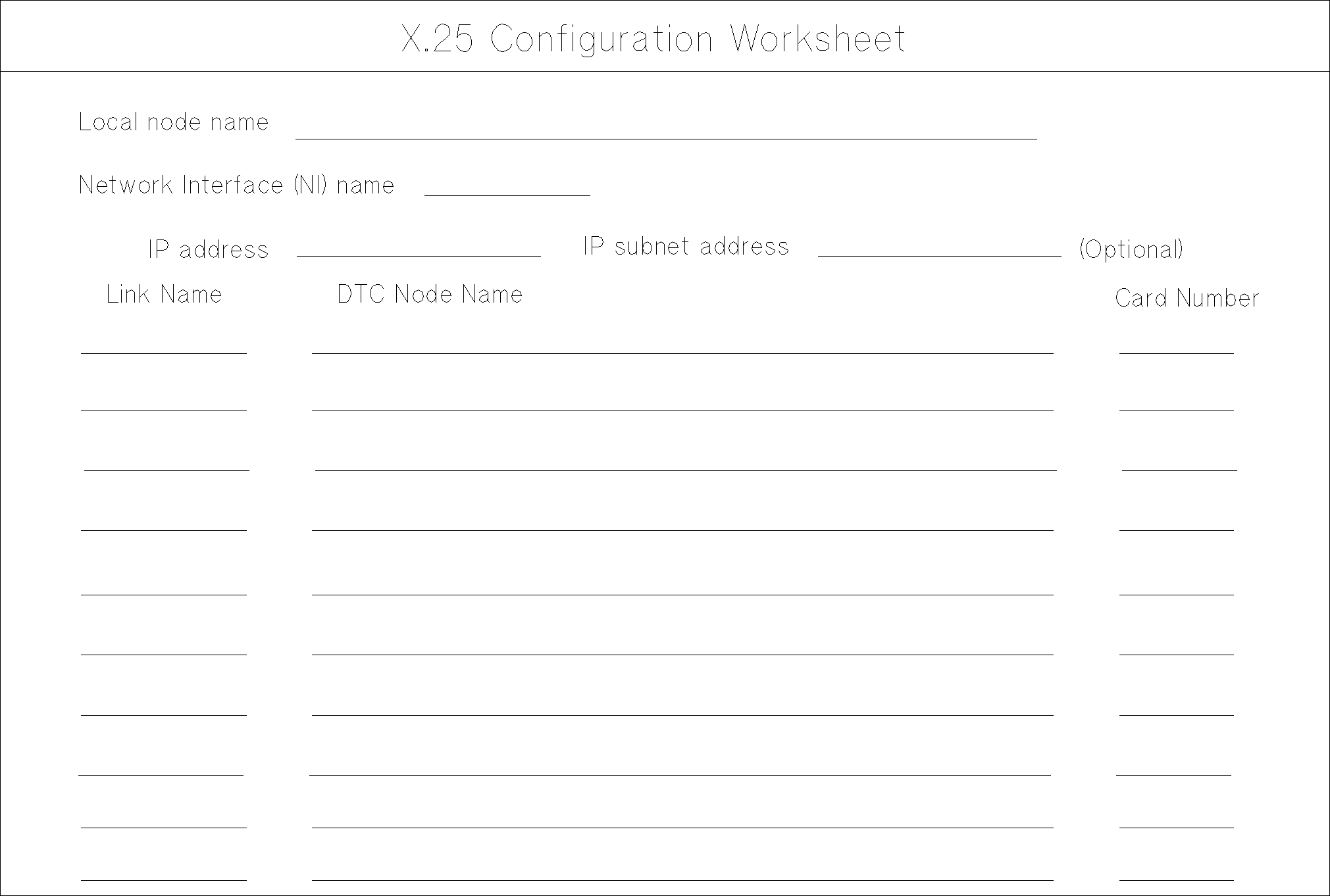

Figure 4-5. X.25 Configuration
X.25 Virtual Circuit Configuration Worksheet
Fill out the following worksheet for each X.25 Virtual Circuit you are
configuring.

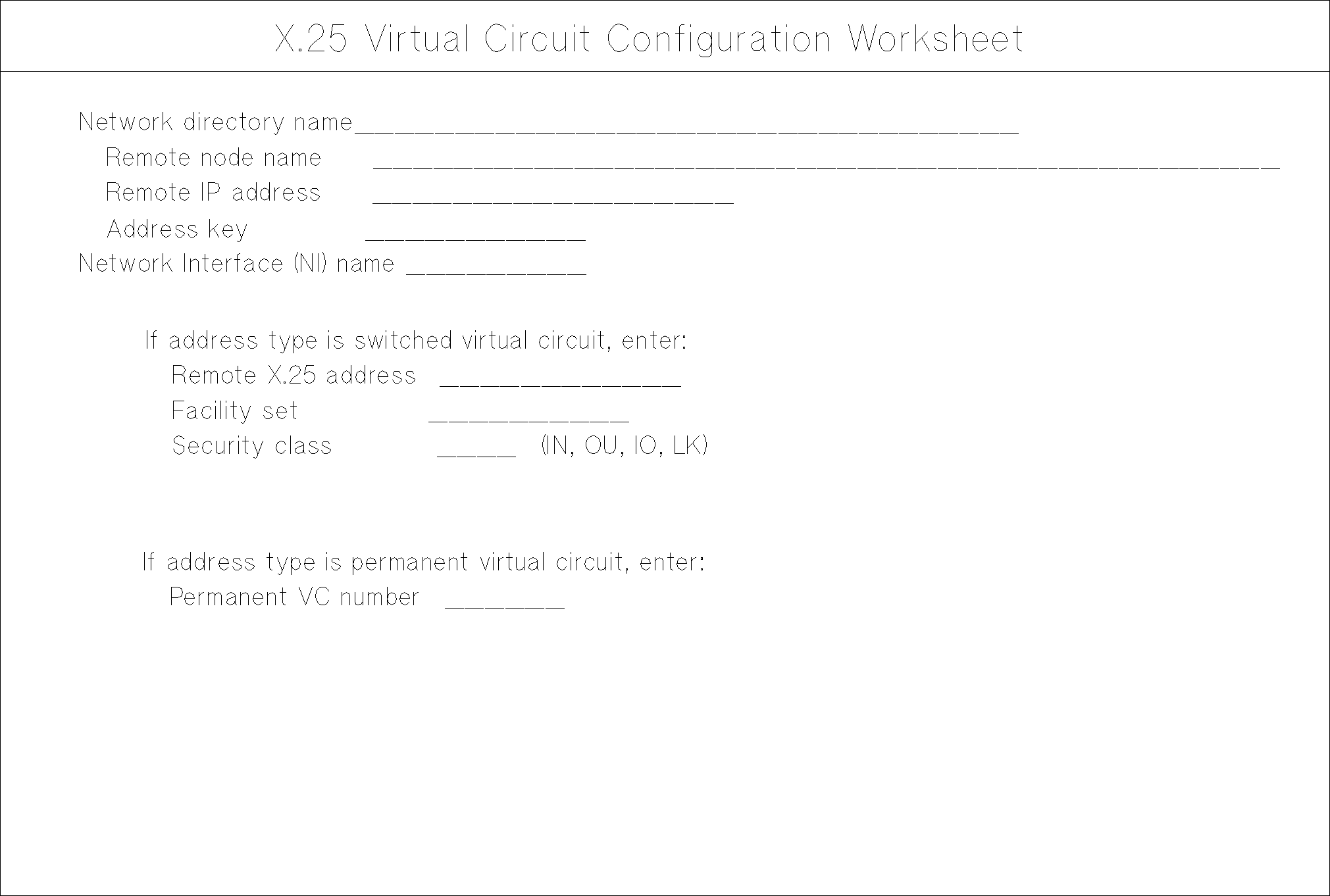

Figure 4-6. X.25 Virtual Circuit Configuration
MPE/iX 5.0 Documentation
