HP3000/iX Network Planning and Configuration Guide

HP3000/iX Network Planning and Configuration Guide


(c) Copyright 1991, 1992, 1994 Hewlett-Packard Company.
Edition Edition 3
E0494
Printed April 1994

Notice

Hewlett-Packard makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.  Hewlett-Packard
shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or
use of this material.

This document contains proprietary information which is protected by
copyright.  All rights are reserved.  No part of this document may be
photocopied, reproduced, or translated to another language without the
prior written consent of Hewlett-Packard Company.  The information
contained in this document is subject to change without notice.

RESTRICTED RIGHTS LEGEND

Use, duplication or disclosure by the U.S. Government is subject to
restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause at DFARS 252.227-7013.
Rights for non-DOD U.S. Government Departments and Agencies are as set
forth in FAR 52.227-19(c)(1,2).

       Information Networks Division
       19420 Homestead Road
       Cupertino, CA 95014

Printing History

New editions are complete revisions of the manual.  Updates, which are
issued between editions, contain additional and replacement pages to be
merged into the manual.  The dates on the title page change only when a
new edition or a new update is published.

                   Edition 3 .  .  .  .  .  .  .  .  .  . April 1994
                             .  .  .  .  .  .  .  .  .  .
                             .  .  .  .  .  .

New Product and Enhancements In This Network Planning and Configuration
Guide

The following is a list of new network product and major enhancements for
MPE/iX Release 5.0.

New Product

   *   Fiber Distributed Data Interface (FDDI) 3000/iX Network Link
       (J2245A) provides HP 3000 Series 900 HP-IB systems with a fiber
       optic single-attach station (SAS) connection to the 100 Mb/s dual
       counter-rotating ring network through a third-party FDDI
       concentrator meeting the ISO 9314 FDDI standards.  One FDDI link
       is supported per system.

Product Enhancements

   *   Additional LAN support added to allow up to two active LAN's per
       system.  This functionality applies to 802.3 and has no effect on
       FDDI or Token Ring.

   *   Increased number of supported phone numbers per NI Router Mapping,
       from 256 to 1024.

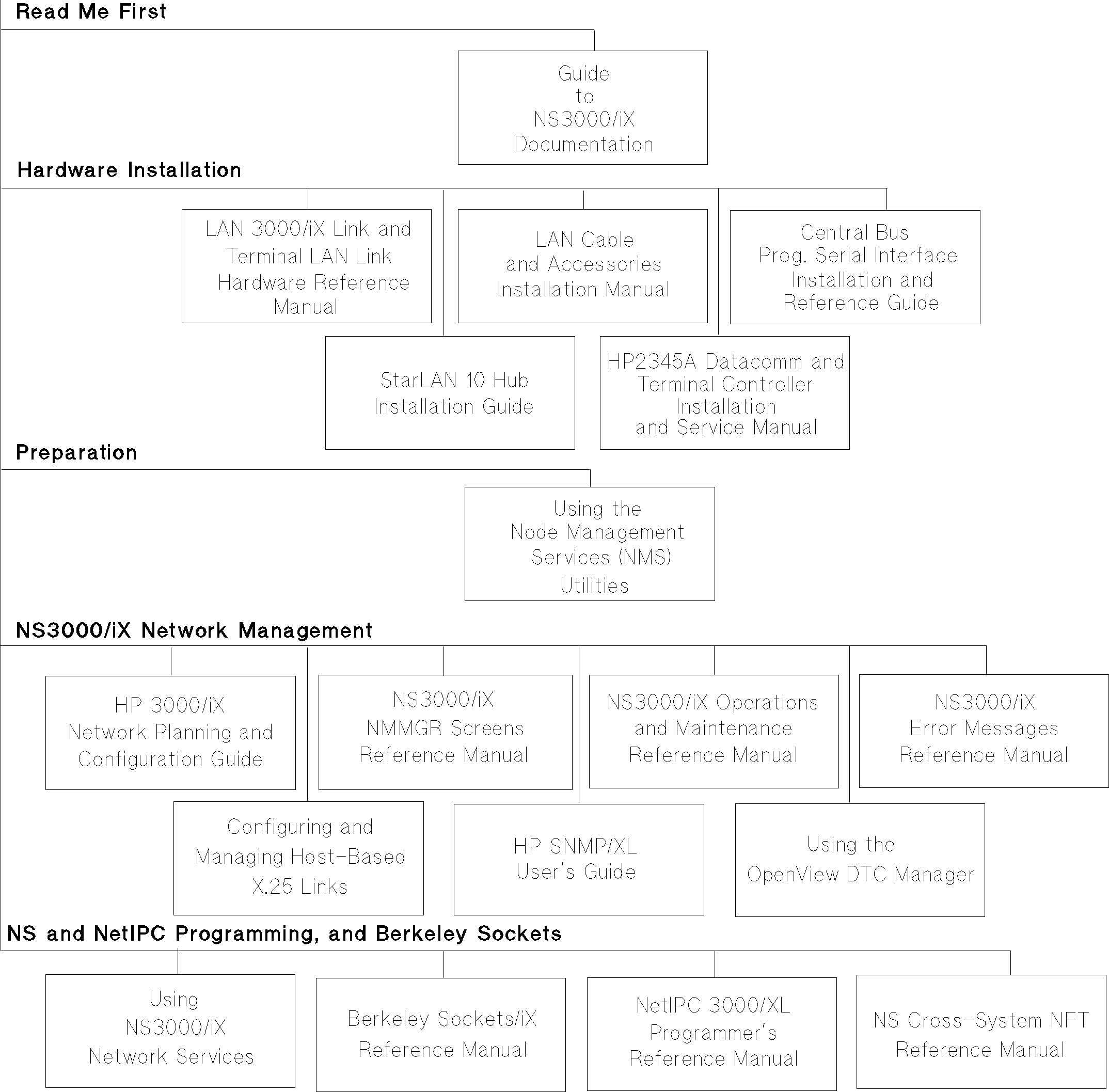

Documentation Map

The following documentation map is intended to be a general guideline to
the manuals containing information related to the product described in
this manual.  You may need information from one or all the manuals listed
here.




Preface

This manual documents functionality delivered with the MPE/iX 5.0
release, as well as later releases, for 900 Series HP 3000 systems.  It
describes the concepts and terminology needed to design an NS3000/iX
network and to plan the configuration process for that network.  It also
provides step-by-step instructions to assist you in configuring the
network links for 900 Series HP 3000 systems.

Audience

This manual is intended for network managers and planners who are
responsible for setting up and configururing a communications network.

To make the best use of this guide, you should be familiar with basic MPE
commands as well as with the NS3000/iX product.

You should also be familiar with NMMGR, the tool used to configure
network connections.  If not, refer to Using the Node Management Services
(NMS) Utilities for information.

Special Note

MPE/iX, Multiprogramming Executive with Integrated POSIX, is the latest
in a series of forward-compatible operating systrems for the HP 3000 line
of computers.

In HP documentation and in talking with HP 3000 users, you will encounter
references to MPE XL, the direct predecessor of MPE/iX. MPE/iX is a
superset of MPE XL. All programs written for MPE XL will run without
change under MPE/iX. You can continue to use MPE XL system documentation,
although it may not refer to features added to the operating system to
support POSIX (for example, hierarchical directories).

Finally, you may encounter references to MPE V, which is the operating
system for HP 3000s, not based on the PA_RISC architecture.  MPE V
software can be run on the PA_RISC (Series 900) HP 3000s in what is known
as compatibility mode.

Organization of This Manual

Chapter 1, Network Configuration Overview, provides information you
should know before you begin configuration.

Chapter 2, Networking Concepts, describes networking concepts and
provides information you need to know to plan your configuration.

Chapter 3, Planning Your Network, will help you draw your network map and
fill out network worksheets as you plan your network, internetwork,
gateway, and network directory configuration.

Chapter 4, Planning for Node Configuration, describes how to fill out
node worksheets before you start configuring network links for each node.
It includes a table listing the parameters that you will need to enter
during NMMGR guided configuration.

Chapter 5, Introductory Screens, provides step-by-step instructions for
configuring NMMGR introductory screens.

Chapter 6, Configuring a LAN, Token Ring, FDDI Node, provides
step-by-step instructions for configuring IEEE802.3/Ethernet LAN, token
ring, and Fiber Distributed Data Interface (FDDI) links.

Chapter 7, Configuring a Point-to-Point Node, provides step-by-step
instructions for configuring Point-to-Point (router) links.

Chapter 8, Configuring an X.25 Node, provides step-by-step instructions
for configuring X.25 links.

Chapter 9, Configuring a Gateway Half, provides step-by-step instructions
for configuring the interface between two gateway halves.

Chapter 10, Validating the Network Transport and Cross-Validating with
SYSGEN, provides step-by-step instructions for validating the network
transport and cross-validating with SYSGEN.

Chapter 11, Configuring the Network Directory, provides step-by-step
instructions for configuring a network directory.

Chapter 12, Configuring Domain Name Files, provides instructions for
configuring the domain name resolver.

Chapter 13, Configuring Logging, provides step-by-step instructions for
configuring logging.

Chapter 14, Operating the Network, shows you how to bring up and shut
down NS3000 links and services.

Appendix A, MPE/V to MPE/iX Migration, provides general MPE/V to MPE/iX
migration information.

Appendix B, NS X.25 Migration:  NS3000/XL Releases 1.0, 1.1, or 1.2 to
NS3000/iX Release 2.0 or Later, provides X.25-specific information on
migration from NS3000/XL releases 1.0, 1.1, and 1.2 to NS3000/iX release
2.0 or later.

Appendix C, NS X.25 Migration:  NS3000/V to NS3000/iX Release 2.0 or
Later, provides X.25-specific information on migration from a node
running NS X.25 3000/V Link to a node that will be running NS3000/iX
release 2.0 or later.  Appendix C does not apply if an MPE V-based node
is being used as an X.25 server for NS3000/XL-based machines.

Appendix D, NS X.25 Migration:  NS3000/V and NS3000/XL Release 1.X to iX
Release 2.0 or Later, provides X.25-specific information on migration
from any MPE V-based node acting as an X.25 server for NS3000/XL-based
machines (including the NS X.25 3000/XL Server product) to an NS3000/iX
node that will be running release 2.0 or later.

Appendix E, NS X.25 Migration:  NS3000/V PAD Access to NS3000/iX Release
2.0 or Later, tells how to migrate NS3000/V versions of PAD access to
NS3000/iX release 2.0 or later.

Related Publications

The following manuals are referenced in this manual or may be of use to
you as you plan and configure your network.

Networking

Using the Node Management Services (NMS) Utilities (32022-90041)

Configuring and Managing Host-Based X.25 Links (36939-61004)

Managing Host-Based X.25 Links Quick Reference Card (36939-61003)

NS3000/iX NMMGR Screens Reference Manual (36922-90034)

NS3000/iX Operations and Maintenance Reference Manual (36922-90035)

NS3000/iX Error Messages Reference Manual (36923-90021)

NetIPC 3000/XL Programmer's Reference Manual (36920-61005)

Berkeley Sockets/iX Reference Manual (32650-90372)

NS Cross-System Network Manager's Reference Manual (36920-61004)

Using NS3000/iX Network Services (36920-90008)

NS Cross-System NFT Reference Manual (36920-61003)

Datacommunications and Terminal Subsystem

Configuring Systems for Terminals, Printers, and Other Serial Devices
(32022-61000)

Troubleshooting Terminal, Printer, and Serial Device Connections
(32022-61002)

Using the OpenView DTC Manager (D2355-90001)

General Information

System Startup, Configuration, and Shutdown Reference Manual
(32650-90042)

MPE/iX Commands Reference Manual Kit (32650-60115)

MPE/iX 5.0 Documentation
