HP DeskManager User Reference Guide

Starting HP Desk

HP Desk consists of twelve numbered areas.  These areas are named after
equivalent areas of your own office desk.  For example, in HP Desk there
is an In Tray, an Out Tray and a Filing Cabinet.  These areas have
related numbers.  The area name or number can be used as a command when
you are working in HP Desk.

Area Number      HP Desk Area

1                In Tray

2                Out Tray

3                Pending Tray

4                Work Area

5                List Area

6                Filing Cabinet

7                Calendar (Diary)

8                Signoff (Leave HP Desk)

9                Signon Again

10               Administration

11               Applications

12               Library (if HP File/Library is installed on your system)

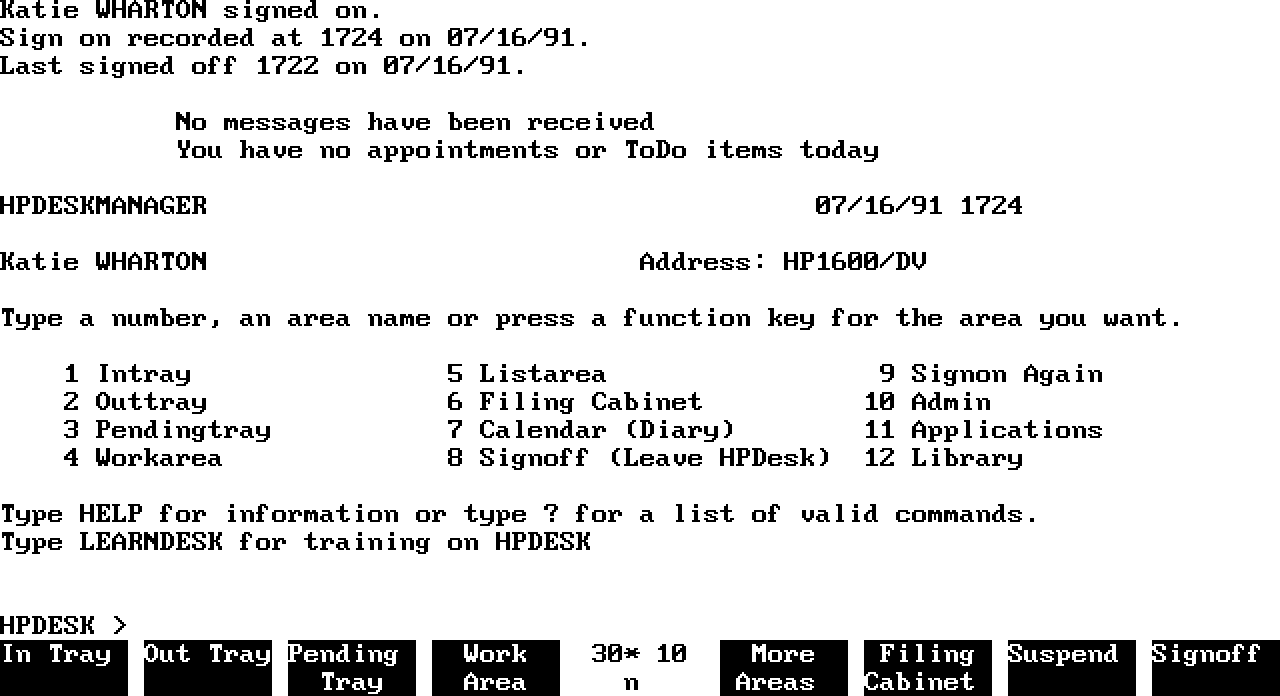

          The Main Menu Screen

To sign on:

   1.  Log on to the HP 3000, and at the colon prompt (:)  type:

            HPDESK Return

   2.  HP Desk asks for your name.  Type your name and press Return

       If you change your mind and want to return to the HP 3000 colon
       prompt type:  // Return

       You may have a password set up.  If so, HP Desk asks you to type
       this in.

       HP Desk then displays the main menu.

To sign on:  a shortcut

A quicker way of signing on is to enter all the information that HP Desk
prompts you for on one line.

   1.  At the HP 3000 colon prompt enter HPDESK, the HP Desk area you
       want and your name.  For example:

            :HPDESK 1 WHARTON Return

   2.  HP Desk will then prompt you to enter your password.

   3.  When you have entered your password HP Desk takes you straight
       into the area you requested.
